Part Number # HBL430P12W
SKU # 2307024
Image provided may only be a representation of
final product and may include optional equipment
HBL430P12W

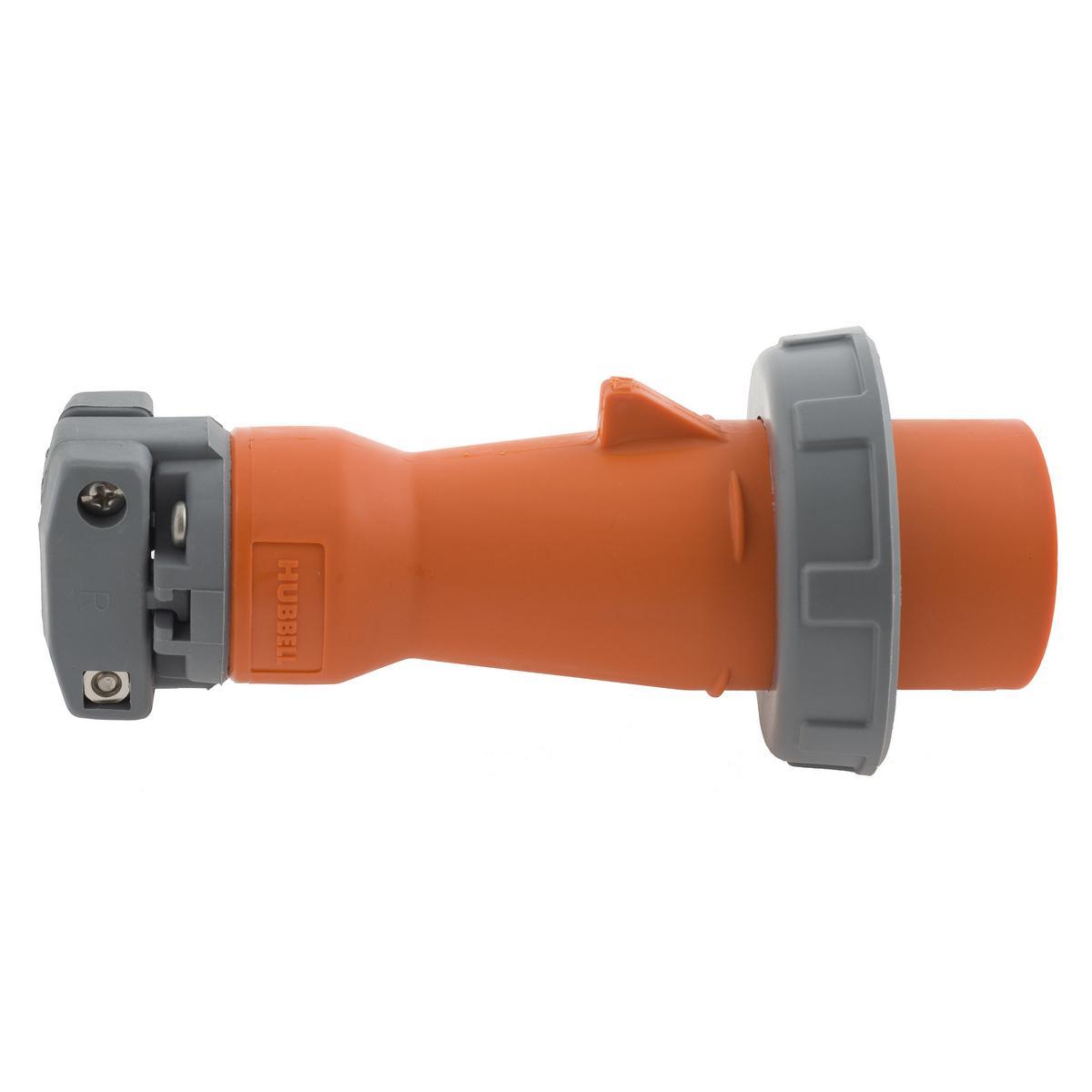

Hubbell HBL430P12W Pin and Sleeve Plug
Part Number # HBL430P12W
SKU # 2307024
Hubbell HBL430P12W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL430P12W |
| SKU #: | 2307024 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 3.74 in Dia x 8.05 in L |
| Enclosure: | IP67 |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | 1-Phase Grounding Male Non-NEMA Portable Watertight Standard, 1-Phase Grounding Male Non-NEMA Portable Watertight Standard Cord Mount |
| Country of origin: | PR, US |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585404561 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL430P12W Pin and Sleeve Plug
Brand: Hubbell
Part Number: HBL430P12W
Wiring Device-Kellems Pin and Sleeve Plug, 1-Phase Grounding Male Non-NEMA Portable Watertight Standard Cord Mount, 125/250 VAC, 30 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Orange, 3.74 in Dia x 8.05 in L
Additional Description: HUBW-HBL430P12W PS, IEC, PLUG, 3P4W, 30A 125/250V,4X/69K W/T
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 30A 125/250V, 3-Pole 4-Wire Grounding, Terminal Screws, Orange, Watertight
HBL430P12W Application
High Ampacity Connections ApplicationsHBL430P12W Item Features
- Solid one-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal
- Heavy duty external cord grips
HBL430P12W Standards
UL 498|UL 1682|UL 1686C2 File No. E146033|IEC 309-1/309-2|CSA File No. LR280C|RoHS CompliantSKU #2307024Part Number #HBL430P12WUNSPSC39121402UPC00783585404561
