Brand: Hubbell

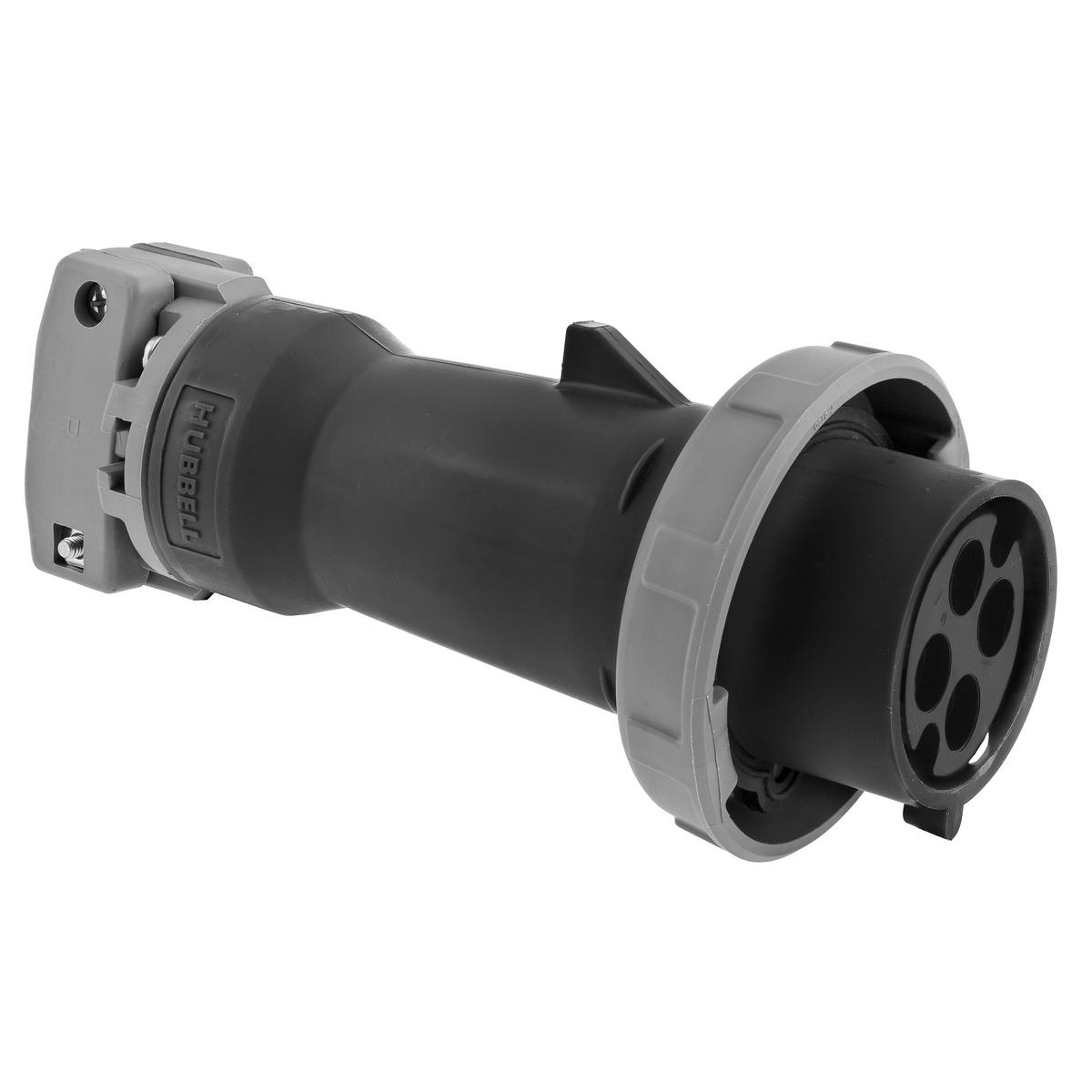

Hubbell HBL430P5WR Mating Plug
Image Disclaimers Message
Brand: Hubbell
Hubbell HBL430P5WR Mating Plug
Brand: Hubbell
Hubbell HBL430P5WR Mating Plug
Part #:HBL430P5WR
SKU #: 2207244
$345.71/EA
Key Features
Part #:HBL430P5WR
SKU #: 2207244
Brand: Hubbell
Amperage Rating: 30, 30 A
Dimensions: 3.74 in Dia x 8.05 in L
Enclosure: IP67
NEMA Rating: 4X/12, NEMA 4X/12
Number of Poles: 3
$345.71/EA
- On piece brass contact sleeves
- Sequential contact engagement to prevent a momentary over voltage on components
- Super tough insulated non-metallic house for impact and chemical resistance
- Nickel plated brass clamp nut
- Stainless steel terminal screws, assembly screws, cord clamp screws
- High impact thermoset contact carrier and retainer
- Rynite SST35 cord clamps
- Gasketed sealing ring provides watertight seal
Specifications
Brand: Hubbell
Amperage Rating: 30, 30 A
Dimensions: 3.74 in Dia x 8.05 in L
Enclosure: IP67
NEMA Rating: 4X/12, NEMA 4X/12
Number of Poles: 3
Number of Wires: 4
Series: HBL
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Pressure Screw
Type: 3-Phase Grounding Heavy Duty Male Non-NEMA Portable Reverse Standard Watertight, 3-Phase Grounding Heavy Duty Male Non-NEMA Portable Reverse Standard Watertight Cord Mount
Voltage Rating: 600, 600 VAC
Color: Black
Country of origin: US
Material: Composite
Manufacturer Name: Hubbell
UNSPSC: 39121402
UPC: 00783585012698
Item FeaturesHigh Ampacity Connections Applications
Item Features
Item FeaturesRoHS Compliant|UL File No. E146032|CSA C22.2 File No. 182.1|IEC 60309-1|UL 498|LR280C/LR285C|IEC 309-1/309-2|E146032/E146033/1682/1686C2
