Part Number # HBL430P7WR
SKU # 1061840

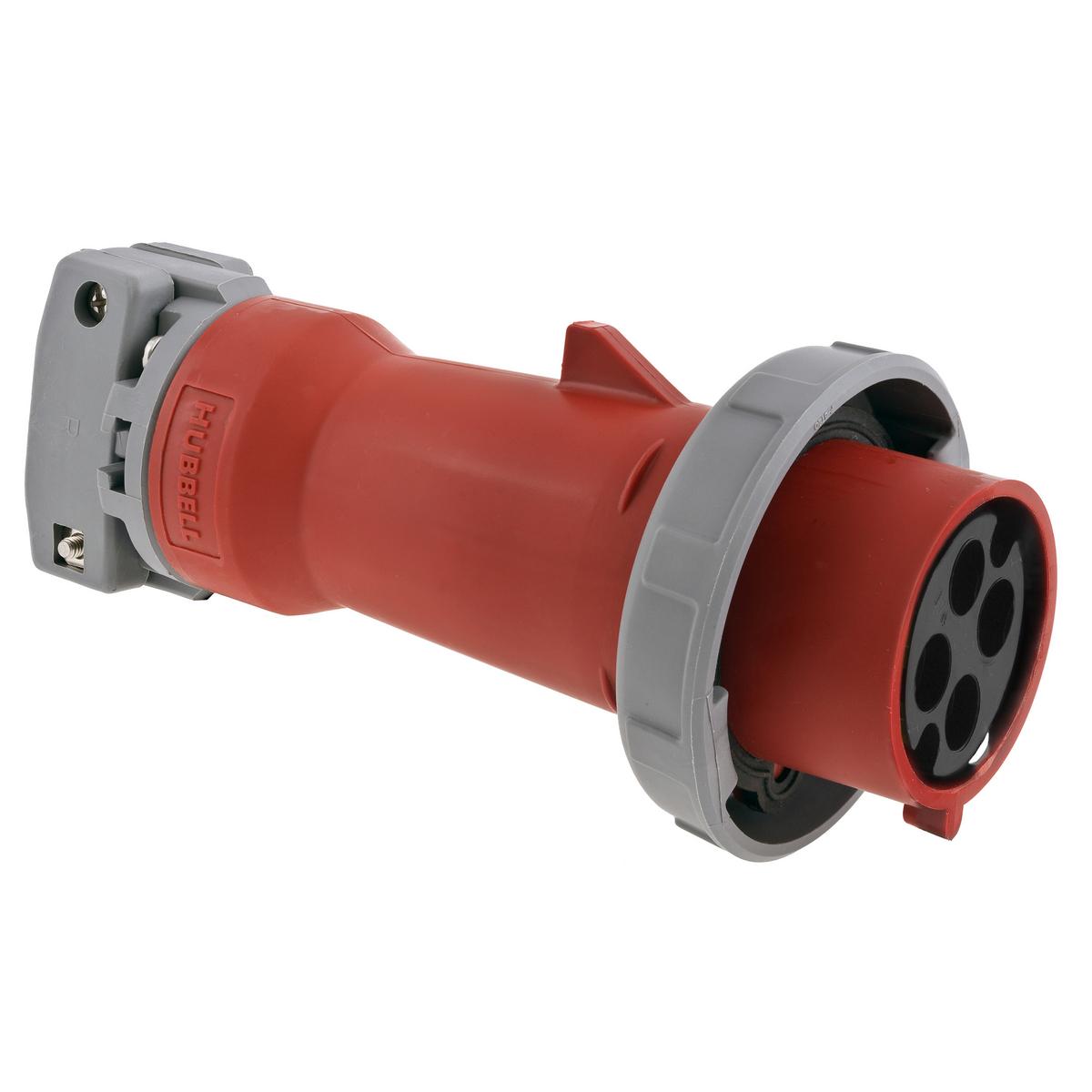

Image provided may only be a representation of
final product and may include optional equipment
HBL430P7WR
Hubbell HBL430P7WR Mating Plug
Part Number # HBL430P7WR
SKU # 1061840
Hubbell HBL430P7WR Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL430P7WR |
| SKU #: | 1061840 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 3.74 in Dia x 8.05 in L |
| Enclosure: | IP67 |
| NEMA Rating: | 4X/12, NEMA 4X/12 |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Series: | HBL |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | 3-Phase Grounding Heavy Duty Male Non-NEMA Portable Reverse Standard Watertight, 3-Phase Grounding Heavy Duty Male Non-NEMA Portable Reverse Standard Watertight Cord Mount |
| Country of origin: | PR, US |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585012704 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL430P7WR Mating Plug
Brand: Hubbell
Part Number: HBL430P7WR
Wiring Device-Kellems Circuit-Lock Mating Plug, 3-Phase Grounding Heavy Duty Male Non-NEMA Portable Reverse Standard Watertight Cord Mount, 480 VAC, 30 A, 3 Pole, 4 Wires, 4X/12 NEMA Rating, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Red, 3.74 in Dia x 8.05 in L
Additional Description: HUBW-HBL430P7WR PS, IEC, PLUG, 3P4W, 30A 3P 480V, REV PLUG REVERSE SERVICE
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Red, Watertight- Reversed Service
HBL430P7WR Application
High Ampacity Connections ApplicationsHBL430P7WR Item Features
- Gasketed sealing ring provides watertight seal
HBL430P7WR Standards
RoHS Compliant|CSA C22.2 File No. 182.1|IEC 60309-1|UL LR280C/LR285C|IEC 309-1/309-2|UL 498/1682/1686C2 File No. E146032/E146033SKU #1061840Part Number #HBL430P7WRUNSPSC39121402UPC00783585012704
