Brand: Hubbell

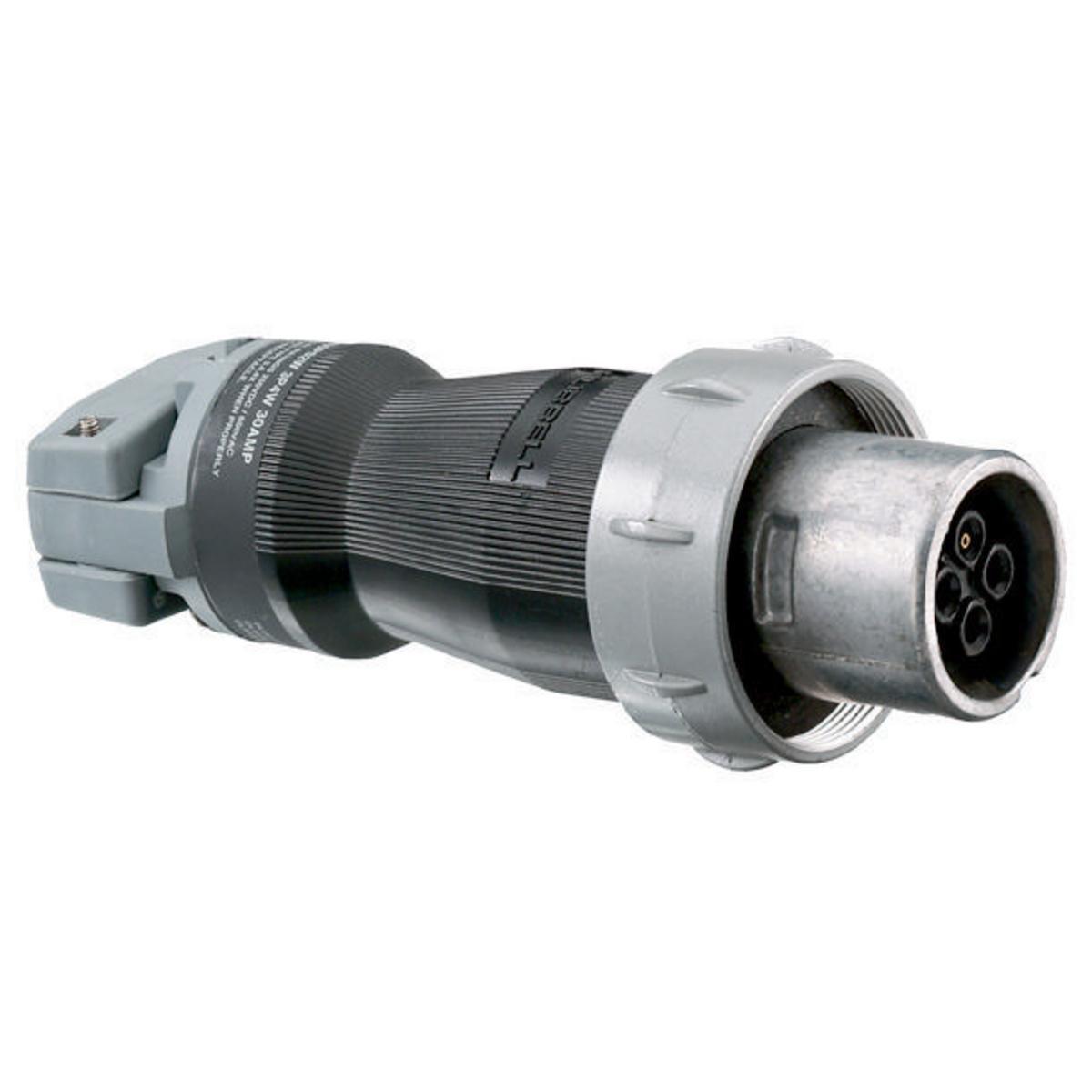

Hubbell HBL430PS2WR Pin and Sleeve Plug
Image Disclaimers Message
Brand: Hubbell
Hubbell HBL430PS2WR Pin and Sleeve Plug
Brand: Hubbell
Hubbell HBL430PS2WR Pin and Sleeve Plug
Part #:HBL430PS2WR
SKU #: 2234337
$387.14/EA
Key Features
Part #:HBL430PS2WR
SKU #: 2234337
Brand: Hubbell
Amperage Rating: 30, 30 A
Dimensions: 3 in Dia x 7.54 in L
Frequency Rating: 50/400, 50/400 Hz
NEMA Rating: 4X, NEMA 4X
Number of Poles: 3
$387.14/EA
- Beryllium copper spring maintains high unit pressure on mating sleeves
- Locking ring provides UL type 4X watertight, dusttight seal
- Catalog number and rating visible while in use
- Pin chamber confines arcing within the interior chamber
- All-Brass sleeve contacts provide reliable electrical contact
- https://youtu.be/1DnPJu3QNw0
Specifications
Brand: Hubbell
Amperage Rating: 30, 30 A
Dimensions: 3 in Dia x 7.54 in L
Frequency Rating: 50/400, 50/400 Hz
NEMA Rating: 4X, NEMA 4X
Number of Poles: 3
Number of Wires: 4
Temperature Rating (Degrees F): -40, -40 deg C
Terminal Type: Pressure Screw
Type: Type 2 Grounding Heavy Duty Male Non-NEMA Portable Reverse Standard Watertight, Type 2 Grounding Heavy Duty Male Non-NEMA Portable Reverse Standard Watertight Cord Mount
Voltage Rating: 600 VAC, 250 VDC, 600 VAC/250 VDC
Color: Black/Gray
Country of origin: PR
Material: Composite
Manufacturer Name: Hubbell
UNSPSC: 39121402
UPC: 00783585012377
Item FeaturesHigh Ampacity Connections Applications
Item Features
Item FeaturesUL 50|UL 498|UL 1010|UL 1686|UL 1682|UL 94 V-0 Flammability Rating|CSA C22.2 File No. 15/17/182.1
