Part Number # HBL430R12W
SKU # 2288178
HBL430R12W

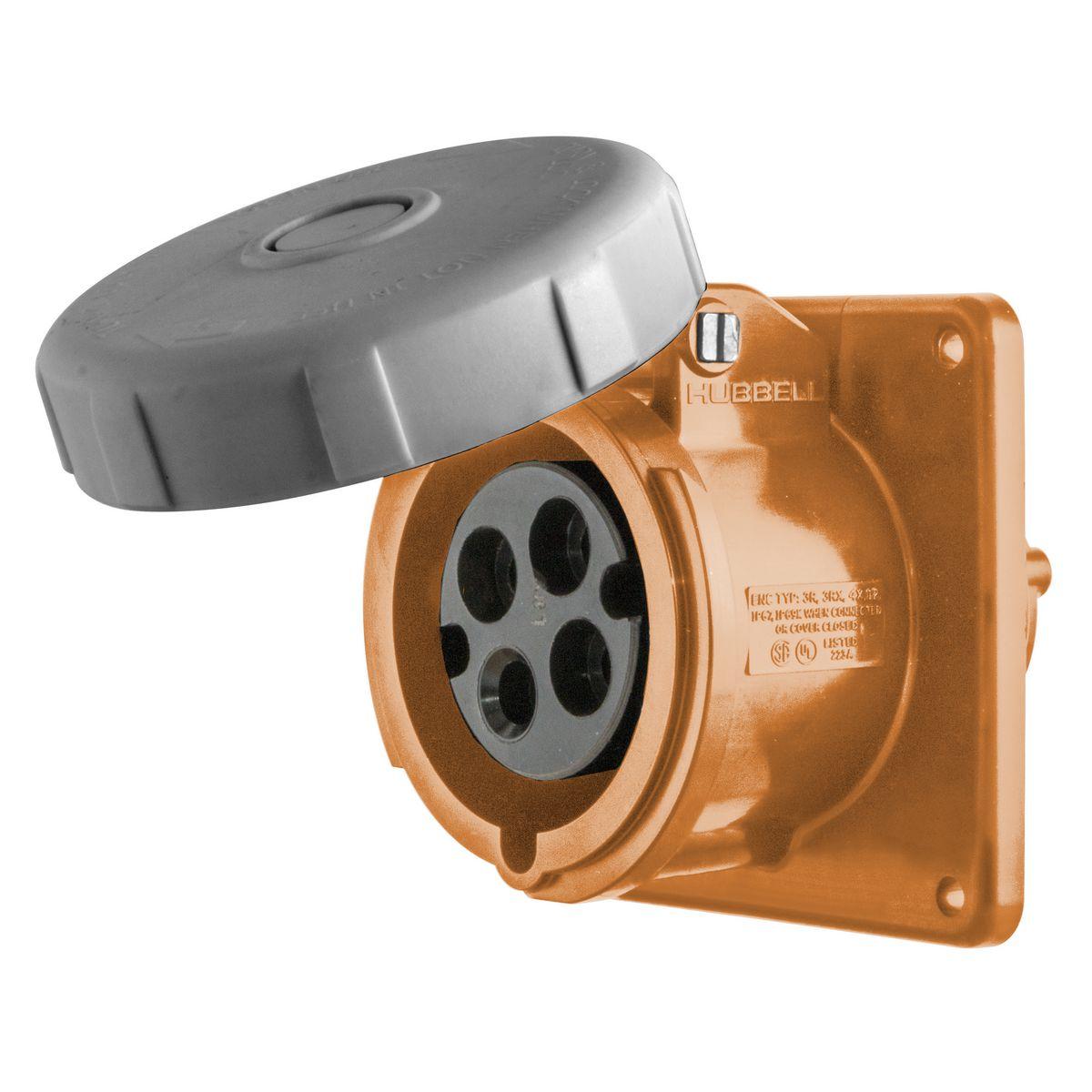

Hubbell HBL430R12W Pin and Sleeve Receptacle
Part Number # HBL430R12W
SKU # 2288178
Hubbell HBL430R12W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL430R12W |
| SKU #: | 2288178 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 3-3/4 in L x 3-3/4 in W |
| Enclosure: | IP67 |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | 1-Phase Flanged Grounding Non-NEMA Single Standard Watertight, 1-Phase Flanged Grounding Non-NEMA Single Standard Watertight Screw Mount |
| Country of origin: | PR, US |
| Material: | Composite/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585404615 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL430R12W Pin and Sleeve Receptacle
Brand: Hubbell
Part Number: HBL430R12W
Wiring Device-Kellems HBL Pin and Sleeve Receptacle, 1-Phase Flanged Grounding Non-NEMA Single Standard Watertight Screw Mount, 125/250 VAC, 30 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Orange, 3-3/4 in L x 3-3/4 in W
Additional Description: HUBW-HBL430R12W PS, IEC, RECP, 3P4W, 30A 125/250V,4X/69K W/T
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 30A 125/250V, 3-Pole 4- Wire Grounding, Terminal Screws, Orange, Watertight
HBL430R12W Application
High Ampacity Watertight Connection ApplicationsHBL430R12W Item Features
- Corrosion-resistant self-closing gasketed cover
- Insulated non-metallic housing
- Color coded housings for easy identification
HBL430R12W Standards
RoHS Compliant|CSA C22.2 File No. 182.1|CSA File No. LR280C/LR285C|UL 94/498/1682/1686C2 File No. E146032 IEC 309-1/309-2/60309-1SKU #2288178Part Number #HBL430R12WUNSPSC39121406UPC00783585404615
Image provided may only be a representation of final product and may include optional equipment
