Part Number # HBL430R5W
SKU # 124862
HBL430R5W

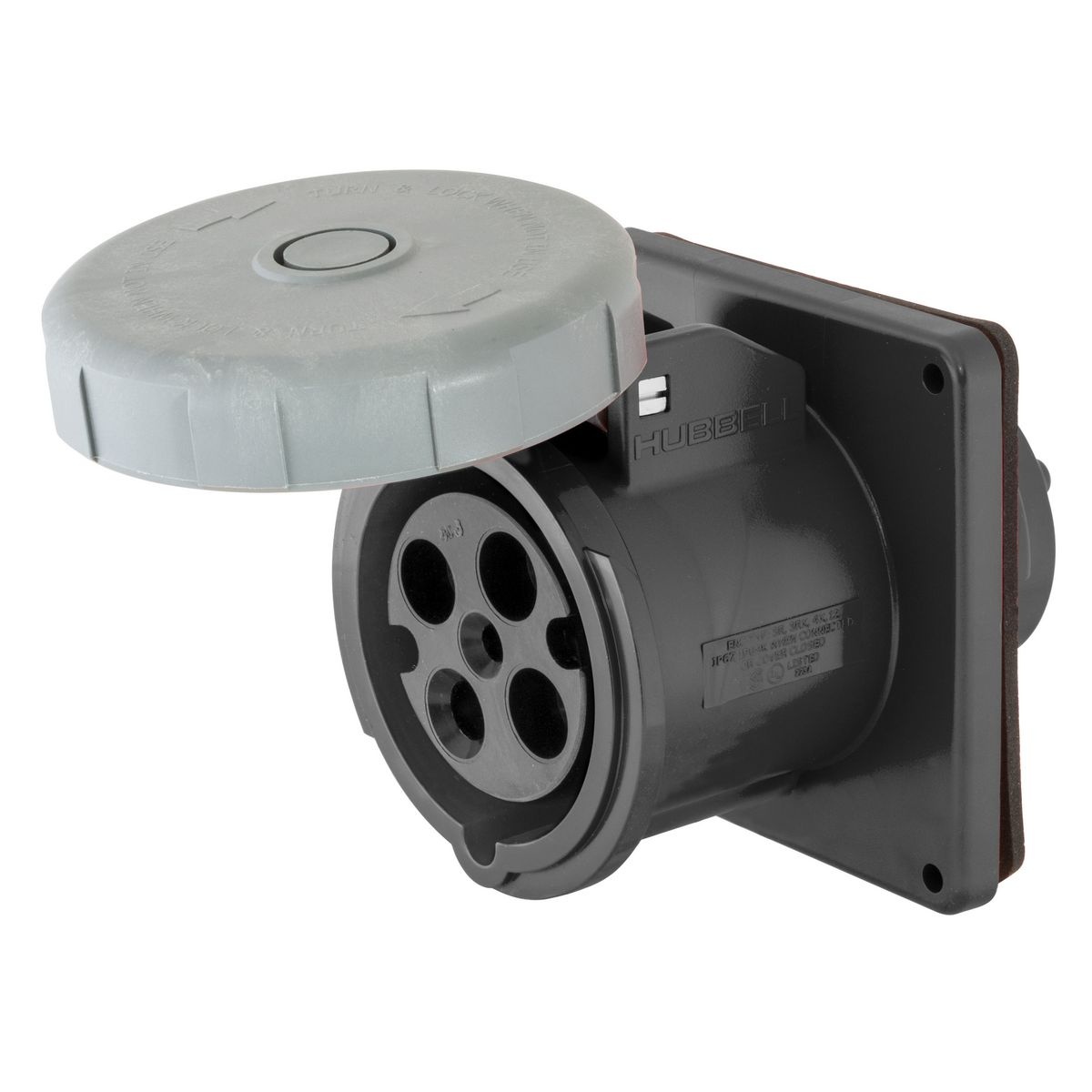

Hubbell HBL430R5W Pin and Sleeve Receptacle
Part Number # HBL430R5W
SKU # 124862
Hubbell HBL430R5W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL430R5W |
| SKU #: | 124862 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 3.75 in W x 3.09 in D x 4.27 in H, 4.27 in H x 3.75 in W x 3.09 in D |
| Enclosure: | IP67 |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | 3-Phase Flanged Grounding Non-NEMA Single Flanged Standard Watertight, 3-Phase Flanged Grounding Non-NEMA Single Flanged Standard Watertight Screw Mount |
| Country of origin: | PR, US |
| Material: | Composite/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585404622 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL430R5W Pin and Sleeve Receptacle
Brand: Hubbell
Part Number: HBL430R5W
Wiring Device-Kellems Pin and Sleeve Receptacle, 3-Phase Flanged Grounding Non-NEMA Single Flanged Standard Watertight Screw Mount, 600 VAC, 30 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Black, 3.75 in W x 3.09 in D x 4.27 in H
Additional Description: HUBW-HBL430R5W PS, IEC, RECP, 3P4W, 30A 3P 600V,4X/69K W/T
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 30A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Black, Watertight
HBL430R5W Application
High Ampacity Watertight Connection ApplicationsHBL430R5W Item Features
- Corrosion-resistant self-closing gasketed cover
- Insulated non-metallic housing
- Color coded housings for easy identification
HBL430R5W Standards
UL 498 File No. E146032|IEC 309-1/309-2|CSA File No. LR285C|RoHS CompliantSKU #124862Part Number #HBL430R5WUNSPSC39121406UPC00783585404622
Image provided may only be a representation of final product and may include optional equipment
