Part Number # HBL432C3W
SKU # 2288180

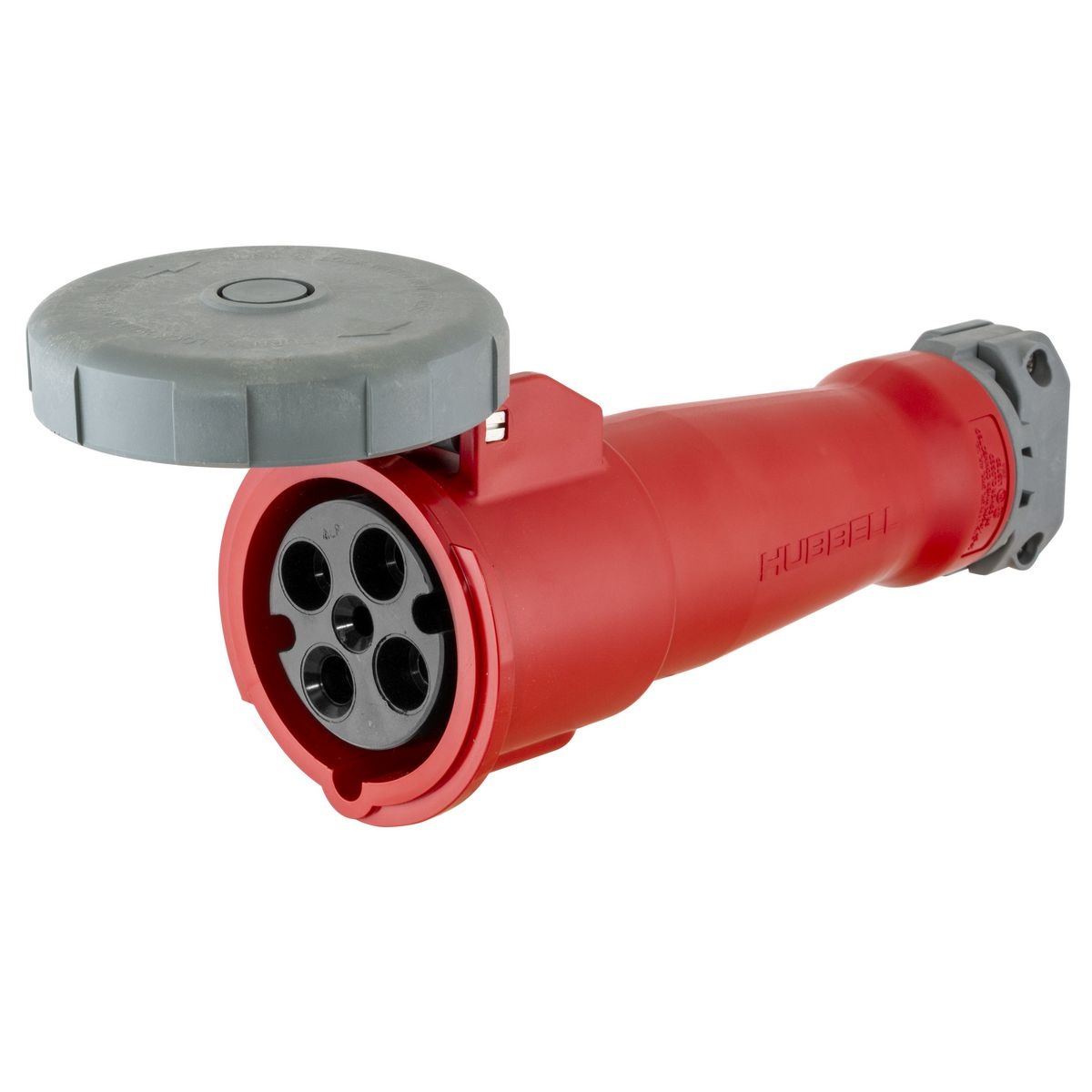

Image provided may only be a representation of
final product and may include optional equipment
HBL432C3W
Hubbell HBL432C3W Pin and Sleeve Connector
Part Number # HBL432C3W
SKU # 2288180
Hubbell HBL432C3W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL432C3W |
| SKU #: | 2288180 |
| Amperage Rating: | 32, 32 A |
| Dimensions: | 9.05 in L x 4.27 in W |
| Enclosure: | IP67 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | Female Heavy Duty Standard Watertight, Female Heavy Duty Standard Watertight Cord Mount |
| Country of origin: | PR, US |
| Material: | Composite, Composite/Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585404677 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL432C3W Pin and Sleeve Connector
Brand: Hubbell
Part Number: HBL432C3W
Wiring Device-Kellems Pin and Sleeve Connector, Female Heavy Duty Standard Watertight Cord Mount, 380/440 VAC, 32 A, 50/60 Hz Frequency, 3 Pole, 4 Wires, Industrial Grade, -40 to 75 deg C, Pressure Screw Terminal, Composite, Red, 9.05 in L x 4.27 in W
Additional Description: HUBW-HBL432C3W PS, IEC, CONN, 3P4W, 32A 380-480V,4X/69K W/T
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 32A 380/415V, 3-Pole 4-Wire Grounding, Terminal Screws, Red, Watertight
HBL432C3W Application
High Ampacity Connection ApplicationsHBL432C3W Item Features
- Insulated Non-Metallic housing
- Color coded housings by voltage for easy identification
- Corrosion-resistant self-closing gasketed cover
HBL432C3W Standards
RoHS Compliant|IEC 309-1/309-2/60309-1/60309-2|UL 498/1682/1686C2 File No. E146032/E146033|CSA C22.2 No. 182.1|CSA File No. LR280C/LR285C|UL94 HB Flammability RatingSKU #2288180Part Number #HBL432C3WUNSPSC39121421UPC00783585404677
