HBL45205

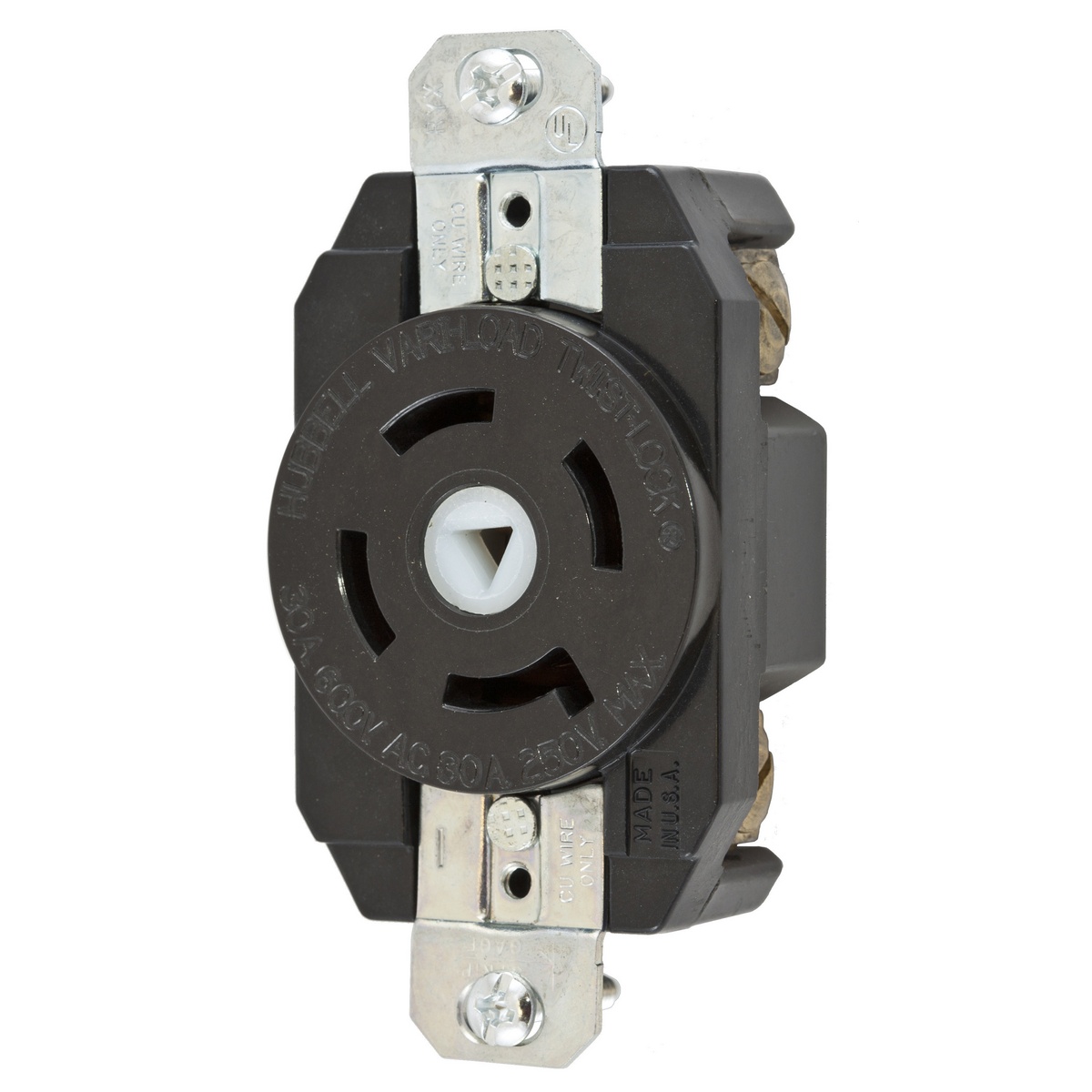

Hubbell HBL45205 Locking Receptacle
Part Number # HBL45205
SKU # 2288221
$197.14 / Each
Typical price:$374.00 / Each
Hubbell HBL45205 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL45205 |
| SKU #: | 2288221 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 1-17/64 in D x 1-45/64 in H, 3.28 in L x 1.72 in W x 1.27 in H |
| Frequency Rating: | 50/400 |
| Number of Poles: | 4 |
| Number of Wires: | 5 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Clamp/Screw, Screw, Screw Clamp |
| Type: | Flush Mount Grounding Heavy Duty Multi-Phase Non-NEMA Standard Single, Single |
| Color: | Black |
| Material: | Composite/Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585236537 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$197.14 / Each
Typical price:$374.00 / Each
Quantity:
- Hubbell Twist-Lock Variload Locking Receptacle, Single, 600 V AC/250 V DC, 30 A, 4 Pole, 5 Wires, -40 to 75 deg C, Screw Clamp Terminal, Black, 1-17/64 in D x 1-45/64 in H Dimensions
HBL45205 Item Features
- Heat resistant thermoset construction
- Non-interchangeable center slot configuration to be designated to different circuits
- 5-wire grounding
- 0.04 in brass back plate
- Black thermoset top cover
- 0.05 in brass bridge mounting strap
- Zinc plated 0.05 in steel rivet material
- Black thermoset base
- 0.04 in brass ground contact
- Zinc plated steel mounting screws
- 0.06 in brass spring binding plate
- 0.04 in brass contact spring material
- 20 A 12 AWG and 30 A 10 AWG terminal accommodation
- 2000 VAC minimum dielectric voltage withstand
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
- Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification
- V0 per UL94/CSA 22.2 No 0.17 flammability
HBL45205 Standards
CSA C22.2 No. 42|UL 498SKU #2288221Part Number #HBL45205UNSPSC39121406UPC00783585236537
