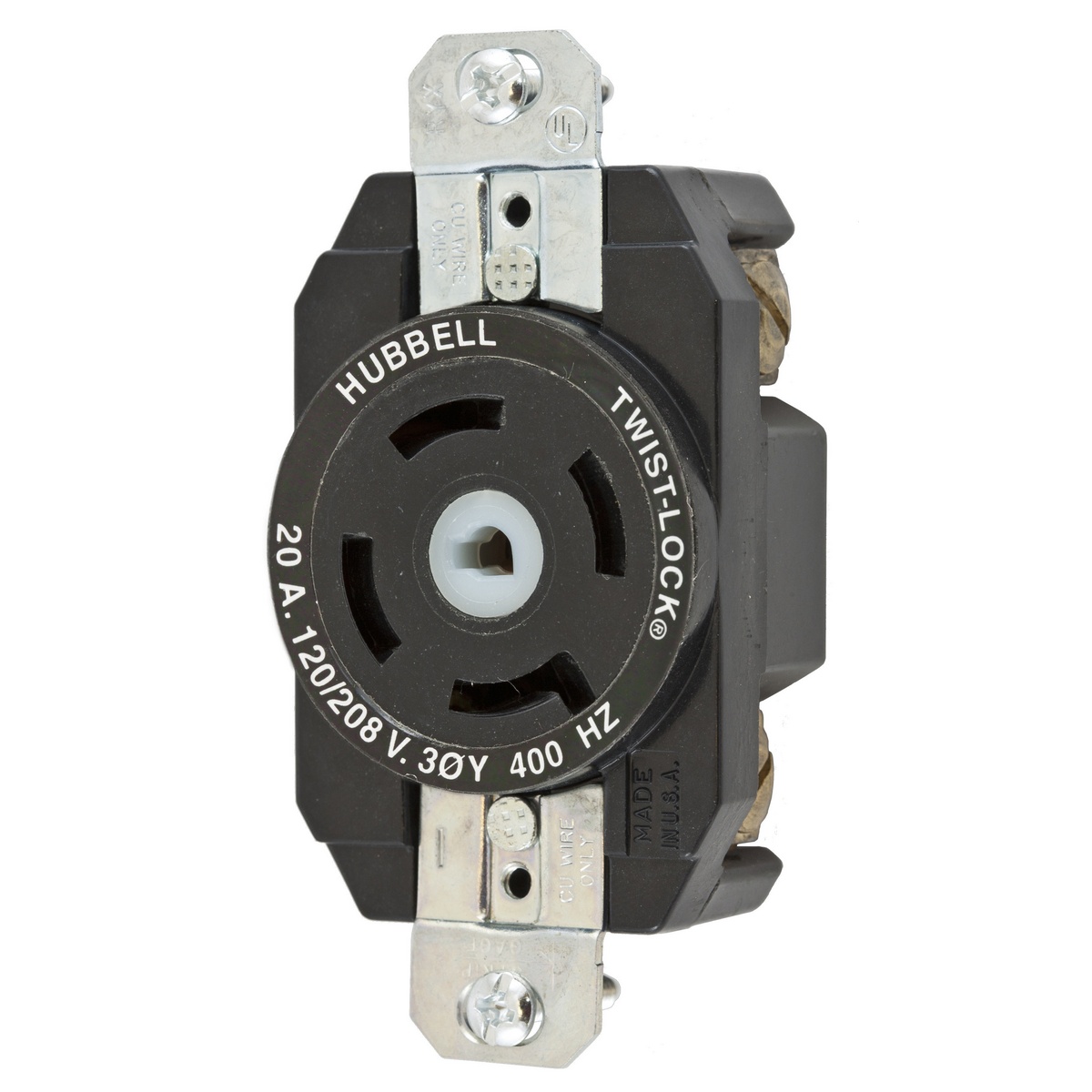

Hubbell HBL45905 Locking Receptacle
Hubbell HBL45905 Locking Receptacle
Part #:HBL45905
SKU #: 2288223
Key Features
Part #:HBL45905
SKU #: 2288223
Brand: Hubbell
Amperage Rating: 20, 20 A
Dimensions: 1-45/64 in W x 1-17/64 in D, 3.28 x 1.7 x 1.27 in
Frequency Rating: 400, 400 Hz
Number of Poles: 4
Number of Wires: 5
- 0.025 in nickel plated steel terminal clamp
- Brass (green) ground screw
- 0.04 in brass contact spring
- 0.06 in brass spring binding plate
- Zinc plated steel mounting screw
- Black thermoset cover (top) and base
- 0.04 in brass ground contact
- 0.05 in zinc plated steel bridge (mounting strap), 0.05 in brass backplate
- Brass rivet
- 0.05 in zinc plated steel rivet
- Molded in or stamped-on ratings
- Permanently ink marked on product catalog number
- Withstands 2000 VAC minimum dielectric voltage
- Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75%
- Terminals identified in accordance with UL 498 (x, y, z, white, green)
- UL 94 V-0 for receptacles and inlets, HB or better for plugs and connectors flammability
- Heat-resistant thermoset construction
- Non-interchangeable center slot configuration to be designated to different circuits
- Black urea face
- Unique center pin
Hubbell HBL45905 Locking Receptacle
Wiring Device-Kellems Twist-Lock VariLoad Locking Receptacle, 3-Phase Grounding Heavy Duty Non-NEMA Single Standard Screw Mount, 120/208 VAC, 20 A, 400 Hz Frequency, 4 Pole, 5 Wires, Industrial Grade, -40 to 75 deg C, Screw Terminal, Thermoplastic, Black, 3.28 x 1.7 x 1.27 in
Additional Description: HUBW-HBL45905 (N) LKG RCPT, VARILOAD, 4P5W, 20A 120/208V NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Locking Devices, Twist-Lock®, Variload®, Flush Receptacle, 20A 3-Phase Wye 120/208V AC only - 400Hz, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Black Urea Face, Unique Center Pin.
