Part Number # HBL460B12W
SKU # 2307993
Image Disclaimers Message
Brand: Hubbell
HBL460B12W

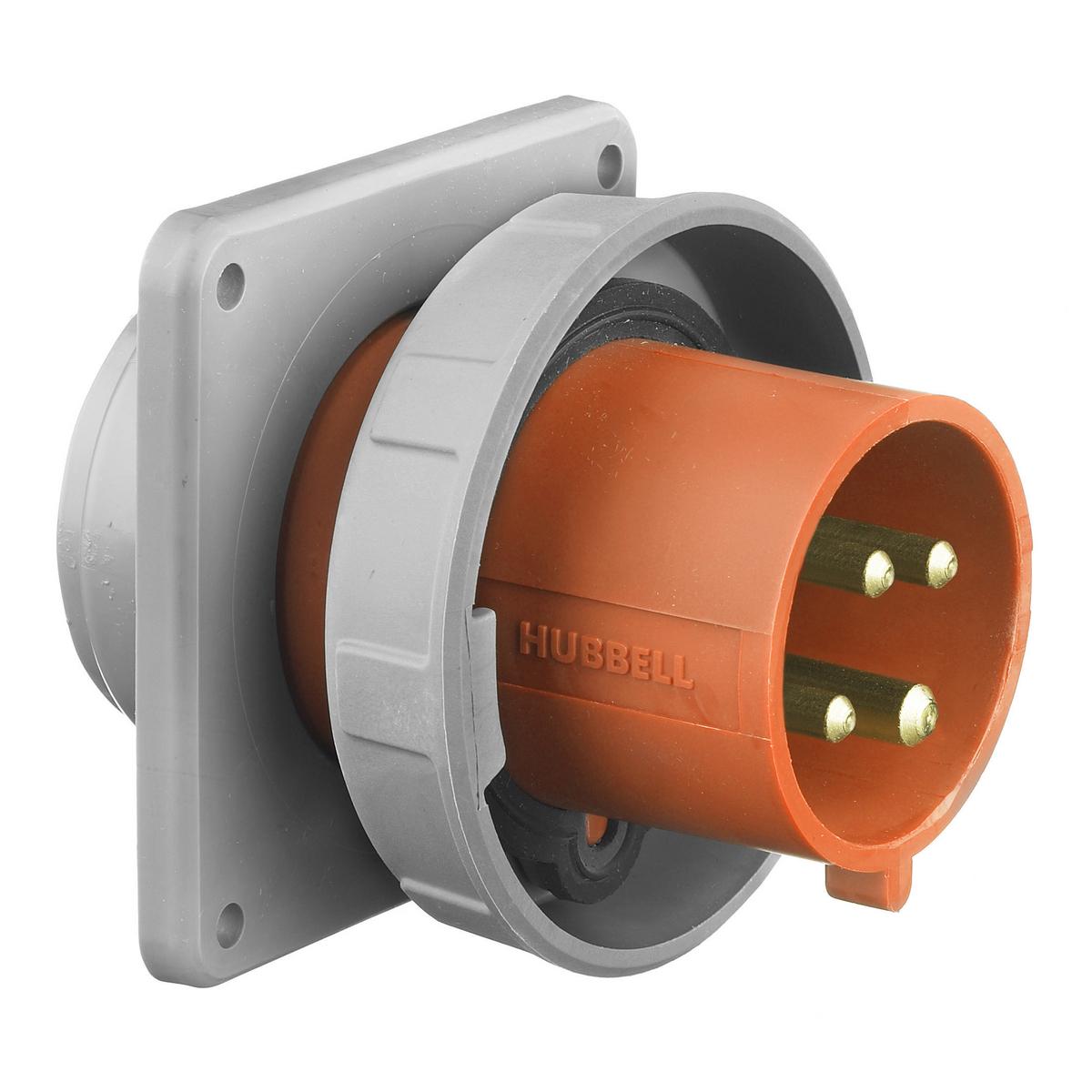

Hubbell HBL460B12W Pin and Sleeve Inlet
Part Number # HBL460B12W
SKU # 2307993
$534.29 / Each
Typical price:$815.00 / Each
Hubbell HBL460B12W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL460B12W |
| SKU #: | 2307993 |
| Amperage Rating: | 60 A |
| Dimensions: | 4-1/2 in H x 4-1/2 in W, 4-1/2 in W x 4-1/2 in H |
| Enclosure: | IP67 |
| Horsepower: | 3, 3 hp |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | 1-Phase Flanged Grounding Non-NEMA Male Single Standard Watertight, 1-Phase Flanged Grounding Non-NEMA Male Single Standard Watertight Screw Mount |
| Color: | Orange |
| Country of origin: | PR, US |
| Material: | Composite/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585404738 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$534.29 / Each
Typical price:$815.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL460B12W, Pin and Sleeve Inlet, 1-Phase Flanged Grounding Non-NEMA Male Single Standard Watertight Screw Mount, 125/250 V AC, 60 A, 3 hp, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Orange, 4-1/2 in W x 4-1/2 in H Dimensions
HBL460B12W Application
High Ampacity Watertight Connection ApplicationsHBL460B12W Item Features
- Solid one-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal
- Raised collar surrounds each phase pin
HBL460B12W Standards
RoHS Compliant|CSA File No. LR280C|IEC 309-1/309-2|UL 498|CSA CertifiedSKU #2307993Part Number #HBL460B12WUNSPSC39121406UPC00783585404738
