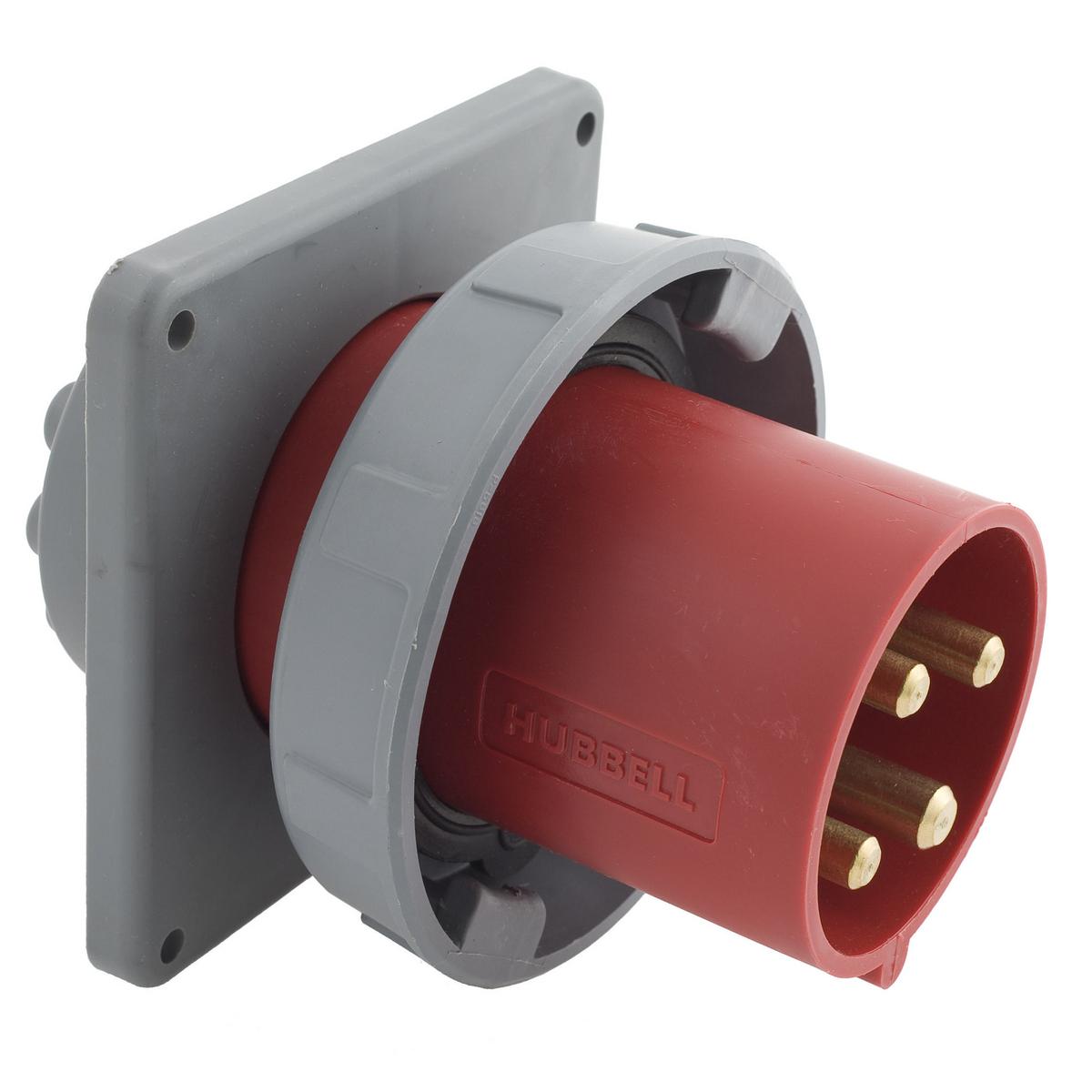

Hubbell HBL460B7W Pin and Sleeve Inlet
Image Disclaimers Message
Hubbell HBL460B7W Pin and Sleeve Inlet
Hubbell HBL460B7W Pin and Sleeve Inlet
Part #:HBL460B7W
SKU #: 2291548
Key Features
Part #:HBL460B7W
SKU #: 2291548
Brand: Hubbell
Amperage Rating: 60 A
Dimensions: 4-1/2 in H x 4-1/2 in W, 4-1/2 in W x 4-1/2 in H
Enclosure: IP67
Horsepower: 10, 10 hp
Number of Poles: 3
- Provide safe and dependable performance in the most demanding environments
- Raised collar surrounds each phase pin to prevent electrical tracking
- Zytel 101 nylon mounting flange
- Stainless steel hinge spring, mounting screws, terminal screws and assembly screws
- Neoprene gasket
- 10000 mechanical cycles, 6000 electrical cycles endurance
- Heavy duty non-conductive nylon construction provides impact and corrosion protection
- Thermoset polyester contact carriers withstand high temperatures and provide resistance to electrical tracking
- Rugged one piece housing, thick wall construction protects internal components, eliminates joints preventing infiltration of contaminants
- Solid one piece pins, machined from solid brass for longer life and reliable electrical contact
- Gasketed sealing ring provides watertight seal
- Supertough insulated non-metallic housing
Hubbell HBL460B7W Pin and Sleeve Inlet
Wiring Device-Kellems Pin and Sleeve Inlet, 3-Phase Flanged Male Single Standard Watertight Screw Mount, 480 VAC, 60 A, 10 hp, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Red, 4-1/2 in W x 4-1/2 in H
Additional Description: HUBW-HBL460B7W PS, IEC, INLET, 3P4W, 60A 3P 480V,4X/69K 480V,4X/69K W/T
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Flanged Inlet, 60A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Red, Watertight
