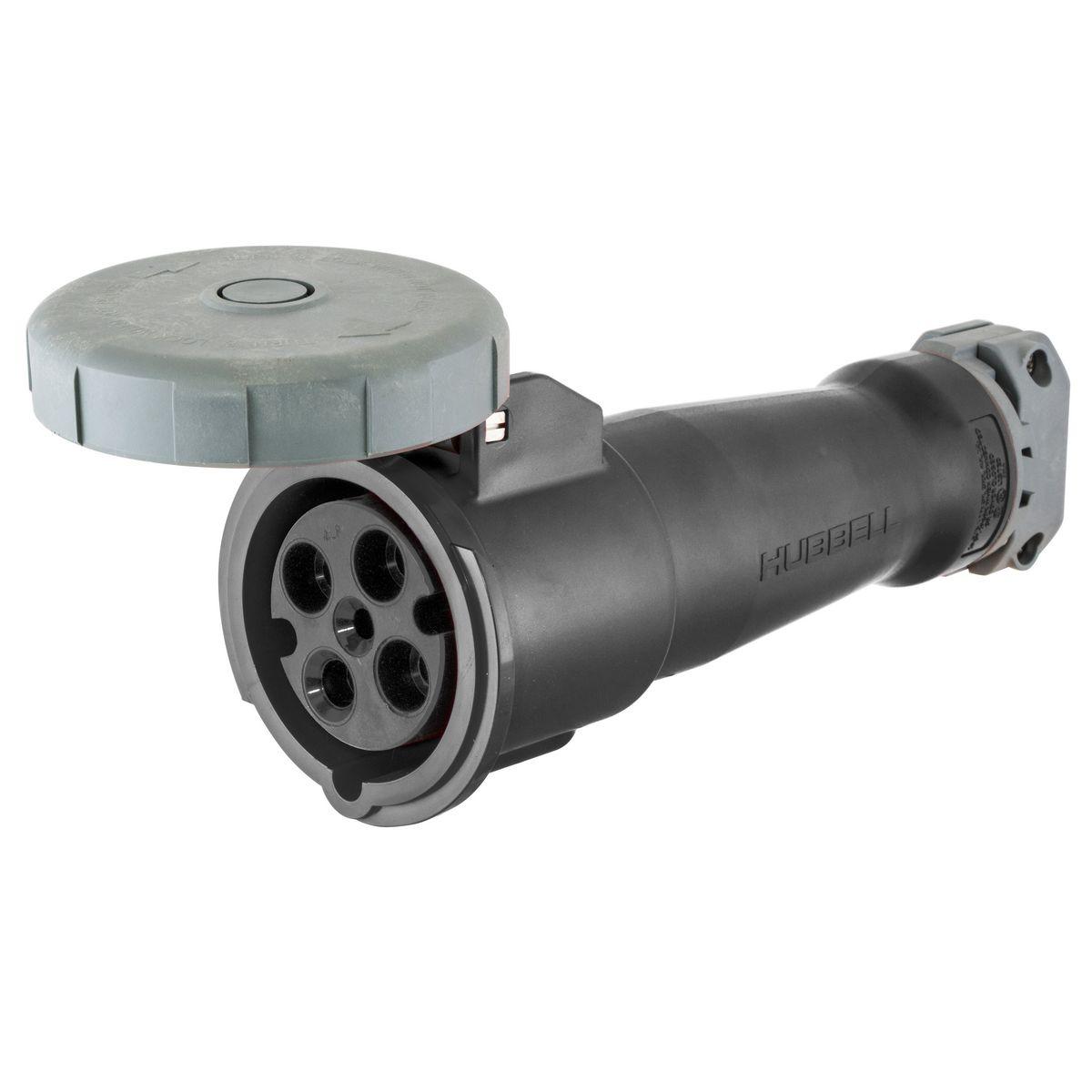

Hubbell HBL460C5W Pin and Sleeve Connector
Image Disclaimers Message
Hubbell HBL460C5W Pin and Sleeve Connector
Hubbell HBL460C5W Pin and Sleeve Connector
Part #:HBL460C5W
SKU #: 121446
Key Features
Part #:HBL460C5W
SKU #: 121446
Brand: Hubbell
Amperage Rating: 60 A
Dimensions: 5.1 in Dia x 11.15 in L
Enclosure: IP67
Number of Poles: 3
Number of Wires: 4
- Self-closing gasketed cover
- High impact thermoset contact carrier and retainer
- Stainless steel terminal screws, assembly screws, arm spring, cord clamp screws and beryllium copper pin/sleeve spring
- Rynite SST35 cord clamps, cover arm and cover
- Nickel plated brass clamp nut and cover screw/rivet
- Polycarbonate rotating sealing disc
- Brass ground/phase sleeve
- 0.5 to 1.45 in cord clamp range
- Cord mounted
- Super tough insulated non-metallic housing
- Non-NEMA rating
- Watertight neoprene glad seal to prevent water ingress from entering at cable entrance
- Sequential contact engagement to prevent a momentary over-voltage
- Multi-contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise
- Withstands 3000 VAC dielectric voltage
- Reinforced thermoplastic polyester covers and cord clamps
- Solid neoprene gaskets and glands
- 8 to 2 AWG copper terminal accommodation
Hubbell HBL460C5W Pin and Sleeve Connector
Wiring Device-Kellems Pin and Sleeve Connector, Female Grounding Watertight Cord Mount, 600 VAC, 60 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black, 5.1 in Dia x 11.15 in L
Additional Description: HUBW-HBL460C5W PS, IEC, CONN, 3P4W, 60A 3P 600V,4X/69K W/T
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 60A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Black, Watertight
