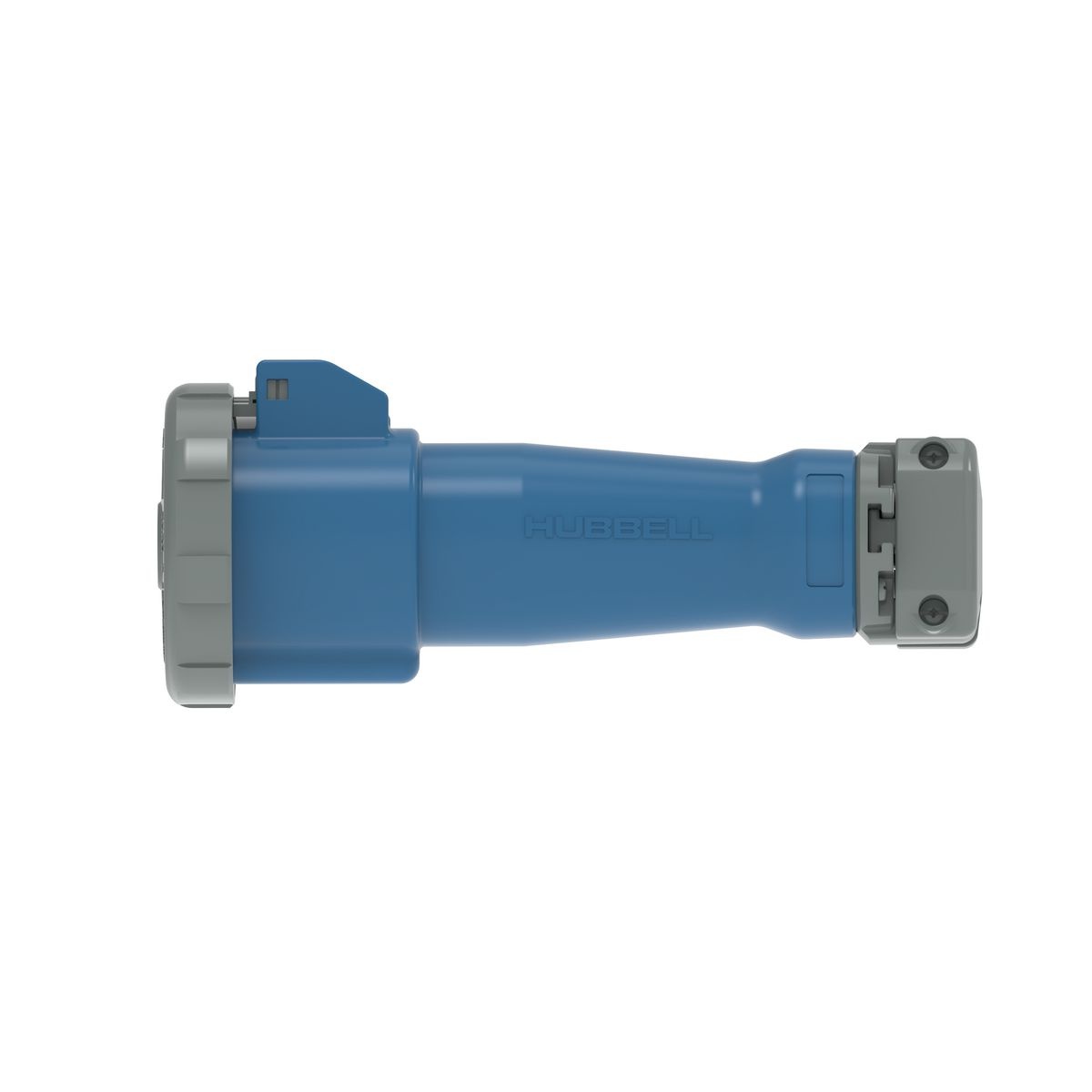

Hubbell HBL460C9W Pin and Sleeve Connector
Image Disclaimers Message
Hubbell HBL460C9W Pin and Sleeve Connector
Hubbell HBL460C9W Pin and Sleeve Connector
Part #:HBL460C9W
SKU #: 2263078
Key Features
Part #:HBL460C9W
SKU #: 2263078
Brand: Hubbell
Amperage Rating: 60 A
Dimensions: 5.1 in Dia x 11.15 in L
Enclosure: IP67
Horsepower: 5, 5 hp
Number of Poles: 3
- Self-closing gasketed cover
- Super tough insulated non-metallic housing
- Watertight neoprene glad seal to prevent water ingress from entering at cable entrance
- Sequential contact engagement to prevent a momentary over-voltage
- Multi-contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise
- Withstands 3000 VAC dielectric voltage
- Reinforced thermoplastic polyester covers and cord clamps
- Solid neoprene gaskets and glands
- 8 to 2 AWG copper wire terminal accommodation
- Round portable service cords of diameters commensurate with the device rating as defined in UL standard 62, CSA C22.2 No. 49 and the harmonized European standards cord accommodation
- Terminals identified in accordance with North american and IEC conventions terminal identification, identification and ratings are a permanent part of the device housing product identification
- Watertight per IEC 60309-1 moisture resistance
- HB or better per UL 94 or CSA 22.2 No. 0.17 flammability
Hubbell HBL460C9W Pin and Sleeve Connector
Wiring Device-Kellems Pin and Sleeve Connector, Female Grounding Watertight Cord Mount, 250 VAC, 60 A, 5 hp, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Blue, 5.1 in Dia x 11.15 in L
Additional Description: HUBW-HBL460C9W PS,IEC,CONN,3P4W, 60/63A 200-250V,4X/69K 200-250V,4X/69K W/T
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female Connector Body, 60A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Blue, Watertight
