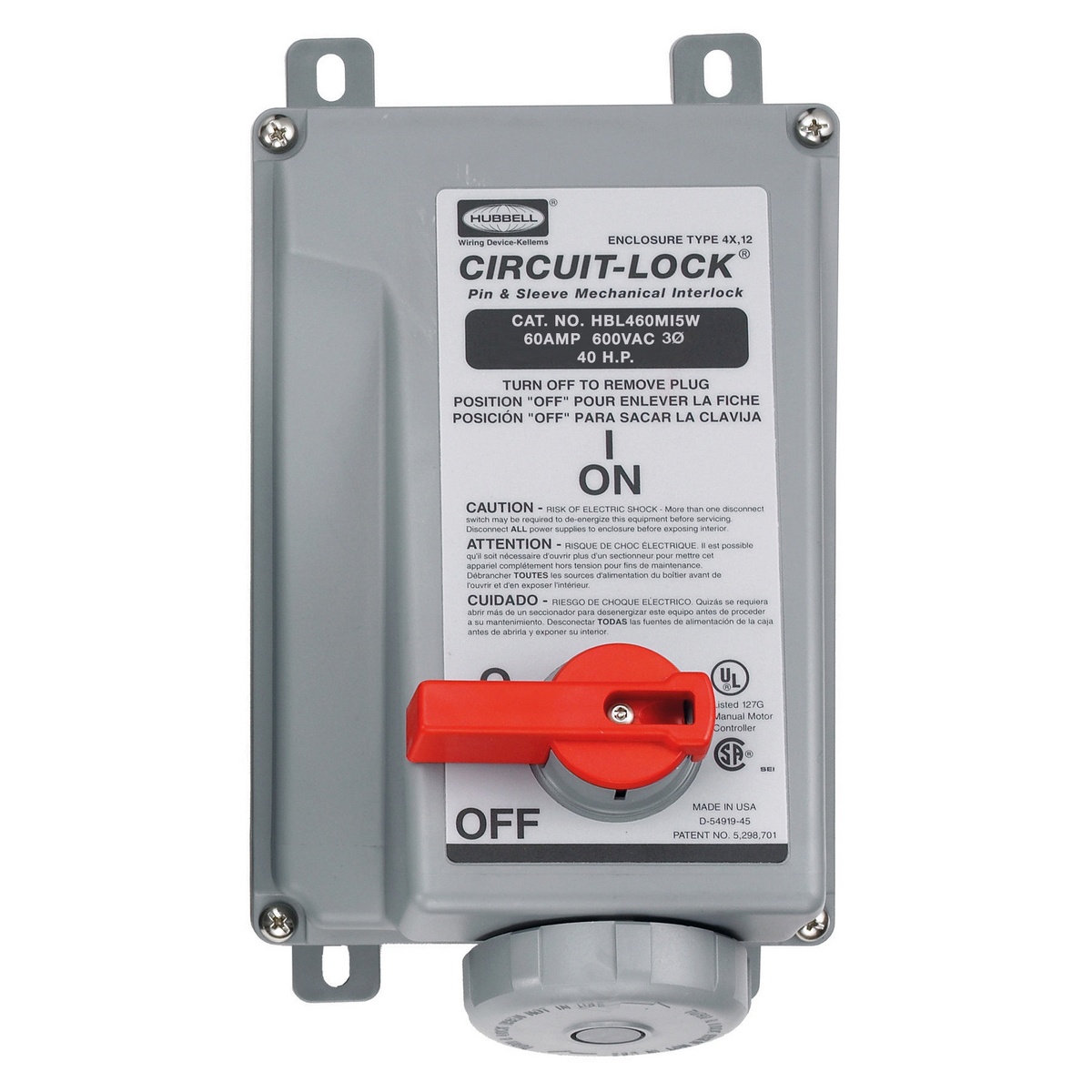

Hubbell HBL460MI5W Pin and Sleeve Mechanical Interlock
Hubbell HBL460MI5W Pin and Sleeve Mechanical Interlock
Part #:HBL460MI5W
SKU #: 2255409
Key Features
Part #:HBL460MI5W
SKU #: 2255409
Brand: Hubbell
Amperage Rating: 60 A
Dimensions: 8.75 in L x 8.6 in W x 13.65 in H
Enclosure: NEMA 4X/12/IP67
Hub Size: 1-1/4 in
Mounting: Threaded
- Insulated non-metallic housing, super tough, non-conductive and chemical resistant for heavy duty industrial environments
- DIN rail mounted switch for easy installation and replacement
- Replaceable spring loaded lift cover with neoprene gasket for a watertight seal
- Reverse service has dependable solid brass pins for longer life and reliable electrical contact
- Comes with brass inserts and stainless steel screws for higher torque and better sealing
- Three molded in conduit drill points are located on the top, bottom and back surface of enclosure
- Adjustable mounting feet are ductile to allow mounting on irregular surfaces
- 8 to 2 AWG wire size
- 40 hp rating
- Pressure screw terminals
- IEC pin and sleeve devices are color coded by voltage for easy identification
- Self-closing gasketed cover, detents into position to fully close automatically
- Lockable handle to meet OSHA lockout tagout regulations
- 2-stage interlocking mechanism to help defeat tampering
- Watertight conduit hub and grounding plate for use on metallic conduit
- Color coded rating pad and receptacle mount to signify voltage
- Large gears enclosed in a gear box assembled on one plane to eliminate possible gear jumping
- Horsepower rated disconnect switch handles large motor loads
Hubbell HBL460MI5W Pin and Sleeve Mechanical Interlock
Wiring Device-Kellems HBL Circuit-Lock Pin and Sleeve Mechanical Interlock, 3-Phase Female Grounding Industrial Grade Standard Unfused Pressure Screw Terminal Watertight, 600 VAC, 60 A, 36000 W Power, 3 Pole, 4 Wires, NEMA 4X/12/IP67 Enclosure, Threaded Mounting, Thermoplastic, Black, 8.75 in L x 8.6 in W x 13.65 in H
Additional Description: HUBW-HBL460MI5W PS, IEC, MECHINT, 3P4W, 60A 3P 600V, W/T
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 60A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws
