Part Number # HBL460MIF7W
SKU # 194753
Image Disclaimers Message
HBL460MIF7W

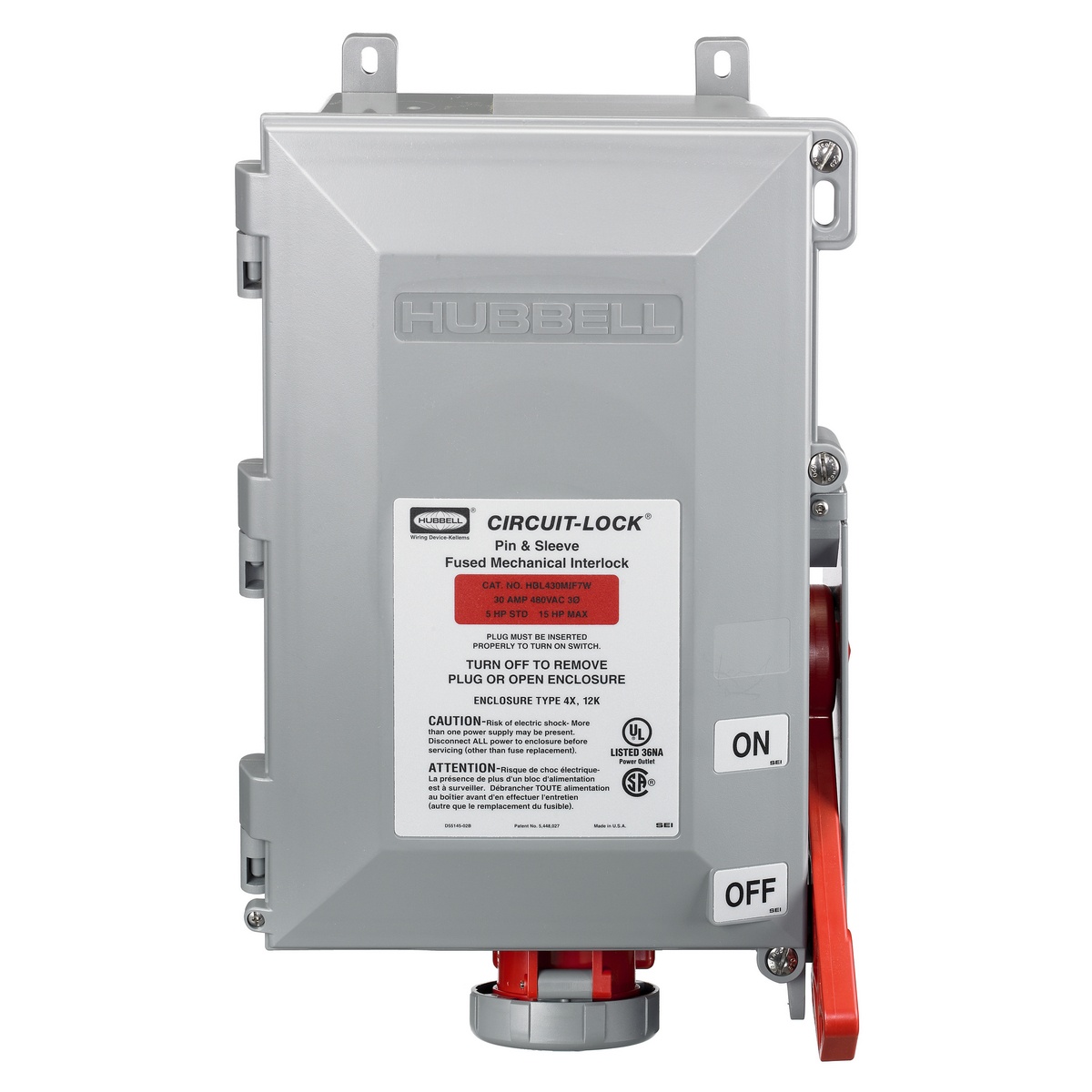

Hubbell HBL460MIF7W Pin and Sleeve Mechanical Interlock
Part Number # HBL460MIF7W
SKU # 194753
$2762.86 / Each
Typical price:$4215.00 / Each
Hubbell HBL460MIF7W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL460MIF7W |
| SKU #: | 194753 |
| Amperage Rating: | 60 A |
| Dimensions: | 10.18 in L x 8.43 in W x 15.36 in H |
| Enclosure: | NEMA 4X/12K/IP67 |
| Hub Size: | 1-1/4 in NPT |
| Mounting: | Threaded |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Type: | 3-Phase Female Grounding Industrial Grade Fused Standard Pressure Screw Terminal Watertight, Female Grounding Industrial Grade Fused Standard |
| Color: | Red |
| Country of origin: | PL, PR |
| Material: | Polybutylene Terephthalate, Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585406022 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2762.86 / Each
Typical price:$4215.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems HBL Circuit-Lock Pin and Sleeve Mechanical Interlock, 3-Phase Female Grounding Industrial Grade Fused Standard Pressure Screw Terminal Watertight, 480 V AC, 60 A, 28800 W Power, 3 Pole, 4 Wires, 1-1/4 in NPT Hub, NEMA 4X/12K/IP67 Enclosure, Threaded Mounting, Thermoplastic, Red, 10.18 in L x 8.43 in W x 15.36 in H
HBL460MIF7W Application
High Ampacity Connections ApplicationsHBL460MIF7W Item Features
- Replaceable spring-loaded receptacle liftcover with gasket
- Removable door for ease of wiring and installation
- Plug-Check mechanism to detect the presence of plug
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
HBL460MIF7W Standards
CSA Certified|IEC 309-1/309-2|UL 498SKU #194753Part Number #HBL460MIF7WUNSPSC39121406UPC00783585406022
