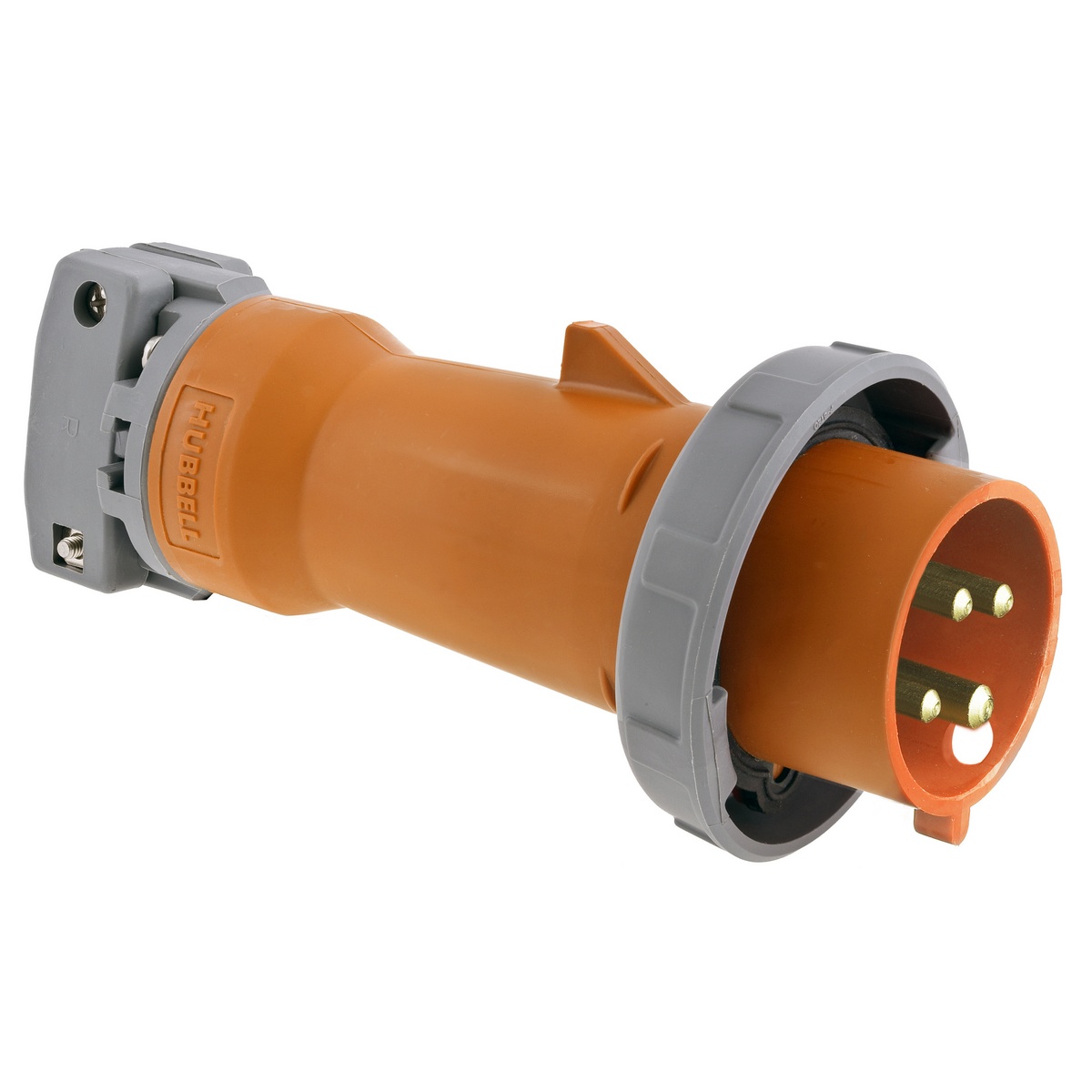

Hubbell HBL460P12W Pin And Sleeve Plug
Image Disclaimers Message
Hubbell HBL460P12W Pin And Sleeve Plug
Hubbell HBL460P12W Pin And Sleeve Plug
Part #:HBL460P12W
SKU #: 2242690
Key Features
Part #:HBL460P12W
SKU #: 2242690
Brand: Hubbell
Amperage Rating: 60 A
Dimensions: 4.49 in Dia x 10.15 in L
Enclosure: IP67
Horsepower: 7-1/2, 7.5 hp
Number of Poles: 3
- 1-piece non-metallic housing provides impact and chemical resistance in an insulated body
- Solid one piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal when mated with receptacle or connector
- Heavy duty external cord grips for maximum cord retention
- Withstands 3000 VAC dielectric voltage
Hubbell HBL460P12W Pin And Sleeve Plug
Wiring Device-Kellems Pin and Sleeve Plug, 1-Phase Grounding Male Non-NEMA Portable Watertight Standard Cord Mount, 125/250 VAC, 60 A, 7.5 hp, 3 Pole, 4 Wires, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Orange, 4.49 in Dia x 10.15 in L
Additional Description: HUBW-HBL460P12W PS, IEC, PLUG, 3P4W, 60A 125/250V,4X/69K W/T
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 60A 125/250V, 3-Pole 4-Wire Grounding, Terminal Screws, Orange, Watertight
