Part Number # HBL460PS1W
SKU # 144631
Image Disclaimers Message
HBL460PS1W

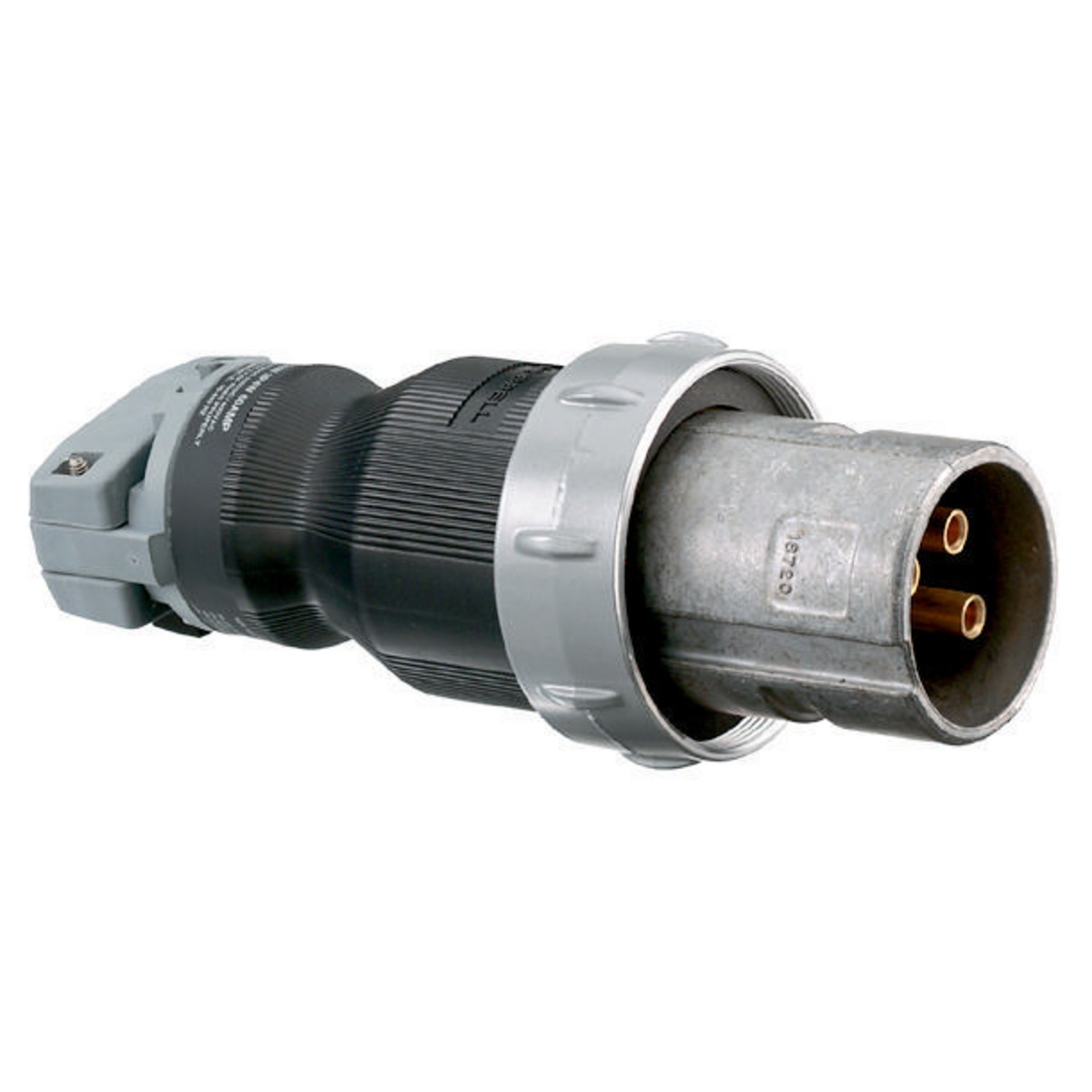

Hubbell HBL460PS1W Pin and Sleeve Plug
Part Number # HBL460PS1W
SKU # 144631
$447.14 / Each
Typical price:$578.00 / Each
Hubbell HBL460PS1W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL460PS1W |
| SKU #: | 144631 |
| Amperage Rating: | 60 A |
| Dimensions: | 3.4 in Dia x 9.4 in L |
| NEMA Rating: | 3/4/4X, NEMA 3/4/4X |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | Type 1 Grounding Male Non-NEMA Portable Standard Watertight, Type 1 Grounding Male Non-NEMA Portable Standard Watertight Cord Mount |
| Color: | Black/Gray |
| Country of origin: | PR |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585010540 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$447.14 / Each
Typical price:$578.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems Pin and Sleeve Plug, Type 1 Grounding Male Non-NEMA Portable Standard Watertight Cord Mount, 600 V AC/250 V DC, 60 A, 3 Pole, 4 Wires, 3/4/4X NEMA Rating, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/Gray, 3.4 in Dia x 9.4 in L
HBL460PS1W Application
High Ampacity Connections ApplicationsHBL460PS1W Item Features
- Locking ring provides watertight, dust-tight seal
- Catalog number and rating visible while in use
- All-Brass sleeve contacts provide reliable electrical contact
- https://youtu.be/1DnPJu3QNw0
HBL460PS1W Standards
UL 498|UL 1686|UL 94 Flammability Rating|CSA C22.2 File No. 0.17SKU #144631Part Number #HBL460PS1WUNSPSC39121402UPC00783585010540
