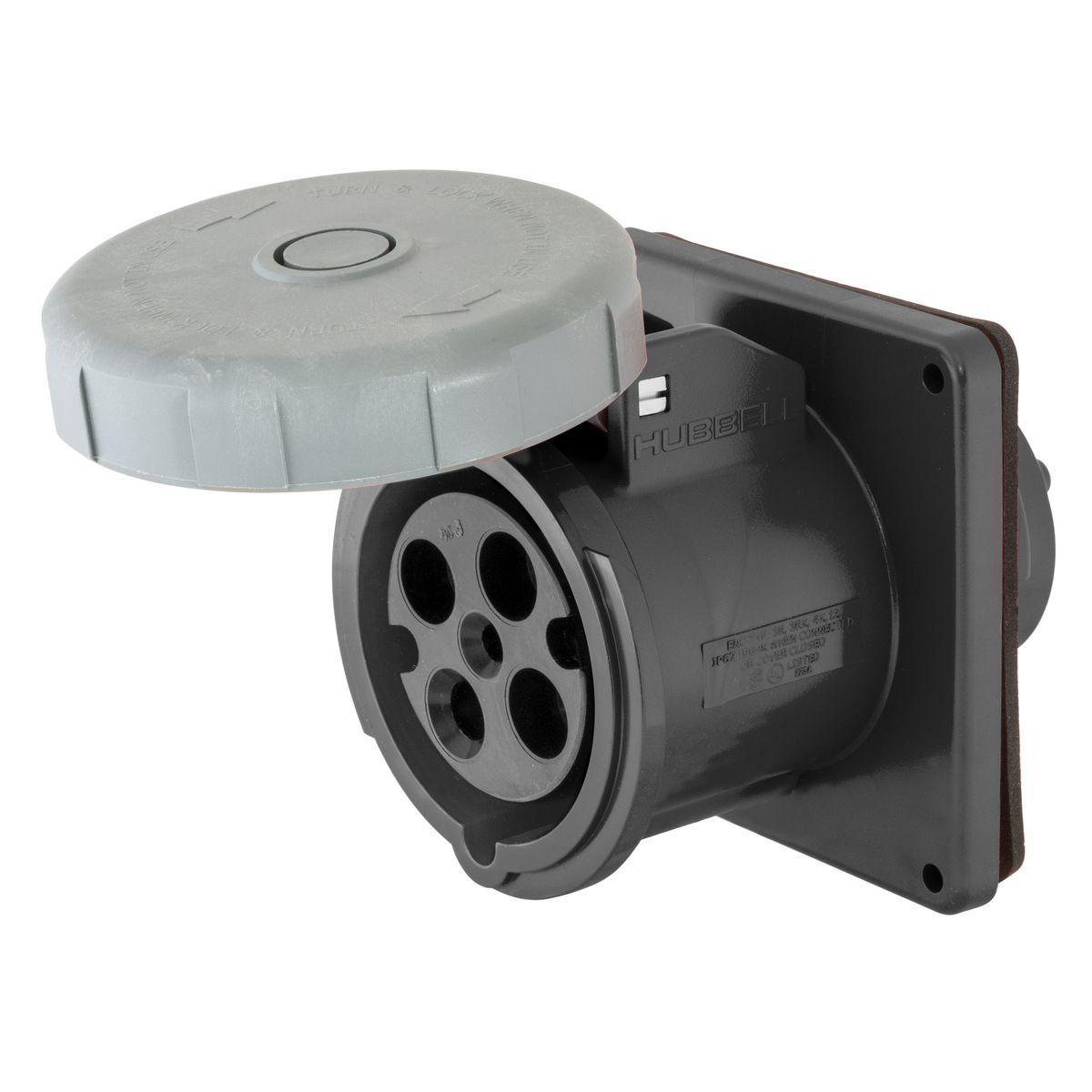

Hubbell HBL460R5W Pin and Sleeve Receptacle
Image Disclaimers Message
Hubbell HBL460R5W Pin and Sleeve Receptacle
Hubbell HBL460R5W Pin and Sleeve Receptacle
Part #:HBL460R5W
SKU #: 118411
Key Features
Part #:HBL460R5W
SKU #: 118411
Brand: Hubbell
Amperage Rating: 60 A
Dimensions: 4.5 in W x 4.07 in D x 5.1 in H, 5.1 in H x 4.5 in W x 4.07 in D
Enclosure: IP67
Number of Poles: 3
Number of Wires: 4
- 8 to 2 AWG copper wire terminal accommodation
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise
- 5000 connect and disconnect cycles with load for 16/20 A, 1000 cycles with load and 1000 cycles without load for 30/32/60/63 A and 250 cycles with load and 250 cycles without load for 100/125 A endurance
- Watertight per IEC 60309-1 moisture resistance
- Non-NEMA rating
- Mounting flange, 300 series stainless steel mounting, terminal and assembly screws type 17-1 stainless steel arm spring, solid neoprene gaskets, Rynite SST35 cover arm and cover, nickel plated brass cover screw/rivet material
- Polycarbonate rotating sealing disc, brass ground/phase sleeve, beryllium copper multi-contact insert with silver plating pin/sleeve spring, high impact thermoset contact carrier and retainer material
- Dielectric withstand voltage of 3000 VAC minimum
- 600 Vrms maximum working voltage
Hubbell HBL460R5W Pin and Sleeve Receptacle
Wiring Device-Kellems Pin and Sleeve Receptacle, 3-Phase Grounding Single Flanged Watertight Screw Mount, 600 VAC, 60 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Black, 4.5 in W x 4.07 in D x 5.1 in H
Additional Description: HUBW-HBL460R5W PS, IEC, RECP, 3P4W, 60A 3P 600V,4X/69K W/T
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 60A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Black, Watertight
