Part Number # HBL460R7W
SKU # 118234
HBL460R7W
Hubbell HBL460R7W Pin and Sleeve Receptacle
Part Number # HBL460R7W
SKU # 118234
Hubbell HBL460R7W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL460R7W |
| SKU #: | 118234 |
| Amperage Rating: | 60 A |
| Dimensions: | 4.5 in W x 4.07 in D x 5.1 in H, 5.1 in H x 4.5 in W x 4.07 in D |
| Enclosure: | IP67 |
| Horsepower: | 10, 10 hp |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | 3-Phase Female Grounding Watertight Screw Mount, Female Grounding Watertight |
| Country of origin: | US |
| Material: | Thermoplastic, Thermoplastic/Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585404912 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL460R7W Pin and Sleeve Receptacle
Brand: Hubbell
Part Number: HBL460R7W
Wiring Device-Kellems Pin and Sleeve Receptacle, 3-Phase Female Grounding Watertight Screw Mount, 480 VAC, 60 A, 10 hp, 3 Pole, 4 Wires, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Red, 4.5 in W x 4.07 in D x 5.1 in H
Additional Description: HUBW-HBL460R7W PS, IEC, RECP, 3P4W, 60A 3P 480V,4X/69K W/T
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 60A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Red, Watertight
HBL460R7W Application
High Ampacity Watertight Connection ApplicationsHBL460R7W Item Features
- Self-closing gasketed cover
- Color coded housings for easy identification
- Super tough insulated non-metallic housing
HBL460R7W Standards
UL 498|UL94 Flammability Rating|IEC 309-1/309-2|CSA C22.2 No. 0.17|RoHS CompliantSKU #118234Part Number #HBL460R7WUNSPSC39121406UPC00783585404912

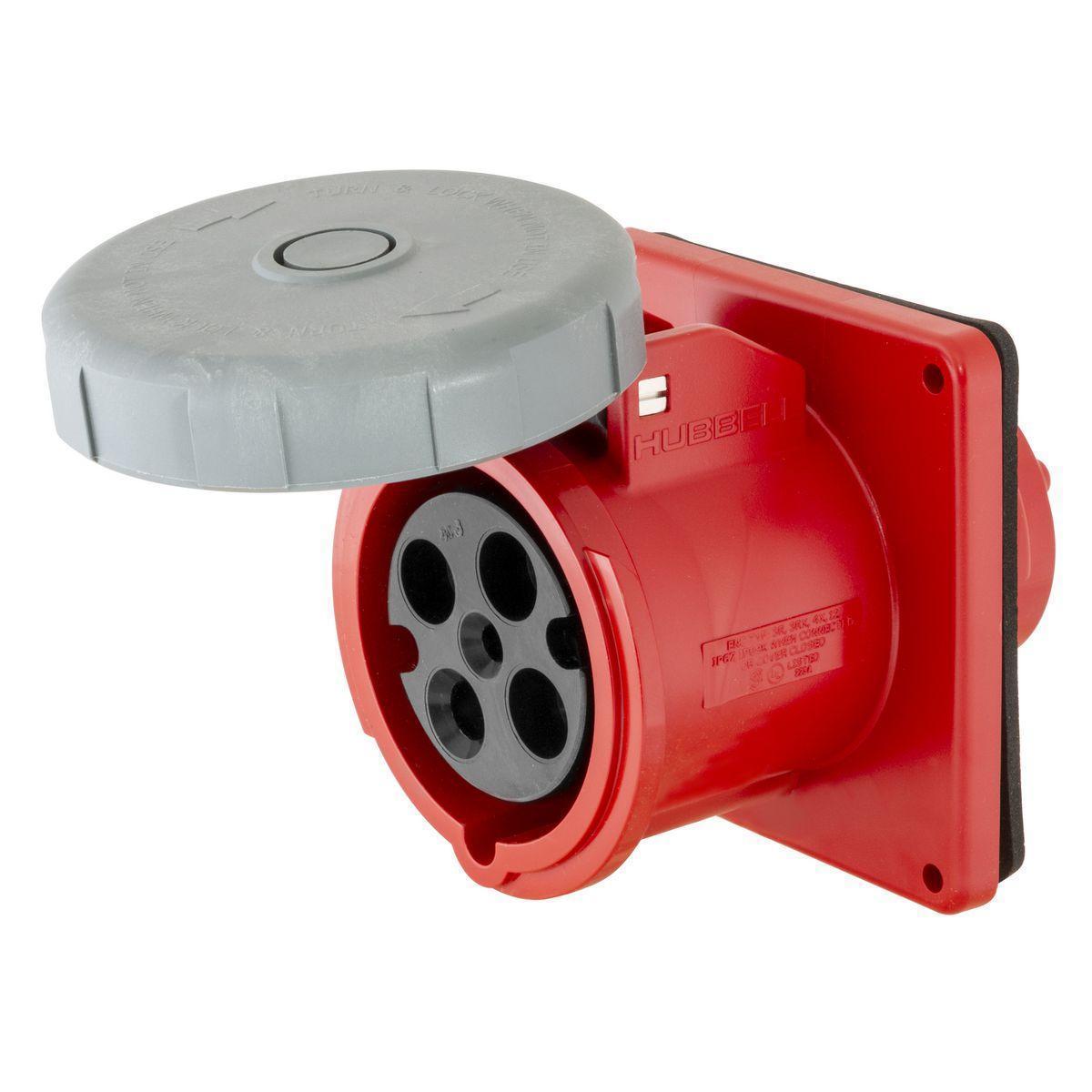

Image provided may only be a representation of final product and may include optional equipment
