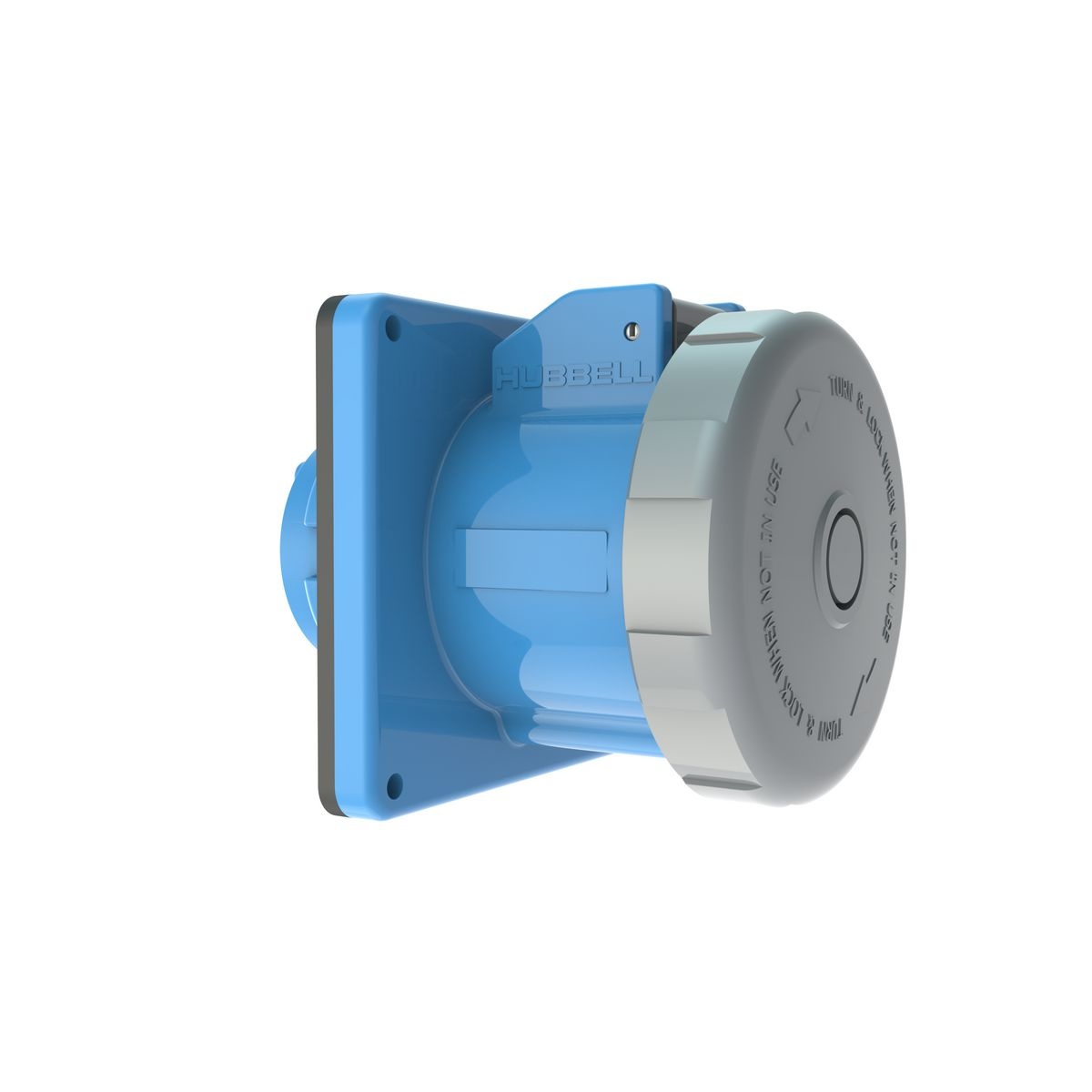

Hubbell HBL460R9W Pin and Sleeve Receptacle
Hubbell HBL460R9W Pin and Sleeve Receptacle
Part #:HBL460R9W
SKU #: 2271787
Key Features
Part #:HBL460R9W
SKU #: 2271787
Brand: Hubbell
Amperage Rating: 60 A
Dimensions: 4.5 in W x 4.07 in D x 5.1 in H, 5.1 in H x 4.5 in W x 4.07 in D
Enclosure: IP67
Horsepower: 5, 5 hp
Number of Poles: 3
- 8 to 2 AWG copper wire terminal accommodation
- 600 VAC maximum working voltage
- High impact thermoset contact carrier and retainer
- Watertight per IEC 60309-1 moisture resistance
- Stainless steel (300 series) terminal screws, assembly screws
- Solid neoprene gaskets
- Rynite SST35 cover arm
- Nickel plated brass cover screw/rivet
- Polycarbonate rotating sealing disc
- Stainless steel (300 series) mounting screws
- Suitable for use on a circuit capable of delivering not more than 10000 RMS symmetrical amperes at the voltage rating of the receptacle short circuit withstand
- All materials are UV stabilized UV resistance
- This device standard calls out singly rated, non-interchangeable configuration for every voltage and type of service
- 7/32 in Dia hole
Hubbell HBL460R9W Pin and Sleeve Receptacle
Wiring Device-Kellems Pin and Sleeve Receptacle, 3-Phase Female Grounding Single Flanged Watertight Screw Mount, 250 VAC, 60 A, 5 hp, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Blue, 4.5 in W x 4.07 in D x 5.1 in H
Additional Description: HUBW-HBL460R9W PS, RECPT, 3P4W, 60/63A 200-250V,4X/69K
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 60A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Blue, Watertight
