Part Number # HBL4700
SKU # 269081
Image Disclaimers Message
HBL4700

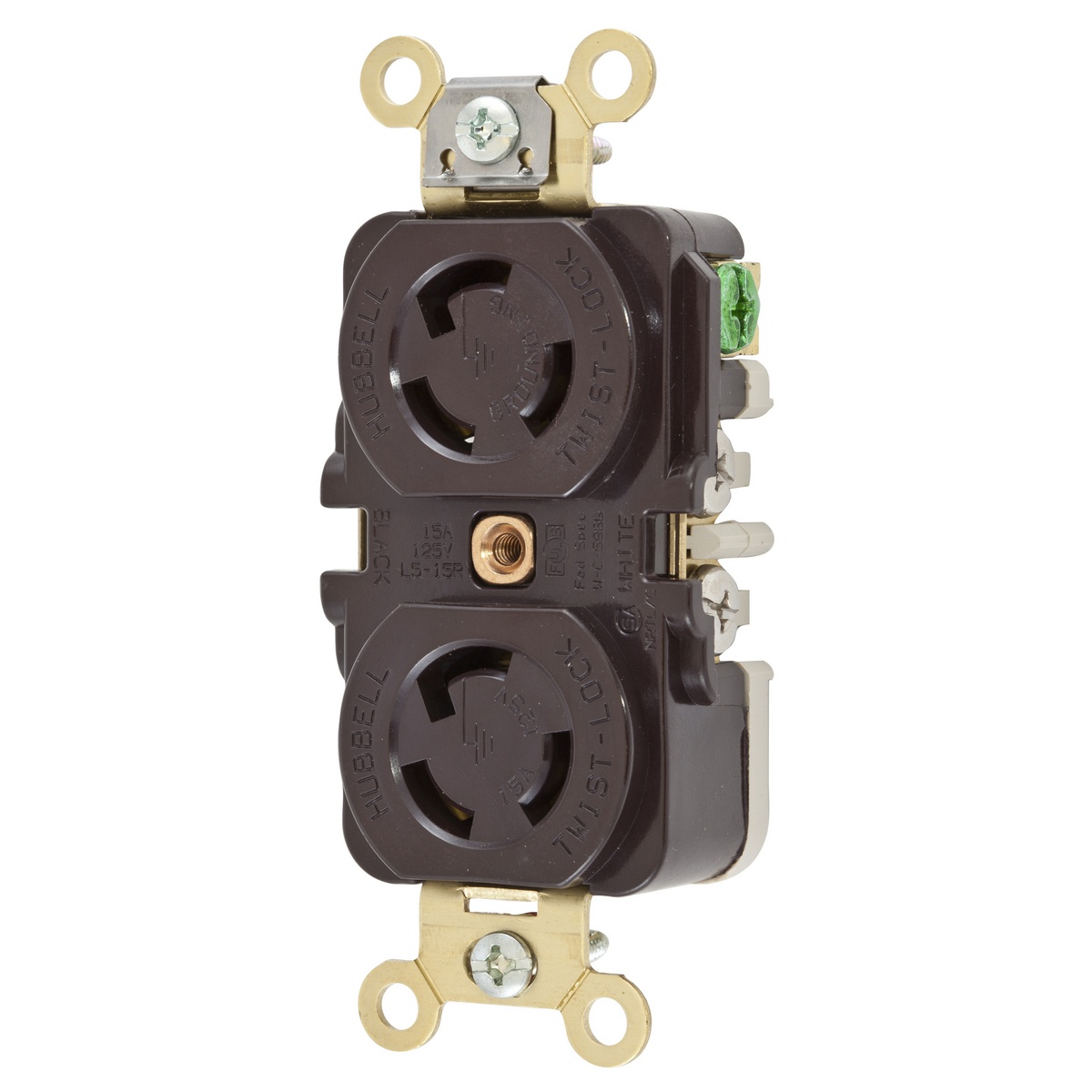

Hubbell HBL4700 Locking Receptacle
Part Number # HBL4700
SKU # 269081
$43.29 / Each
Typical price:$55.90 / Each
Hubbell HBL4700 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL4700 |
| SKU #: | 269081 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 2.73 in L x 1.7 in D, 3.29 x 1.7 x 1.17 in |
| Horsepower: | 1/2, 1/2 hp |
| NEMA Rating: | L5-15R, NEMA L5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Grounding Heavy Duty Single Screw Mount, Grounding Heavy Duty Single |
| Color: | Brown |
| Country of origin: | US |
| Material: | Composite/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585002309 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$43.29 / Each
Typical price:$55.90 / Each
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock Locking Receptacle, 1-Phase Grounding Heavy Duty Single Screw Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, L5-15R NEMA Rating, Industrial Grade, -40 to 75 deg C, Screw Terminal, Thermoplastic, Brown, 3.29 x 1.7 x 1.17 in
HBL4700 Includes
CoverHBL4700 Item Features
- Reinforced thermoplastic construction
- Single piece, all brass contacts
- Single point break-off tabs
- Mounting strap tabs lock the body and base together
- https://youtu.be/1DnPJu3QNw0
HBL4700 Standards
UL 498|Federal Specification W-C-596|CSA C22.2 No. 42|NEMA WD1/WD5|RoHS CompliantSKU #269081Part Number #HBL4700UNSPSC39121406UPC00783585002309
