HBL4710RT

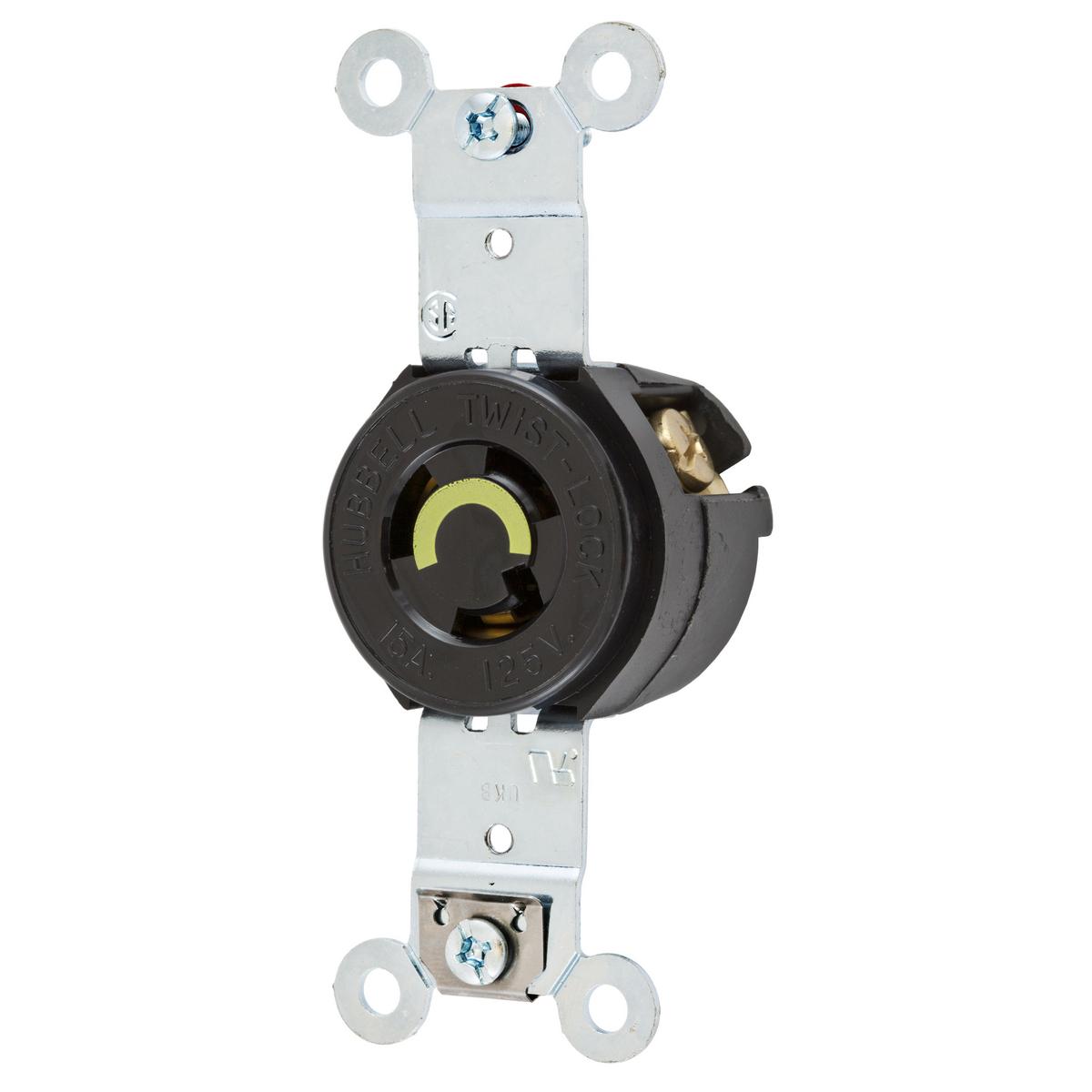

Hubbell HBL4710RT Locking Receptacle
Part Number # HBL4710RT
SKU # 2344967
Hubbell HBL4710RT Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL4710RT |
| SKU #: | 2344967 |
| Amperage Rating: | 15 A |
| Dimensions: | 3.28 x 1.53 x 1.27 in |
| Horsepower: | 1/2 hp |
| NEMA Rating: | L5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Ring |
| Type: | 1-Phase Flush Mount Heavy Duty Grounding Standard Single Screw Mount |
| Country of origin: | US |
| Material: | Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585318578 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL4710RT Locking Receptacle
Brand: Hubbell
Part Number: HBL4710RT
Hubbell Wiring Device-Kellems Twist-Lock Locking Receptacle, 1-Phase Flush Mount Heavy Duty Grounding Standard Single Screw Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, L5-15R NEMA Rating, Industrial Grade, -40 to 75 deg C, Ring Terminal, Thermoplastic, Black, 3.28 x 1.53 x 1.27 in
Additional Description: HUBW-HBL4710RT (N) LKG SGL RCPT RING-T 15A/125V,L5-15R,BK NON-CANCELABLE, NON-RETURNABLE 15A/125V,L5-15R,BK.
Catalog Description: Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15R, Ring Terminal Connection, Black.
HBL4710RT Application
Dry Locations and Indoor ApplicationsHBL4710RT Item Features
- Reinforced thermoplastic construction
- Single piece, all brass contacts
- All terminals are back and side wired
- Brass mounting strap with stainless steel grounding clip
- https://youtu.be/1DnPJu3QNw0
HBL4710RT Standards
RoHS Compliant|UL 498|CSA C22.2 No. 42/0.17|UL94 Flammability Rating|Federal Specification W-C-596|NEMA WD1/WD5SKU #2344967Part Number #HBL4710RTUNSPSC39121406UPC00783585318578
Image provided may only be a representation of final product and may include optional equipment
