Part Number # HBL5100C7W
SKU # 2263792
HBL5100C7W

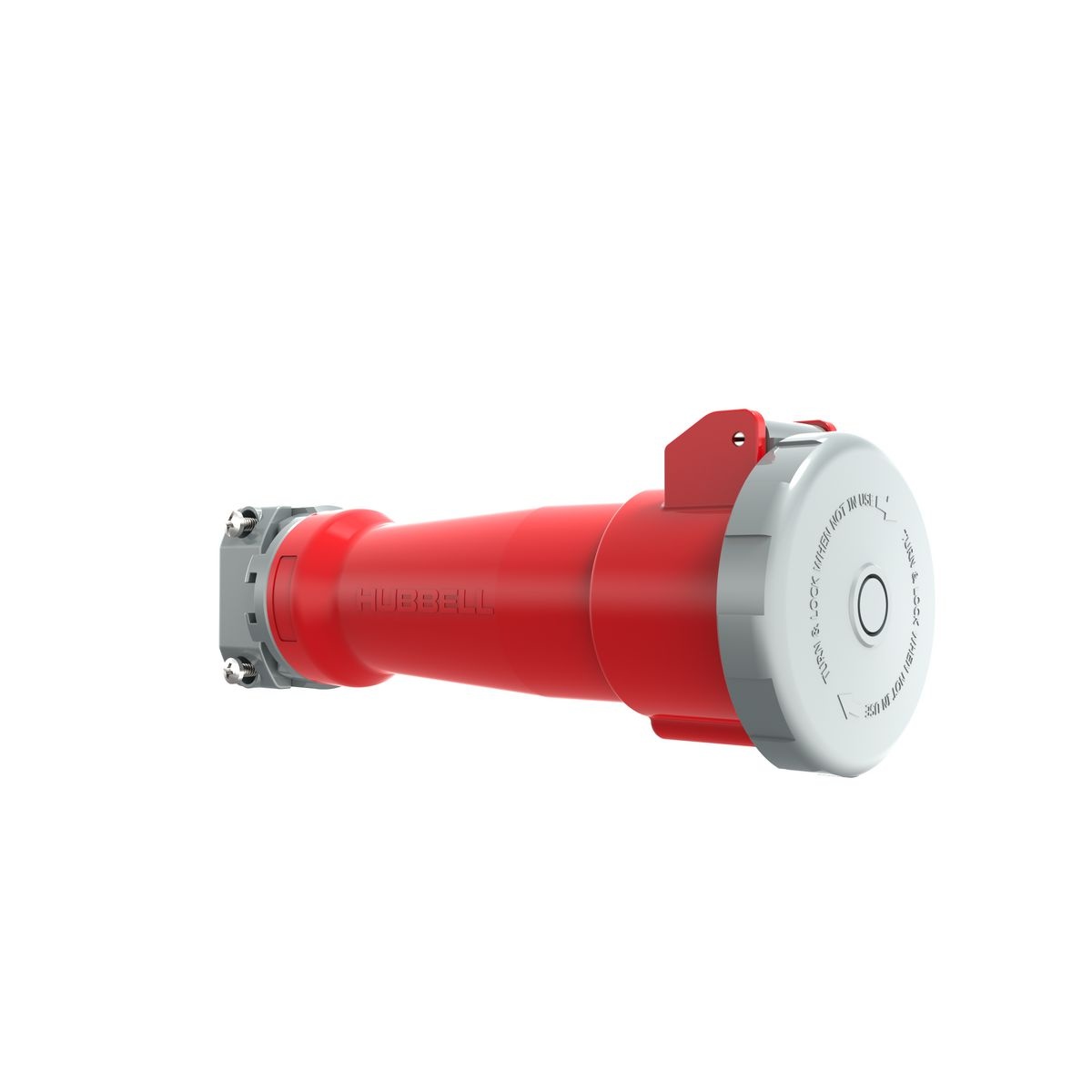

Hubbell HBL5100C7W Pin and Sleeve Connector
Part Number # HBL5100C7W
SKU # 2263792
Hubbell HBL5100C7W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL5100C7W |
| SKU #: | 2263792 |
| Amperage Rating: | 100, 100 A |
| Dimensions: | 5.71 in Dia x 13.57 in L |
| Enclosure: | IP67 |
| Number of Poles: | 4 |
| Number of Wires: | 5 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | Female Grounding Insulated Non-NEMA Standard Watertight, Female Grounding Insulated Non-NEMA Standard Watertight Cord Mount |
| Country of origin: | PR, US |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585405056 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL5100C7W Pin and Sleeve Connector
Brand: Hubbell
Part Number: HBL5100C7W
Wiring Device-Kellems Pin and Sleeve Connector, Female Grounding Insulated Non-NEMA Standard Watertight Cord Mount, 277/480Y VAC, 100 A, 4 Pole, 5 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Red, 5.71 in Dia x 13.57 in L
Additional Description: HUBW-HBL5100C7W PS,IEC, CONN, 4P5W, 100A 277/480V,4X/69K W/T
Catalog Description: Heavy Duty IEC Pin and Sleeve Industrial Grade Female Connector Body, 100A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Watertight
HBL5100C7W Application
High Ampacity Connections ApplicationsHBL5100C7W Item Features
- Self-closing gasketed cover
- Color coded housings for easy identification
- Super tough insulated non-metallic housing
HBL5100C7W Standards
IEC 309-1/309-2|CSA File No. LR280C|RoHS Compliant|UL 498/1682/1686C2 File No. E146033SKU #2263792Part Number #HBL5100C7WUNSPSC39121421UPC00783585405056
Image provided may only be a representation of final product and may include optional equipment
