- Corrosion-resistant self-closing gasketed cover
- 0.33 to 0.83 in cord clamp range
- Supertough insulated non-metallic housing
- Watertight neoprene glad seal to prevent water ingress from entering at cable entrance
- Sequential contact engagement to prevent a momentary over voltage on components
- Multi-contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise
- Color coded housings by voltage for easy identification
- High impact thermoset contact carrier and retainer
- 300 series stainless steel terminal screws, 300 series stainless steel terminal screws assembly screws, stainless steel (17-1 type) arm spring
- Neoprene gasket
- Nickel plated brass cover screw/rivet
- Polycarbonate rotating sealing disc and brass ground/phase sleeve
- Identification and ratings are a part of the external label and molded into the receptacle mount product identification
Specifications
Brand: Hubbell
Amperage Rating: 20, 20 A
Dimensions: 8.54 in L x 3.94 in W
Enclosure: IP67
Horsepower: 1/2 hp
Number of Poles: 4
Number of Wires: 5
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Pressure Screw
Type: 3-Phase 5-Wire Female Grounding Heavy Duty Insulated Non-NEMA Standard Watertight, 3-Phase 5-Wire Female Grounding Heavy Duty Insulated Non-NEMA Standard Watertight Cord Mount
Voltage Rating: 120/208Y VAC
Color: Blue
Country of origin: PR, US
Material: Composite
Manufacturer Name: Hubbell
UNSPSC: 39121421
UPC: 00783585405315

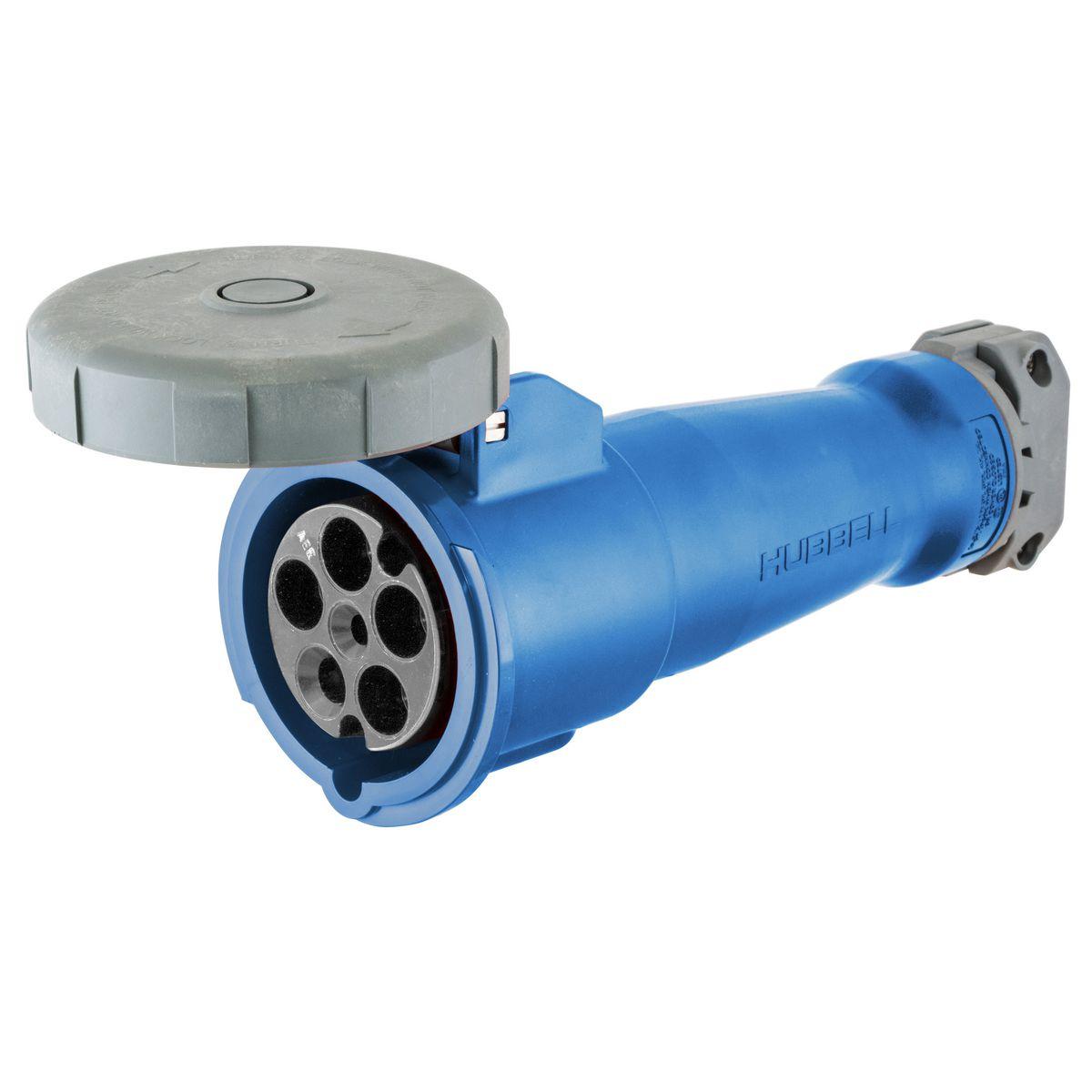

Hubbell HBL520C9W Pin and Sleeve Connector
Wiring Device-Kellems Pin and Sleeve Connector, 3-Phase 5-Wire Female Grounding Heavy Duty Insulated Non-NEMA Standard Watertight Cord Mount, 120/208Y VAC, 20 A, 4 Pole, 5 Wires, Industrial Grade, -40 to 75 deg C, Pressure Screw Terminal, Composite, Blue, 8.54 in L x 3.94 in W
Additional Description: HUBW-HBL520C9W PS,IEC, CONN,4P5W,16/20A 120/208V,4X/69K W/T CONNECTOR
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 20A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Blue, Watertight
Item FeaturesHigh Ampacity Connections Applications
Item Features
Item FeaturesRoHS Compliant|UL 498 File No. E146033|CSA File No. LR280C|IEC 309-1/309-2/60309-1/60309-2|CSA Certified
