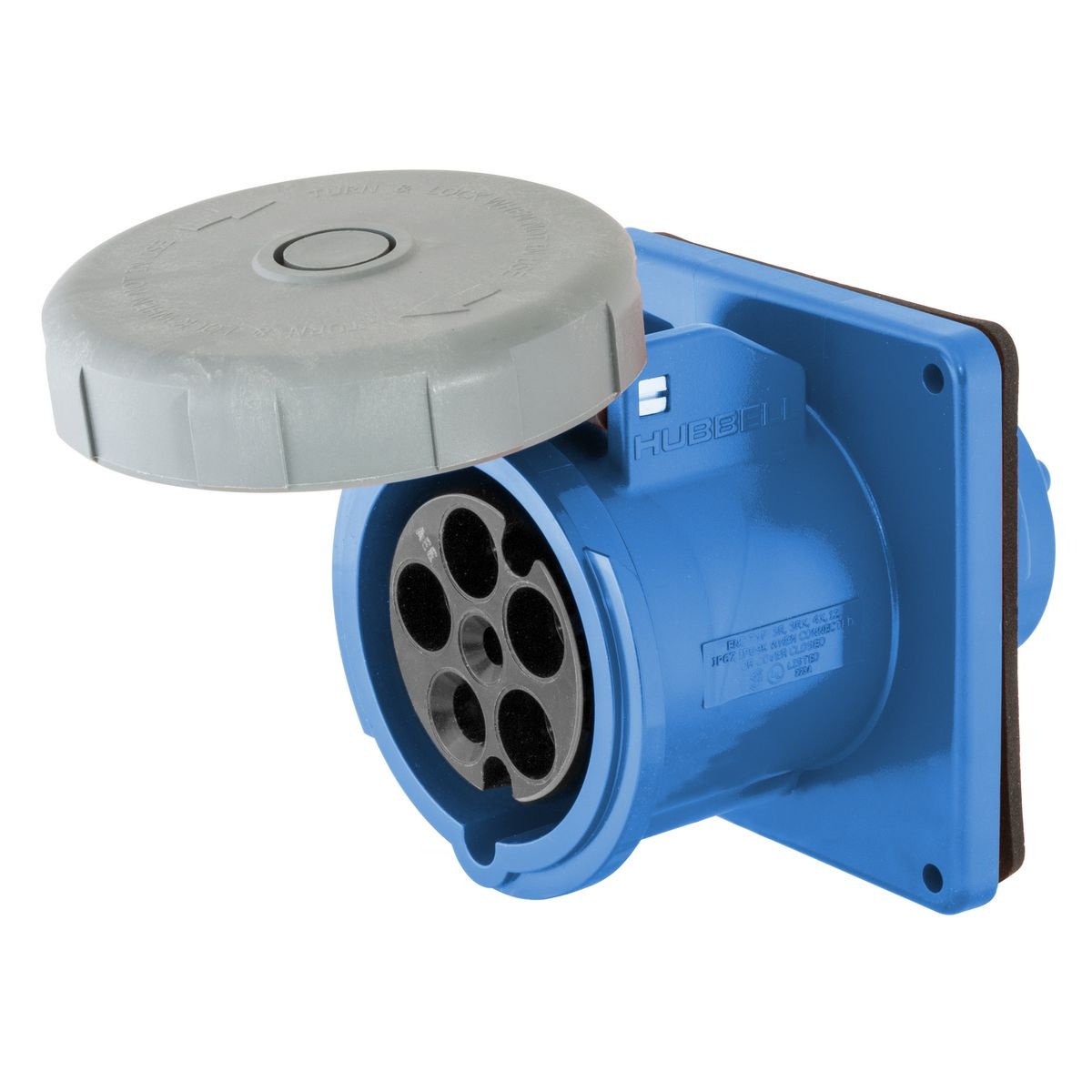

Hubbell HBL520R9W Pin and Sleeve Receptacle
Image Disclaimers Message
Hubbell HBL520R9W Pin and Sleeve Receptacle
Hubbell HBL520R9W Pin and Sleeve Receptacle
Part #:HBL520R9W
SKU #: 2157850
Key Features
Part #:HBL520R9W
SKU #: 2157850
Brand: Hubbell
Amperage Rating: 20, 20 A
Dimensions: 3-3/4 in L x 3-3/4 in W
Enclosure: IP67
Horsepower: 1/2 hp
Number of Poles: 4
- Rugged one piece housing, thick wall construction protects internal components, eliminates joints preventing infiltration of contaminants
- Thermoset properties provide dimensional stability for this critical assembly
- Feature patented swiveling pressure pad terminal screws and prevent damage to conductor strands
- Corrosion resistant self-closing gasketed cover
- Sequential contact engagement to prevent a momentary over voltage on components
- Super tough insulated non-metallic house for impact and chemical resistance
- Multi-contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise
- Zytel 101 nylon housing, mounting flange, stainless steel (17-1 type) arm spring, Rynite SST35 cover and arm, nickel plated brass cover screw/rivet
- Stainless steel (300 series) mounting screws, terminal screws, assembly screws, pin/sleeve spring and hinge spring
- High impact thermoset contact carrier and retainer
- Neoprene gasket
- Amperage/voltage rating and catalog number molded-in housing for easy identification
- Polycarbonate rotating sealing disc and brass ground/phase sleeve
- Dielectric withstand voltage of 3000 VAC minimum
- 600 Vrms maximum working voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- 10000 cycles mechanical, 6000 cycles electrical endurance
- Terminals identified in accordance with North American and international conventions
- Identification and ratings are a part of the external label and molded into the receptacle mount product identification
Hubbell HBL520R9W Pin and Sleeve Receptacle
Wiring Device-Kellems HBL Pin and Sleeve Receptacle, 3-Phase Flanged Grounding Non-NEMA Single Standard Watertight Screw Mount, 120/208Y VAC, 20 A, 4 Pole, 5 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Blue, 3-3/4 in L x 3-3/4 in W
Additional Description: HUBW-HBL520R9W PS,IEC,RCPT,4P5W,16/20A 120/208V,4X/69K W/T RECEPTACLE
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female Receptacle, 20A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Blue, Watertight
