Brand: Hubbell

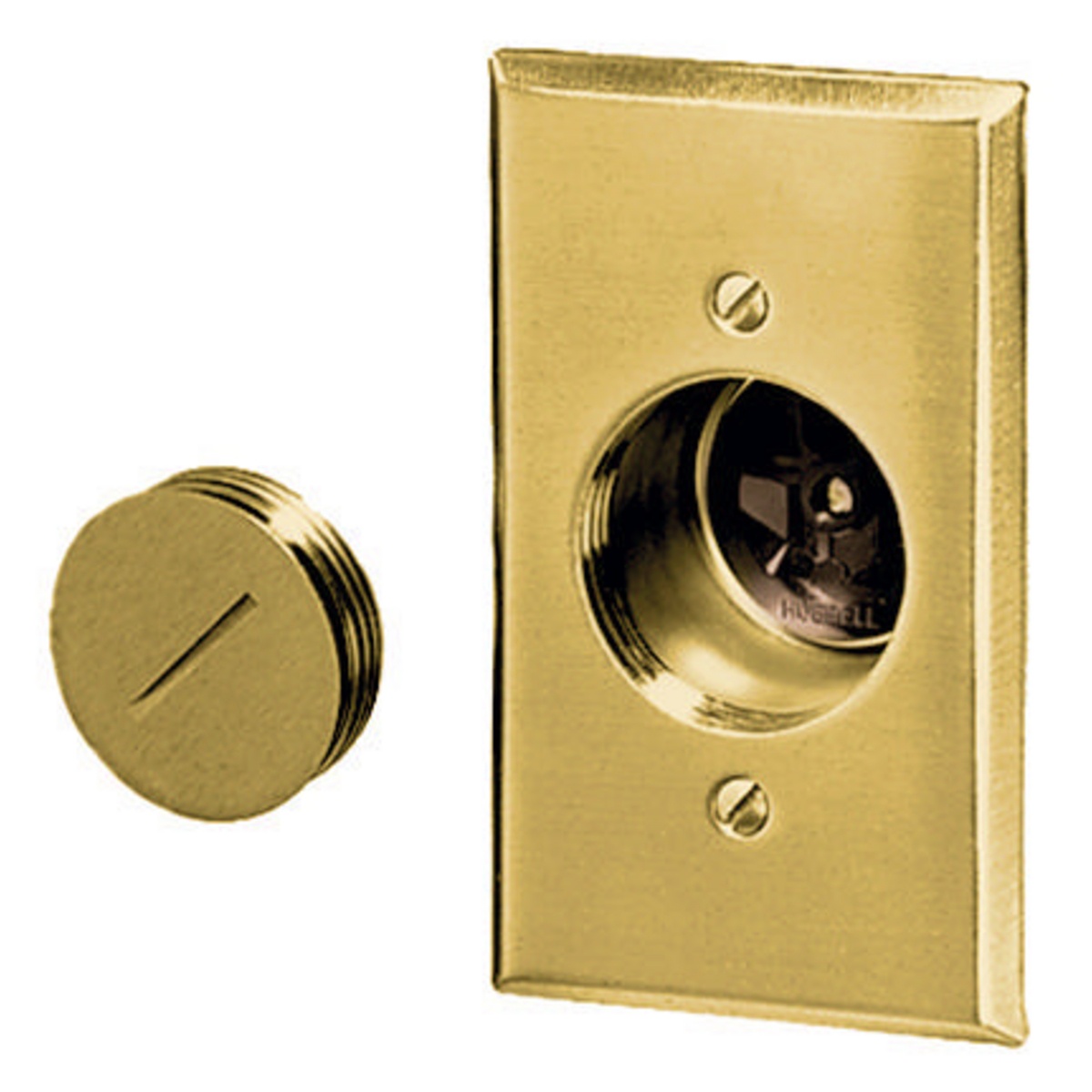

Hubbell HBL5236 Display Receptacle
Image Disclaimers Message
Brand: Hubbell
Hubbell HBL5236 Display Receptacle
Brand: Hubbell
Hubbell HBL5236 Display Receptacle
Part #:HBL5236
SKU #: 2278106
$95.21/EA
Key Features
Part #:HBL5236
SKU #: 2278106
Brand: Hubbell
Amperage Rating: 15, 15 A
Dimensions: 4.5 in H x 2.75 in W x 1.8 in D, 4.5 x 2.75 x 1.8 in
Horsepower: 1/2 hp
NEMA Rating: 5-15R
Number of Poles: 2
$95.21/EA
- #8-32 brass nickel plated for neutral terminal screw
- 0.032 in brass power contact
- #8-32 brass, multiple drive (green) ground screw
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
- Certified for current interrupting at full rated current
- Withstands 2000 VAC minimum dielectric voltage
- Steel zinc plated mounting screw
- Ratings are a permanent part of the device housing
- Phenolic top and base
Specifications
Brand: Hubbell
Amperage Rating: 15, 15 A
Dimensions: 4.5 in H x 2.75 in W x 1.8 in D, 4.5 x 2.75 x 1.8 in
Horsepower: 1/2 hp
NEMA Rating: 5-15R
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Screw
Type: 1-Phase Grounding Standard Sized, 1-Phase Grounding Standard Sized Screw Mount
Voltage Rating: 125, 125 VAC
Color: Brass, Brass/Black
Country of origin: CN
Material: Thermoplastic, Thermoplastic/Composite
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585013787
Item FeaturesIndoor Dry Environment
Item Features
Item FeaturesCSA C22.2 No. 42|NEMA WD1/WD5/WD6|UL 498 File No. E2186
