Part Number # HBL5251
SKU # 18619
Image provided may only be a representation of
final product and may include optional equipment
HBL5251

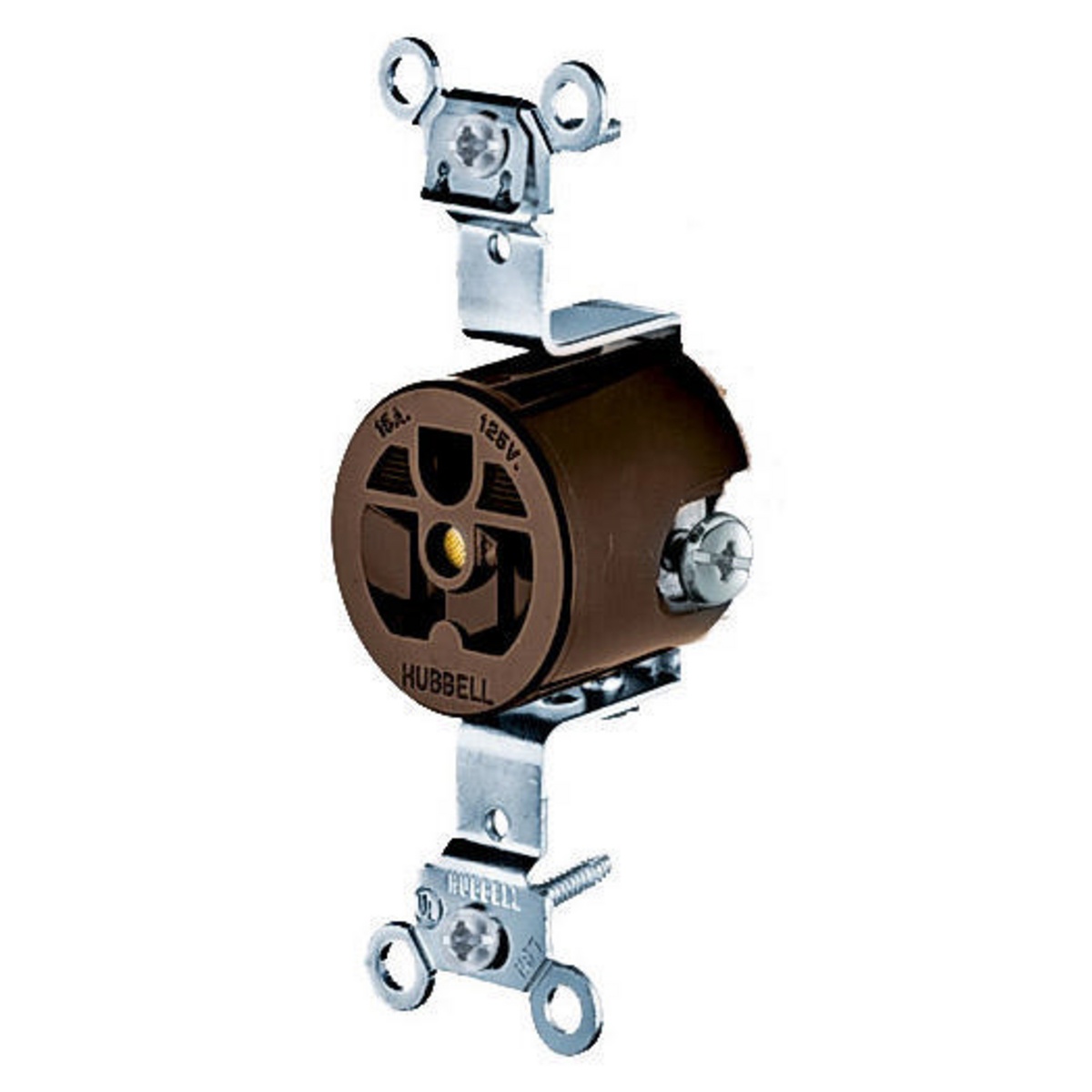

Hubbell HBL5251 Straight Blade Receptacle
Part Number # HBL5251
SKU # 18619
$16.50 / Each
Typical price:$21.35 / Each
Hubbell HBL5251 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL5251 |
| SKU #: | 18619 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 3.28 in H x 0.92 in D, 3.28 in H x 1.39 in W x 1.13 in D |
| Horsepower: | 1/2, 1/2 hp |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Side Wire, Side Wired |
| Type: | 1-Phase Extra Heavy Duty Self-Grounding Single Standard, Standard |
| Country of origin: | US |
| Material: | Composite/Thermoplastic, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585013817 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$16.50 / Each
Typical price:$21.35 / Each
Quantity:
- Hubbell HBL Straight Blade Receptacle, Standard, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Heavy Duty/Specification Grade, -40 to 75 deg C, Side Wire Terminal, Nylon, Brown, 3.28 in H x 0.92 in D Dimensions
HBL5251 Item Features
- 14 to 10 AWG copper stranded or solid conductor only
- Single receptacle style
- 0.031 in phosphor bronze power contact
- Withstands 2000 VAC minimum dielectric voltage
- Reinforced PET base material
- 8 to 32 brass/nickel plated for neutra
HBL5251 Standards
CSA 22.2 NO 42|Federal Specification W-C-596G|UL E2186/498SKU #18619Part Number #HBL5251UNSPSC39121406UPC00783585013817
