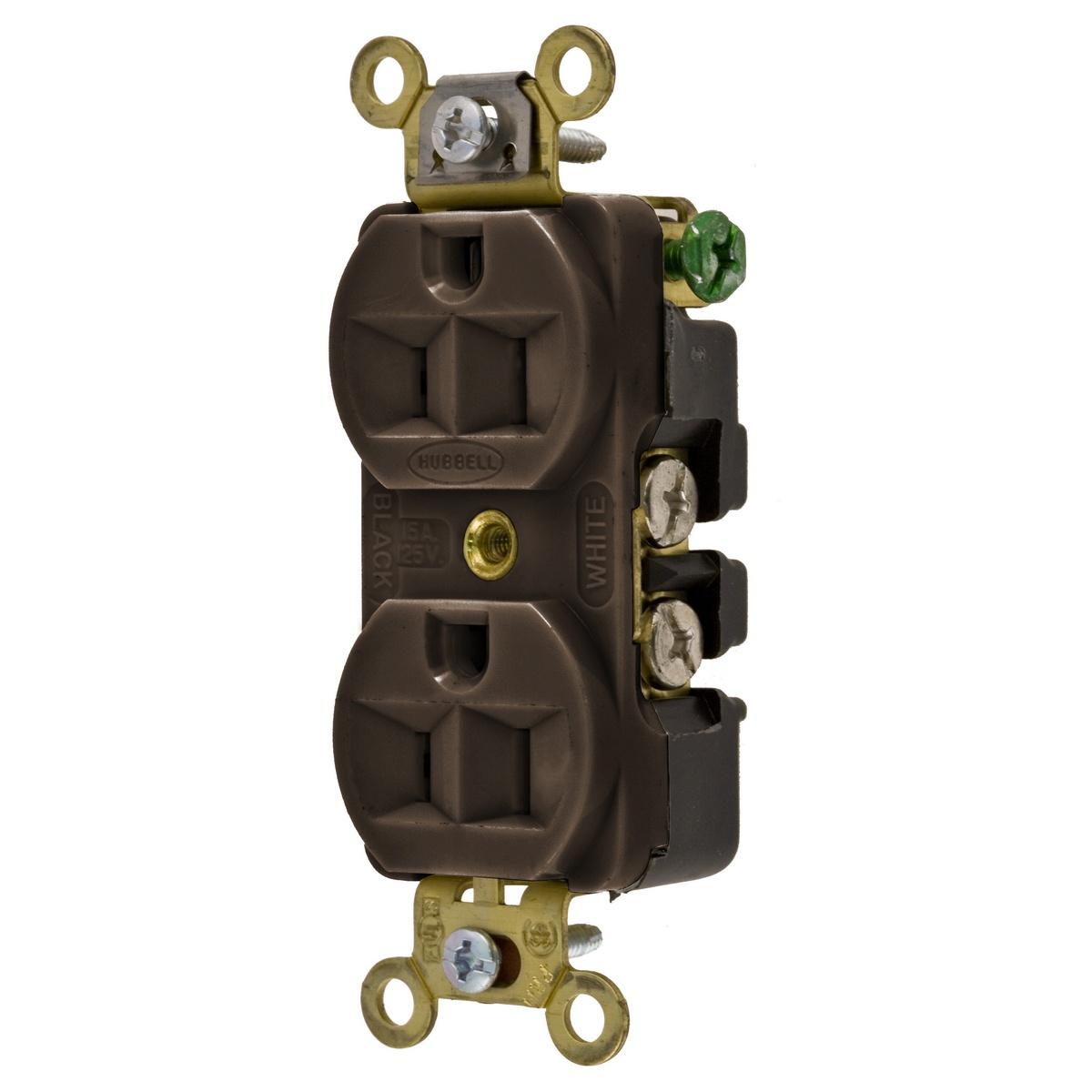

Hubbell HBL5252 Straight Blade Receptacle
Image Disclaimers Message
Hubbell HBL5252 Straight Blade Receptacle
Hubbell HBL5252 Straight Blade Receptacle
Part #:HBL5252
SKU #: 18621
Key Features
Part #:HBL5252
SKU #: 18621
Brand: Hubbell
Amperage Rating: 15, 15 A
Dimensions: 3.28 x 1.33 x 1.05 in, 3.281 in H x 1.328 in W x 1.047 in D
Horsepower: 1/2, 1/2 hp
NEMA Rating: 5-15R, NEMA 5-15R
Number of Poles: 2
- Withstands 2000 VAC dielectric voltage
- Certified for current interrupting at full rated current
- Slender compact design
- Brass mounting strap
- Triple wipe contacts
- 14 to 10 AWG solid or stranded copper conductor terminal accommodation
- #8-32 brass multiple drive (green) ground screw
- Nylon top material
- 0.037 in phosphor bronze power contacts
- 0.05 in brass mounting strap
- Stainless steel auto ground clip
- Steel zinc plated mounting screw
- Traditional face
- Made of reinforced PET
- Traditional duplex receptacle
- Indoor dry unless protected by additional means
Hubbell HBL5252 Straight Blade Receptacle
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Compact Duplex Extra Heavy Duty Self-Grounding Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Side Wired Terminal, Thermoplastic/Composite, Brown, 3.28 x 1.33 x 1.05 in
Additional Description: HUBW-HBL5252 DUP RCPT, IND GRD, 15A 125V, 5-15R, BR BR 5-15R
Catalog Description: Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Brown, Single Pack.
