Part Number # HBL5252BK
SKU # 2234193
Image Disclaimers Message
HBL5252BK

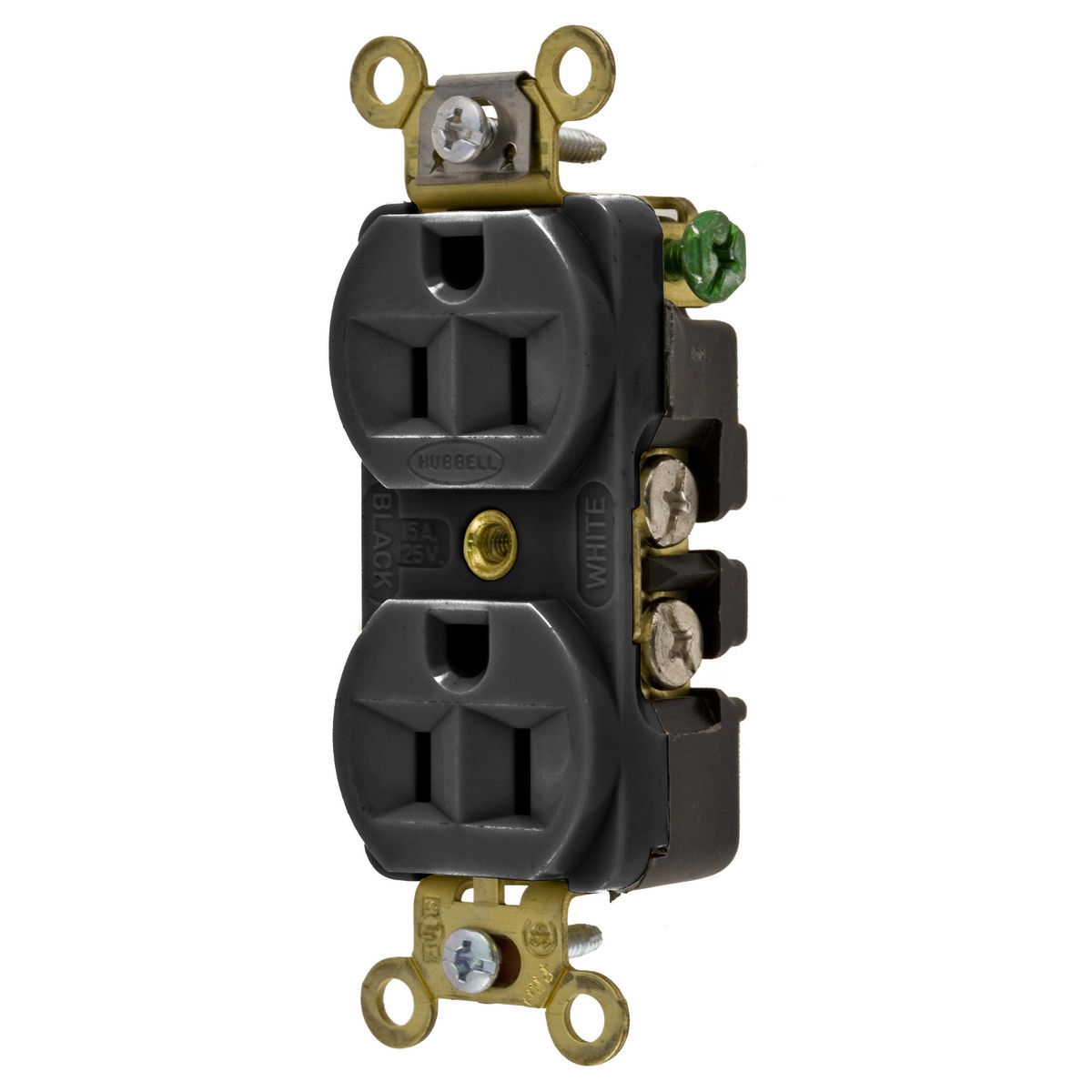

Hubbell HBL5252BK Straight Blade Receptacle
Part Number # HBL5252BK
SKU # 2234193
$17.86 / Each
Typical price:$23.10 / Each
Hubbell HBL5252BK Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL5252BK |
| SKU #: | 2234193 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 3.28 x 1.33 x 1.05 in, 3.281 in H x 1.328 in W x 1.047 in D |
| Horsepower: | 1/2, 1/2 hp |
| NEMA Rating: | 5-15R, NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Back/Side Wired, Side Wired |
| Type: | 1-Phase Compact Duplex Extra Heavy Duty Self-Grounding Screw Mount, Compact Duplex Extra Heavy Duty Self-Grounding |
| Color: | Black |
| Country of origin: | PR, US |
| Material: | Composite/Thermoplastic, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585434865 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$17.86 / Each
Typical price:$23.10 / Each
Quantity:
- Hubbell Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Compact Duplex Extra Heavy Duty Self-Grounding Screw Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Black, 3.28 x 1.33 x 1.05 in
HBL5252BK Item Features
- Slender/compact design
- Brass Mounting Strap
- Triple wipe contacts
HBL5252BK Standards
UL 498, File No. E2186 Listed|UL 94-V-2 Flammability Rating|CSA 22.2 No. 42, 285|NEMA WD1/WD5|RoHS CompliantSKU #2234193Part Number #HBL5252BKUNSPSC39121406UPC00783585434865
