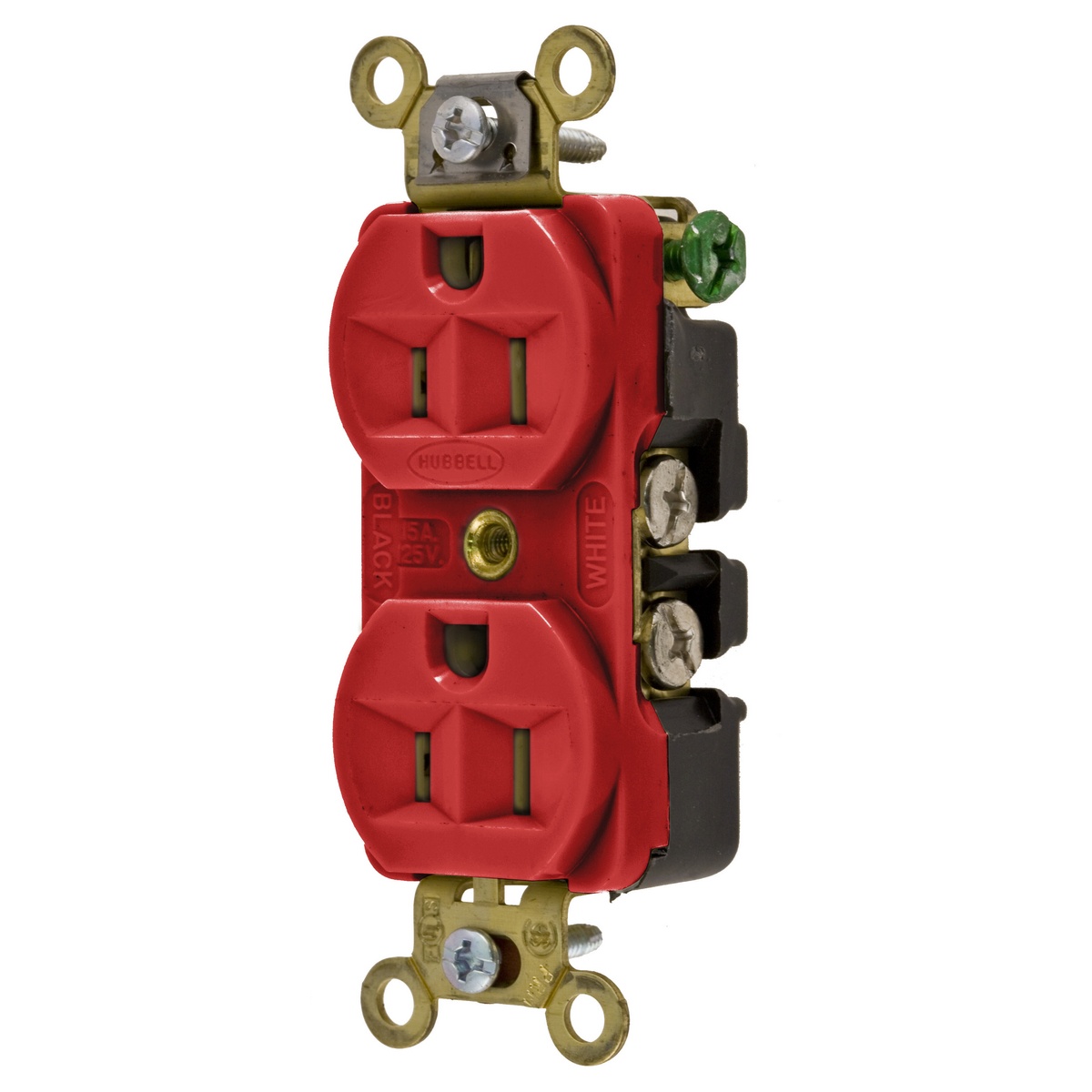

Hubbell HBL5252R Straight Blade Receptacle
Hubbell HBL5252R Straight Blade Receptacle
Part #:HBL5252R
SKU #: 2234194
Key Features
Part #:HBL5252R
SKU #: 2234194
Brand: Hubbell
Amperage Rating: 15, 15 A
Dimensions: 3.28 x 1.33 x 1.05, 3.28 x 1.33 x 1.05 in, 3.281 in H x 1.328 in W x 1.047 in D
Horsepower: 1/2, 1/2 hp
NEMA Rating: 5-15R, NEMA 5-15R
Number of Poles: 2
- Finder groove face
- #8-32 brass nickel plated for neutral terminal screw
- #8-32 brass multiple drive (green) ground screw
- Reinforced PET base
- 0.037 in phosphor bronze power contacts
- 0.05 in brass mounting strap
- Stainless steel auto ground clip
- 14 to 10 AWG solid or stranded copper conductor terminal accommodation
- Slender/compact design
- Brass mounting strap
- Triple wipe power contacts
- 3-wires grounding
- Traditional duplex receptacle
- Indoor dry unless protected by additional means
Hubbell HBL5252R Straight Blade Receptacle
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Compact Duplex Extra Heavy Duty Self-Grounding Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Side Wired Terminal, Thermoplastic/Composite, Red, 3.28 x 1.33 x 1.05 in
Additional Description: HUBW-HBL5252R (N) DUP RCPT, IND GRD, 15A 125V, 5-15R, RD NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Red, Single Pack
