Part Number # HBL5262SA
SKU # 2311121
HBL5262SA

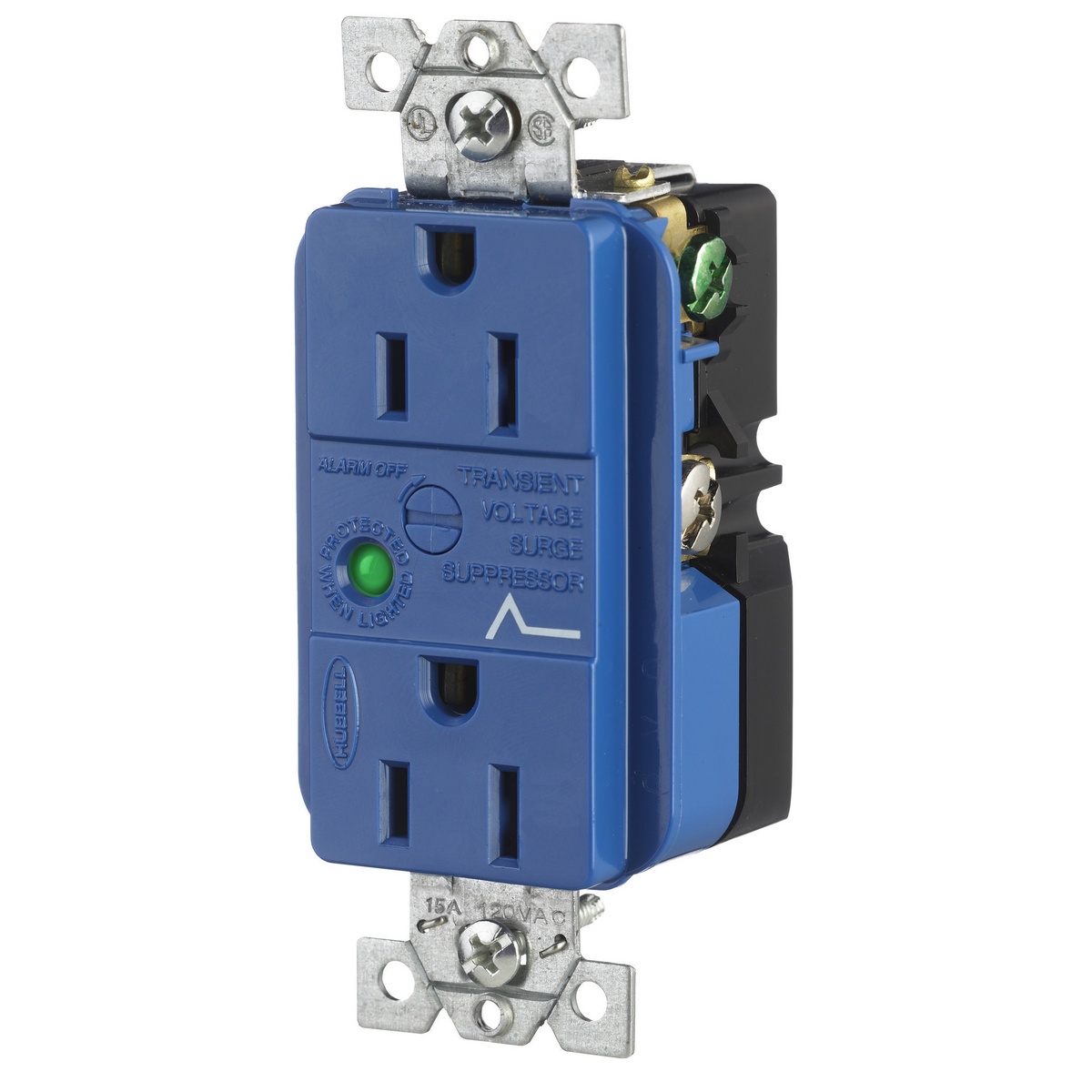

Hubbell HBL5262SA Straight Blade Receptacle
Part Number # HBL5262SA
SKU # 2311121
Hubbell HBL5262SA Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL5262SA |
| SKU #: | 2311121 |
| Amperage Rating: | 15, 15 A |
| Class: | Common/Normal Mode |
| Connection: | Screw Terminal |
| Dimensions: | 4.04 in H x 1.72 in W x 1.6 in D |
| Environmental Conditions: | UL 94 V-0 Flammability Rating |
| Frequency Rating: | 60, 60 Hz |
| Horsepower: | 1/2 |
| Mounting: | Threaded |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Operating Temperature: | 32 to 140 deg F |
| Outlet: | Straight Blade |
| Phase: | 1, 1 ph |
| Response Time: | 5 ns |
| Series: | Decorator |
| Size: | 1.72 in W x 1.6 in D x 4.04 in H |
| Temperature Rating (Degrees F): | -40 to 75 |
| Terminal Type: | Screw |
| Type: | Duplex Grounding |
| Type of Indicators: | LED/Audible Alarm |
| Country of origin: | CN |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121610 |
| UPC: | 00783585060170 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL5262SA Straight Blade Receptacle
Brand: Hubbell
Part Number: HBL5262SA
Wiring Device-Kellems SpikeShield Straight Blade Receptacle, Duplex Grounding, Series: Decorator, 125 VAC, 15 A, 60 Hz Frequency, 1 ph, Straight Blade Outlet, Class: Common/Normal Mode, 5 ns Response, Indicators: LED/Audible Alarm, Screw Terminal Connection, Threaded Mounting, 1.72 in W x 1.6 in D x 4.04 in H Size, 32 to 140 deg F Operating, Composite, Blue, Environmental Conditions: UL 94 V-0 Flammability Rating
Additional Description: HUBW-HBL5262SA DUP SPD RCPT, 15A 125V, 5-15R, BL, ALARM
Catalog Description: Surge Protective Devices, SPIKESHIELD TVSS Duplex Receptacle with Light and Alarm, 15A 125V, 5-15R, Blue
HBL5262SA Item Features
- Automatic self-grounding staple
- Distinctive surge symbol provides quick identification
- Power-on indicator light verifies that power is available
- Alert alarm sounds when surge protection is no longer functioning
HBL5262SA Standards
UL 498|UL 1449|File No. E2186|UL 94-V-2|UL 94 V-0 Flammability RatingSKU #2311121Part Number #HBL5262SAUNSPSC39121610UPC00783585060170
