Part Number # HBL5266CAT
SKU # 18230
Image Disclaimers Message
HBL5266CAT

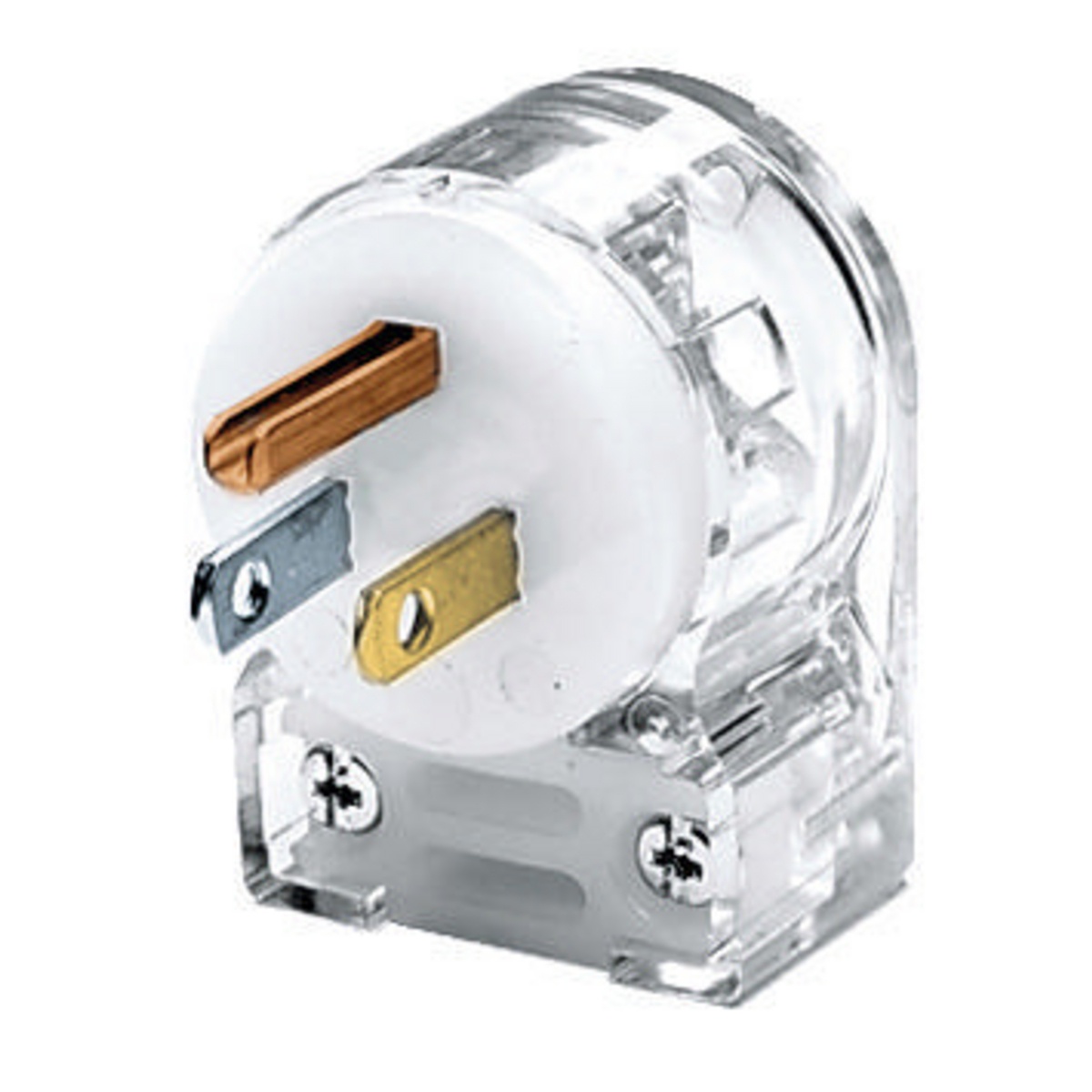

Hubbell HBL5266CAT Straight Blade Plug
Part Number # HBL5266CAT
SKU # 18230
Hubbell HBL5266CAT Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL5266CAT |
| SKU #: | 18230 |
| Amperage Rating: | 15, 15 A |
| Cord Diameter: | 0.325 to 0.655, 0.325 to 0.655 in |
| Dimensions: | 1.52 in W x 1.21 in D x 2.08 in H, 2.08 in H x 1.52 in W x 1.21 in D |
| Enclosure: | IP20 |
| NEMA Rating: | 5-15P, NEMA 5-15P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase 4-Position Angled Grounding Heavy Duty Male Portable Standard, 1-Phase 4-Position Angled Grounding Heavy Duty Male Portable Standard Cord Mount |
| Color: | Clear, Transparent |
| Country of origin: | PR |
| Material: | Composite, Polycarbonate |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585173108 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL5266CAT Straight Blade Plug
Brand: Hubbell
Part Number: HBL5266CAT
Wiring Device-Kellems Insulgrip Straight Blade Plug, 1-Phase 4-Position Angled Grounding Heavy Duty Male Portable Standard Cord Mount, 125 VAC, 15 A, 2 Pole, 3 Wires, 5-15P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.325 to 0.655 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Clear, 1.52 in W x 1.21 in D x 2.08 in H
Additional Description: HUBW-HBL5266CAT PLUG ANGLE, 15A 125V, 5-15P, CLR 5-15P
Catalog Description: Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Angled, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Clear, Single Pack.
HBL5266CAT Application
Commercial, Industrial, Dry Location and Indoor ApplicationsHBL5266CAT Item Features
- Individual wiring terminals completely enclosed
- Powerful, offsetting cord grips clamp on individual conductors
- Angled low profile housing
- Transparent for easy visual inspection of termination
- https://youtu.be/1DnPJu3QNw0
HBL5266CAT Standards
RoHS Compliant|UL 498 File No. E1706|CSA C22.2 File No. 42/280|NEMA WD1/WD5SKU #18230Part Number #HBL5266CATUNSPSC39121402UPC00783585173108
