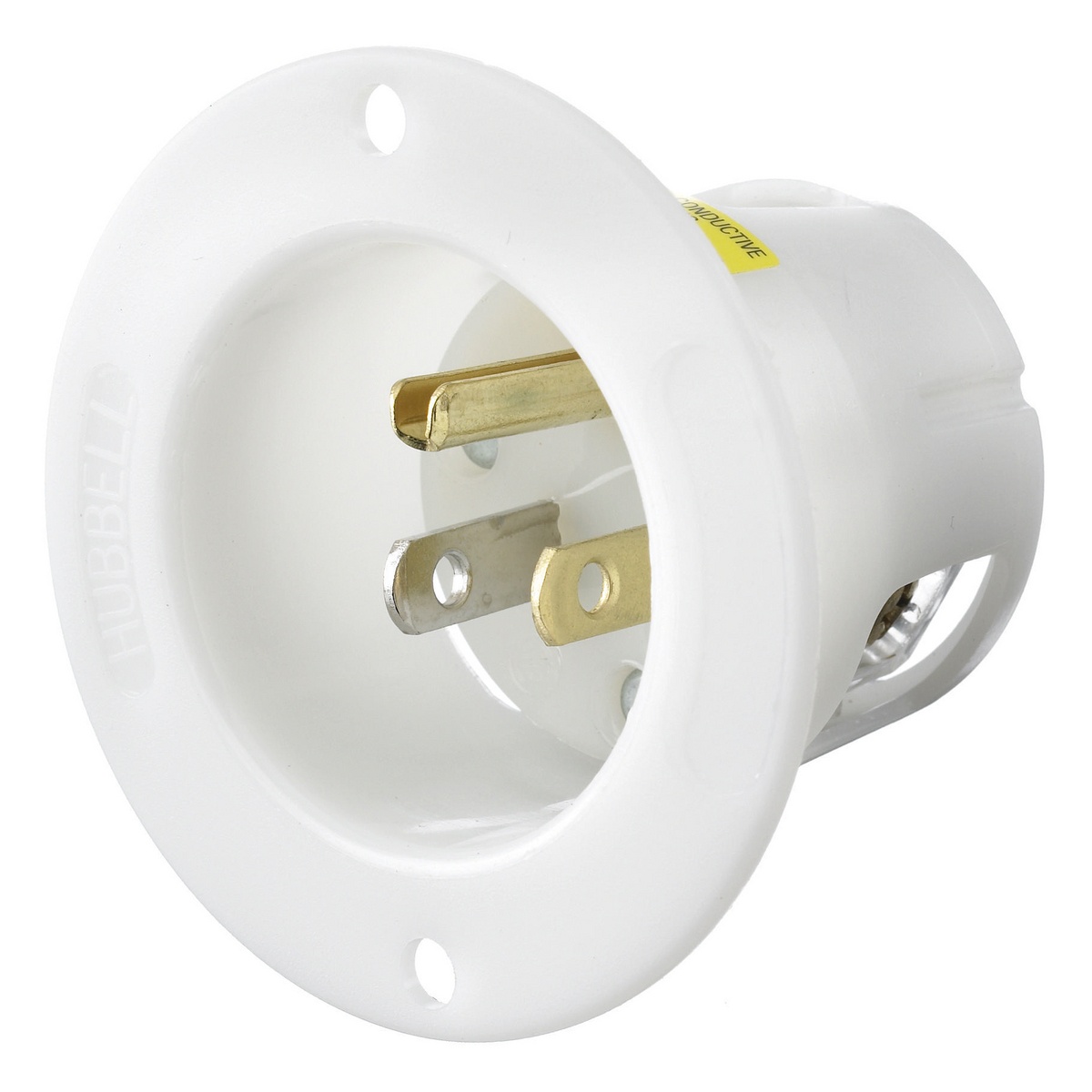

Hubbell HBL5278C Flanged Inlet
Image Disclaimers Message
Hubbell HBL5278C Flanged Inlet
Hubbell HBL5278C Flanged Inlet
Part #:HBL5278C
SKU #: 18634
Key Features
Part #:HBL5278C
SKU #: 18634
Brand: Hubbell
Amperage Rating: 15, 15 A
Dimensions: 1.71 x 1.69 x 1.71 in, 2.56 in Dia x 1.719 in L
Horsepower: 1/2, 1/2 hp
NEMA Rating: 5-15P
Number of Poles: 2
- Impact resistant thermoplastic construction
- Back wired terminations for ease of installation
- NO 8 to 32 multiple drive terminal screws
- Nylon housing, clear polycarbonate terminal retainer, brass blades, NO 8 - 32 brass, multiple drive terminal screws, cold rolled steel - nickel plated terminal clamp, steel - nickel plated assembly screws, nickel plated brass mounting screws
- Indoor dry unless protected by additional means environmental conditions
- Insulated body
- Withstands 2000 VAC dielectric voltage
- UL 94V-2 flammability
- 1 phase, screw mount, 1875 W
- NO 14 to 12 AWG wire size
- Dual, maximum strength cord grip
- Super tough nylon construction
- Integral dust shield
- Funneled entry terminations
- Visible product identification on device
- 1/2 hp at 125 VAC
- Non-NEMA
Hubbell HBL5278C Flanged Inlet
Wiring Device-Kellems Twist-Lock Insulgrip Flanged Inlet, 1-Phase Male Grounding Straight Blade Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15P NEMA Rating, Heavy Duty/Specification Grade, -40 to 75 deg C, Screw Terminal, Nylon, White, 1.71 x 1.69 x 1.71 in
Additional Description: HUBW-HBL5278C FLANGED INLET, 15A 125V, 5-15P, WH 15A 125V
Catalog Description: Straight Blade Devices, Male Inlets, Flanged, Industrial/Commercial, 15A 125V, 2-Pole 3-Wire Grounding, 5- 15P, White, Single Pack.
