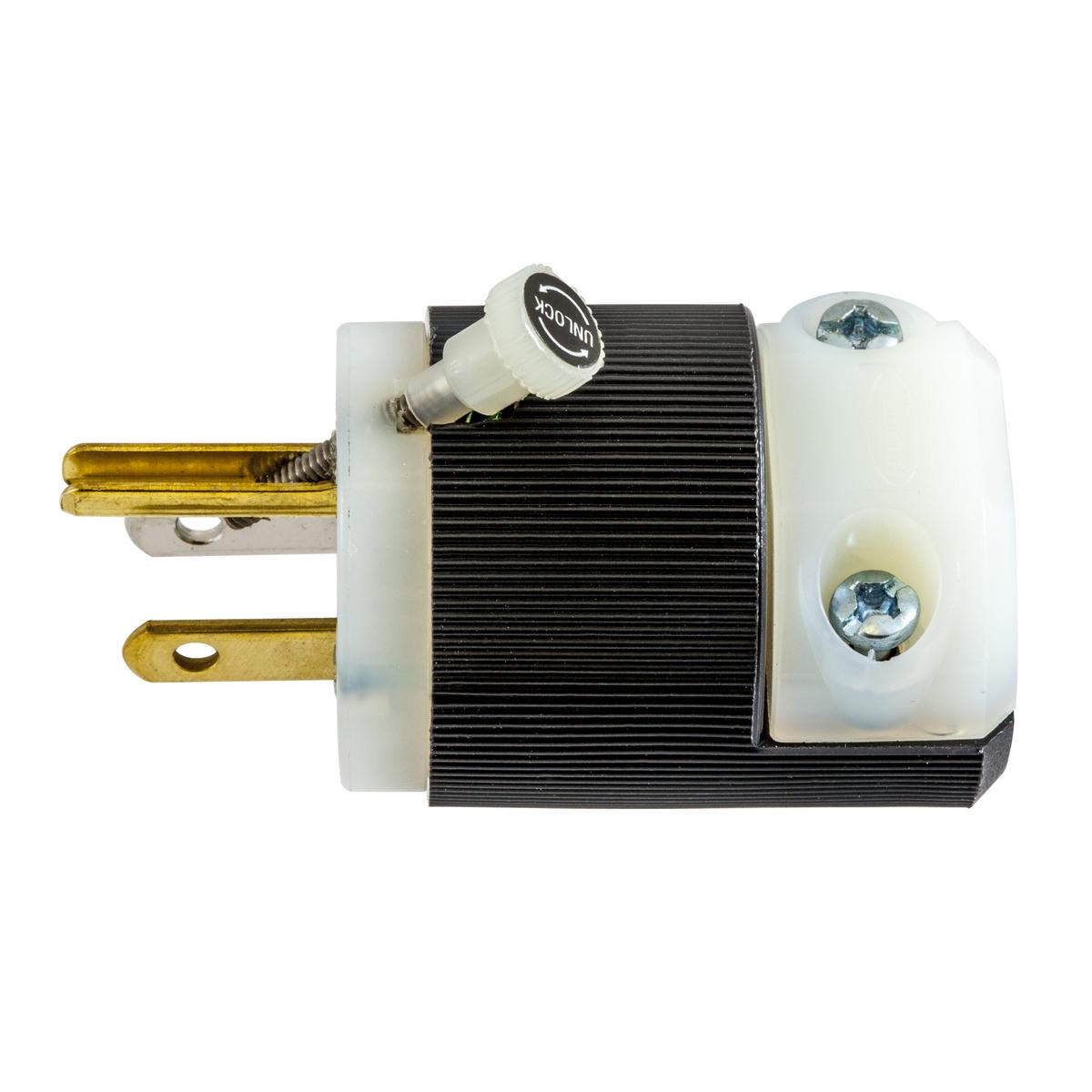

Hubbell HBL5280C Straight Blade Plug
Part Number # HBL5280C
SKU # 2246216
$35.86 / Each
Hubbell HBL5280C Key Features
Brand: Hubbell
Part Number # HBL5280C
SKU #2246216
Amperage Rating: 15, 15 A
Cord Diameter: 0.23 to 0.72, 0.23 to 0.72 in
Dimensions: 1.52 x 1.52 x 1.96 in, 1.53 in Dia x 1.97 in L
Enclosure: IP20
Horsepower: 1/2, 1/2 hp
NEMA Rating: 5-15P, NEMA 5-15P
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Screw
Type: 1-Phase Corrosion-Resistant Grounding Portable Standard, 1-Phase Corrosion-Resistant Grounding Portable Standard Cord Mount
Voltage Rating: 125, 125 VAC
Color: Black/White
Country of origin: US
Material: Composite, Polycarbonate
Manufacturer Name: Hubbell
UNSPSC: 39121402
UPC: 00783585173658
$35.86 / Each
- Wiring Device-Kellems Insulgrip Straight Blade Plug, 1-Phase Corrosion-Resistant Grounding Portable Standard Cord Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Black/White, 1.52 x 1.52 x 1.96 in
HBL5280C Application
Industrial, Food Processing, Waste Management, Healthcare, Data Centers, Constructions, Dry Location and Indoor ApplicationsHBL5280C Item Features
- Ribbed nylon housing is impact and chemical resistant
- VARI-SIZE adjustable cord clamp
- Fast lead assembly screws
- Beveled housing prevents snagging
- https://youtu.be/1DnPJu3QNw0
HBL5280C Standards
UL 498 File No. E1706|NEMA WD1/WD5/WD6|RoHS CompliantSKU #2246216Part Number #HBL5280CUNSPSC39121402UPC00783585173658
