Brand: Hubbell

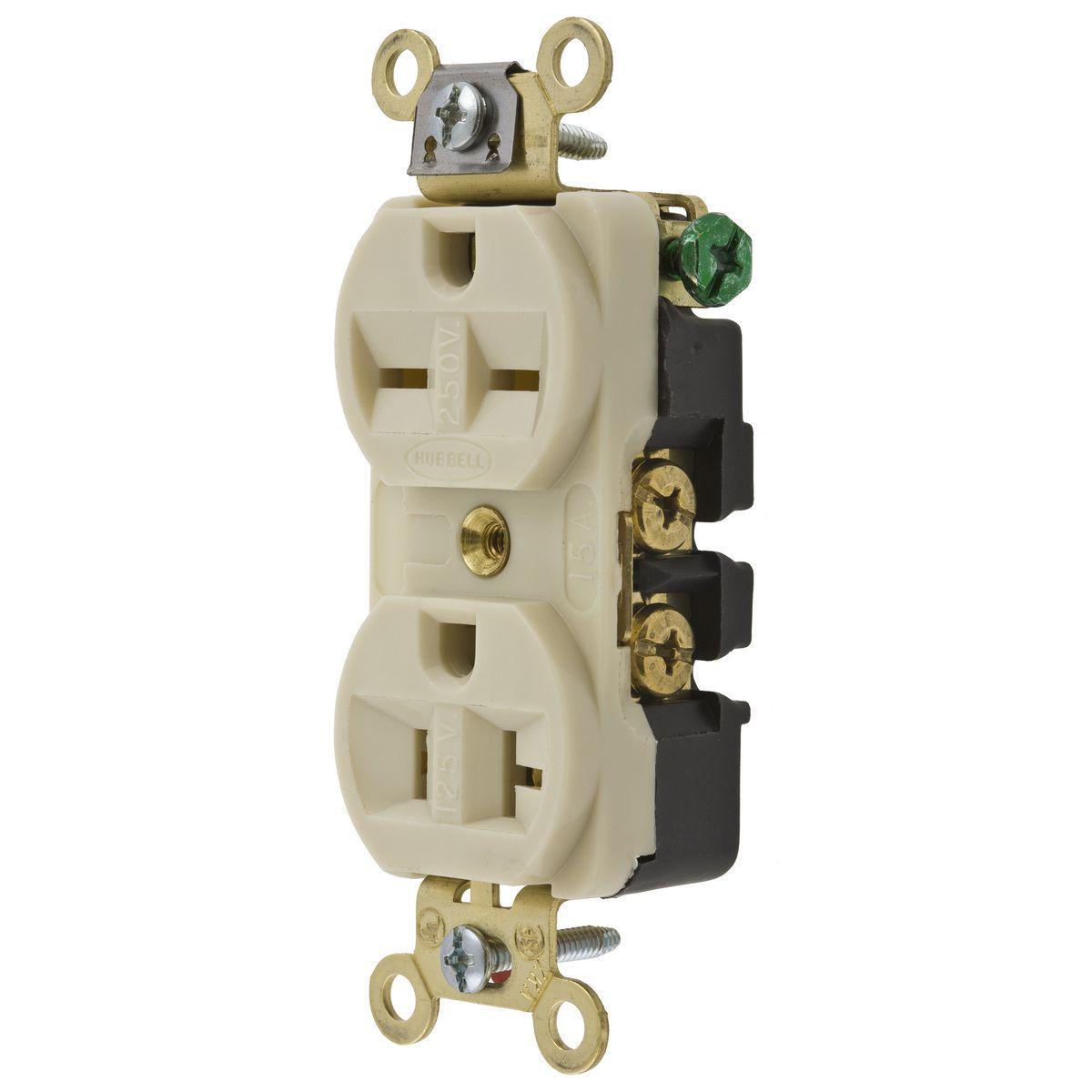

Hubbell HBL5292I Combination Straight Blade Receptacle
Image Disclaimers Message
Brand: Hubbell
Hubbell HBL5292I Combination Straight Blade Receptacle
Brand: Hubbell
Hubbell HBL5292I Combination Straight Blade Receptacle
Part #:HBL5292I
SKU #: 18637
$37.14/EA
Key Features
Part #:HBL5292I
SKU #: 18637
Brand: Hubbell
Amperage Rating: 15, 15 A
Connection: Screw Terminal, Threaded
Environmental Conditions: -40 to 75 deg C, -40 to 75 deg C Temperature
Horsepower: 1-1/2, 1.5 hp
Mounting: Threaded
$37.14/EA
- 0.037 in brass power contact
- 0.05 in brass mounting strap
- Stainless steel auto ground clip
- #8-32 brass, multiple drive (green) ground screw
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
- Certified for current interrupting at full rated current
- Withstands 2000 VAC minimum dielectric voltage
- Steel zinc plated mounting screw
- Ratings are a permanent part of the device housing
- Nylon top and reinforced PET base
Specifications
Brand: Hubbell
Amperage Rating: 15, 15 A
Connection: Screw Terminal, Threaded
Environmental Conditions: -40 to 75 deg C, -40 to 75 deg C Temperature
Horsepower: 1-1/2, 1.5 hp
Mounting: Threaded
NEMA Rating: 5-15R, NEMA 6-15R
Number of Poles: 2
Number of Wires: 3
Phase: 1, 1 ph
Size: 3.28 in L x 1.5 in W x 0.88 in H, 3.28 x 1.5 x 0.88 in
Type: Duplex, Standard Duplex
Voltage Rating: 125 V, 250
Wattage: 3750, 3750 W
Wire Size: 14 to 12, 14 to 12 AWG
Wiring Method: Back and Side Wired, Back/Side Wired
Color: Ivory
Country of origin: US
Material: Composite/Nylon/Thermoplastic, Thermoplastic/Composite
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585435428
Item FeaturesDry Locations and Indoor Applications
Item Features
Item FeaturesRoHS Compliant|UL 498 File No. E2186|CSA C22.2 No. 42/285|UL94 V-2 Flammability Rating|Federal Specification W-C-596G|NEMA WD1/WD5
