Part Number # HBL52CM69C
SKU # 157733
Image provided may only be a representation of
final product and may include optional equipment
HBL52CM69C

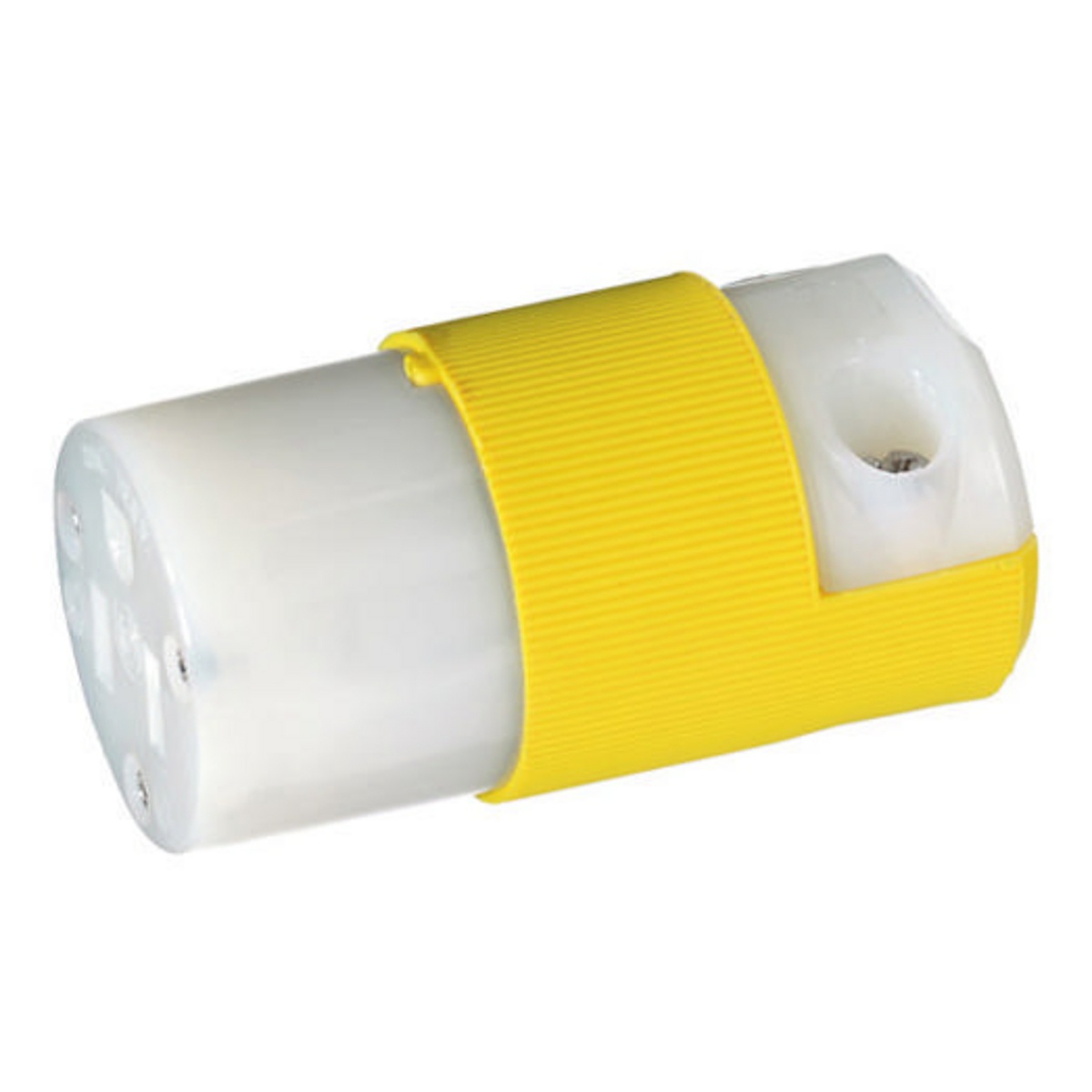

Hubbell HBL52CM69C Straight Blade Connector
Part Number # HBL52CM69C
SKU # 157733
Hubbell HBL52CM69C Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL52CM69C |
| SKU #: | 157733 |
| Amperage Rating: | 15, 15 A |
| Cord Diameter: | 0.23 to 0.72, 0.23 to 0.72 in |
| Dimensions: | 1.527 in Dia x 2.78 in L, 2.78 x 1.52 x 2.78 in |
| Enclosure: | IP20 |
| Horsepower: | 1/2, 1/2 hp |
| NEMA Rating: | 5-15R, NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | Female Grounding Insulated Standard, Female Grounding Insulated Standard Cord Mount |
| Country of origin: | PR, US |
| Material: | Composite, Polycarbonate |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585161600 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL52CM69C Straight Blade Connector
Brand: Hubbell
Part Number: HBL52CM69C
Wiring Device-Kellems Insulgrip Straight Blade Connector, Female Grounding Insulated Standard Cord Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Yellow, 2.78 x 1.52 x 2.78 in
Additional Description: HUBW-HBL52CM69C MARINE CONN, 15A 125V, 5-15R, YL 5-15R
Catalog Description: Straight Blade Devices, Female Connector Body, Corrosion Resistant, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding , 15A 125V, 5-15R, Yellow, Single Pack.
HBL52CM69C Item Features
- Individual wiring terminals completely enclosed
- Powerful, offsetting cord grips clamp on individual conductors
- Roomy wiring chamber provides ample space for wiring
- Corrosion Resistant
- https://youtu.be/1DnPJu3QNw0
HBL52CM69C Standards
RoHS Compliant|UL 498 File No. E1706|UL 94 HB Flammability Rating|Federal Specification|CSA C22.2 File No. 42/280|NEMA WD1/WD5 WD6SKU #157733Part Number #HBL52CM69CUNSPSC39121421UPC00783585161600
