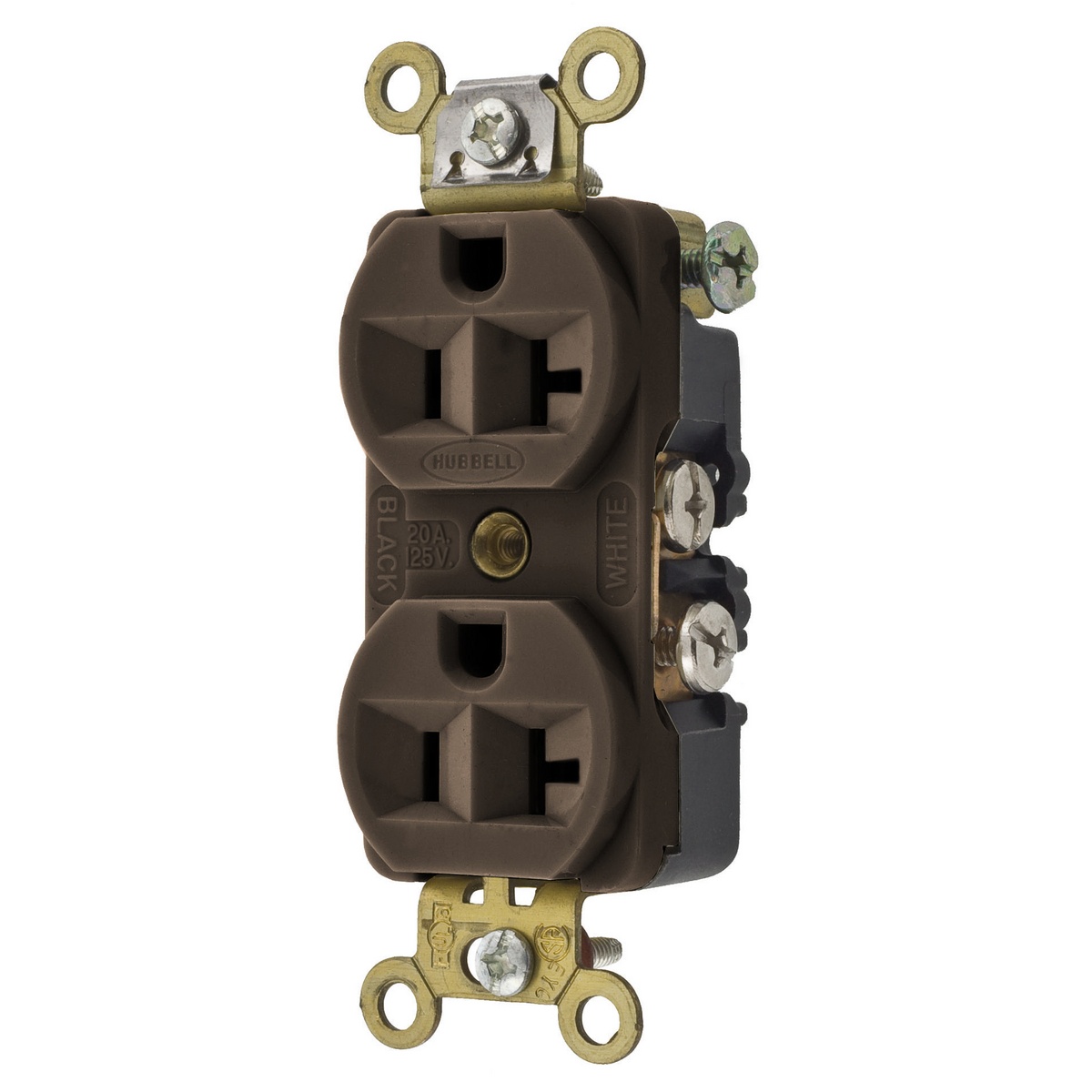

Name: Hubbell HBL5342 Straight Blade Receptacle
Brand: Hubbell
Price: 18.86 US$
Availability: OutOfStock

Brand: Hubbell

Hubbell HBL5342 Straight Blade Receptacle

Image Disclaimers Message

Brand: Hubbell

Hubbell HBL5342 Straight Blade Receptacle

Brand: Hubbell

Hubbell HBL5342 Straight Blade Receptacle

Part #:HBL5342

SKU #: 18639

$18.86/EA

Key Features

Part #:HBL5342

SKU #: 18639

Brand: Hubbell

Amperage Rating: 20, 20 A

Dimensions: 3.28 in L x 1.33 in W x 1.05 in H, 3.28 x 1.33 x 1.05 in

Horsepower: 1, 1 hp

NEMA Rating: 5-20R, NEMA 5-20R

Number of Poles: 2

$18.86/EA

Quantity

Specifications

Brand: Hubbell

Amperage Rating: 20, 20 A

Dimensions: 3.28 in L x 1.33 in W x 1.05 in H, 3.28 x 1.33 x 1.05 in

Horsepower: 1, 1 hp

NEMA Rating: 5-20R, NEMA 5-20R

Number of Poles: 2

Number of Wires: 3

Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C

Terminal Type: Side Wire, Side Wired

Type: 1-Phase Compact Duplex Extra Heavy Duty Self-Grounding Standard Traditional Screw Mount, Compact Duplex Extra Heavy Duty Self-Grounding Standard Traditional

Voltage Rating: 125, 125 VAC

Color: Brown

Country of origin: PR, US

Material: Composite/Thermoplastic, Thermoplastic/Composite

Manufacturer Name: Hubbell

UNSPSC: 39121406

UPC: 00783585434766

Description

Hubbell HBL5342 Straight Blade Receptacle

Wiring Device-Kellems HBL Straight Blade Receptacle, 1-Phase Compact Duplex Extra Heavy Duty Self-Grounding Standard Traditional Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Side Wire Terminal, Thermoplastic/Composite, Brown, 3.28 x 1.33 x 1.05 in

Additional Description: HUBW-HBL5342 DUP RCPT, INT GRD, 20A 125V, 5-20R, BR

Catalog Description: Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Brown, Single Pack.
