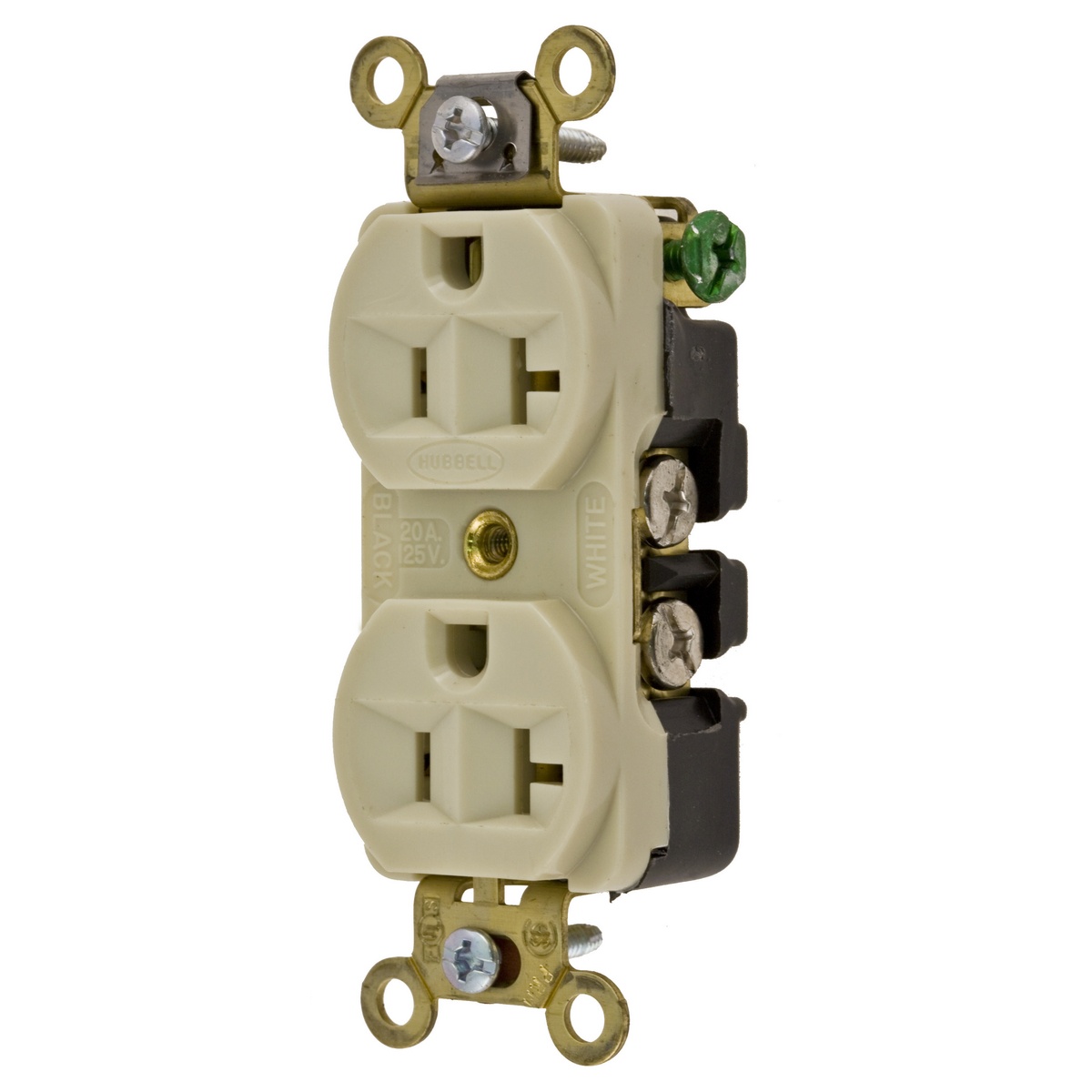

Hubbell HBL5352I Straight Blade Receptacle
Image Disclaimers Message
Hubbell HBL5352I Straight Blade Receptacle
Hubbell HBL5352I Straight Blade Receptacle
Part #:HBL5352I
SKU #: 18642
Key Features
Part #:HBL5352I
SKU #: 18642
Brand: Hubbell
Amperage Rating: 20, 20 A
Dimensions: 3.28 x 1.33 x 1.05 in, 3.281 in H x 1.328 in W x 1.047 in D
Horsepower: 1, 1 hp
NEMA Rating: 5-20R, NEMA 5-20R
Number of Poles: 2
- 0.037 in phosphor bronze power contacts
- 0.05 in brass mounting strap
- Stainless steel auto ground clip
- Steel zinc plated mounting screw
- Made of reinforced PET
- Traditional duplex receptacle
- Indoor dry unless protected by additional means
- Withstands 2000 VAC minimum dielectric voltage
- Certified for current interrupting at full rated current
- #8-32 brass/nickel plated for neutral terminal screw
- #8-32 brass, multiple drive (green) ground screw
- Nylon top material
- Slender compact design
- 14 to 12 AWG wire size
- Triple wipe contacts
- 14 to 10 AWG solid or stranded copper conductor terminal accommodation
Hubbell HBL5352I Straight Blade Receptacle
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Compact Duplex Extra Heavy Duty Self-Grounding Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic/Composite, Ivory, 3.28 x 1.33 x 1.05 in
Additional Description: HUBW-HBL5352I DUP RCPT, IND GRD, 20A 125V, 5-20R, IV
Catalog Description: Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Ivory, Single Pack.
