Part Number # HBL5360SA
SKU # 2330541
Image Disclaimers Message
Brand: Hubbell
HBL5360SA

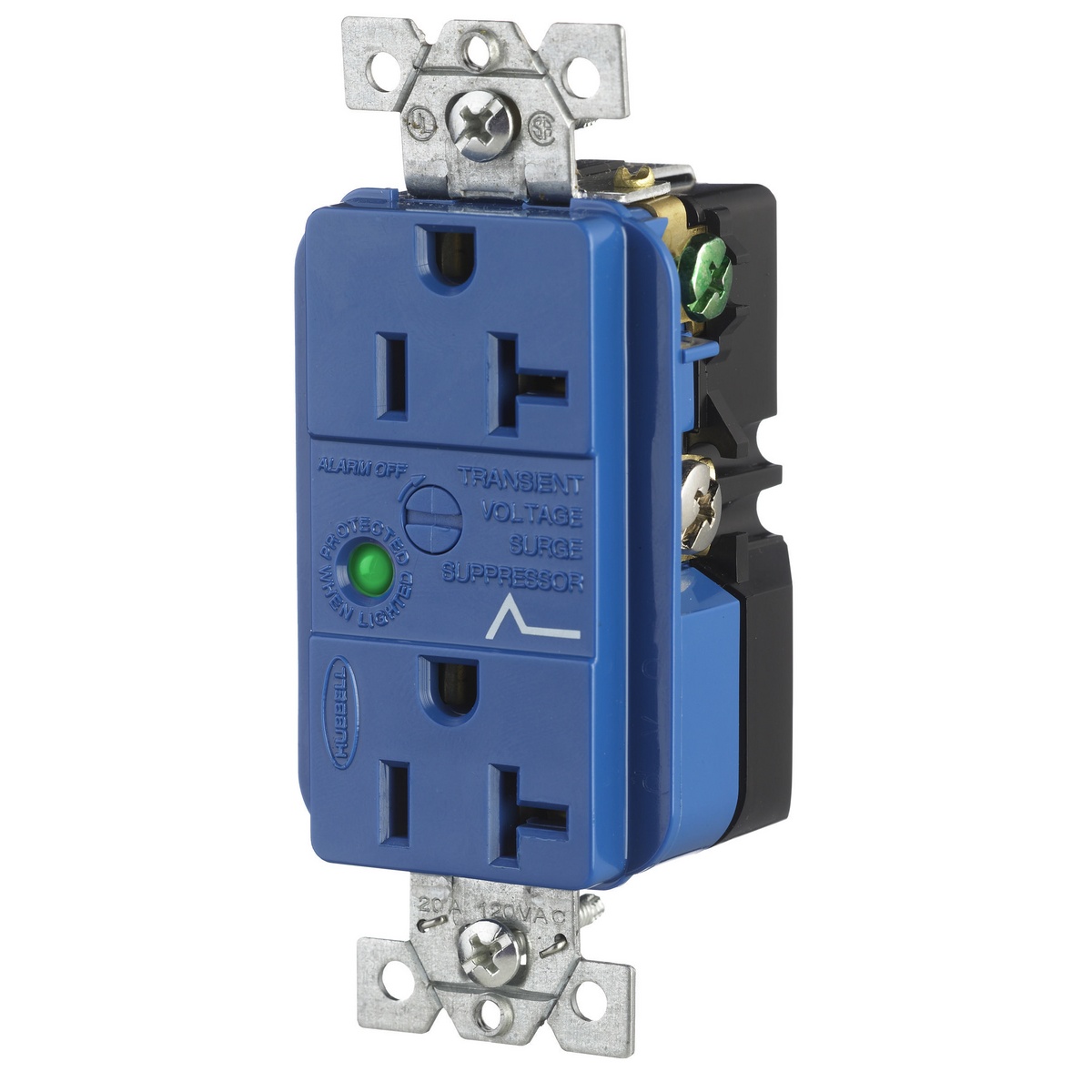

Hubbell HBL5360SA Surge Protection Receptacle
Part Number # HBL5360SA
SKU # 2330541
$89.36 / Each
Typical price:$137.00 / Each
Hubbell HBL5360SA Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL5360SA |
| SKU #: | 2330541 |
| Amperage Rating: | 20, 20 A |
| Class: | Common/Normal Mode |
| Connection: | Screw, Screw Terminal |
| Environmental Conditions: | UL 94 V-2 Flammability Rated |
| Frequency Rating: | 60, 60 Hz |
| Mounting: | Threaded |
| Operating Temperature: | 32 to 140, 32 to 140 deg F |
| Outlet: | NEMA 5-20R Straight Blade |
| Phase: | 1, 1 ph |
| Response Time: | 5, 5 ns |
| Size: | 4.04 in L x 1.72 in W x 1.6 in H |
| Type: | Decorator Duplex |
| Type of Indicators: | LED/Audible Alarm |
| Color: | Blue |
| Country of origin: | CN |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121610 |
| UPC: | 00783585060231 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$89.36 / Each
Typical price:$137.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems SpikeShield Circuit Guard Surge Protection Receptacle, Decorator Duplex, 125 V AC, 20 A, 60 Hz Frequency, 1 ph, NEMA 5-20R Straight Blade Outlet, Class: Common/Normal Mode, 5 ns Response, Indicators: LED/Audible Alarm, Screw Terminal Connection, Threaded Mounting, 4.04 in L x 1.72 in W x 1.6 in H Size, 32 to 140 deg F Operating, Composite, Blue, Environmental Conditions: UL 94 V-2 Flammability Rated
HBL5360SA Application
Specification Grade ApplicationsHBL5360SA Item Features
- Automatic self-grounding staple
- Distinctive surge symbol provides quick identification
- Power-on indicator light verifies that power is available
- Alert alarm sounds when surge protection is no longer functioning
HBL5360SA Standards
UL 498|UL 1449 3rd Edition File No. E2186|CSA C22.2 No. 42|UL94 V-2 Flammability RatingSKU #2330541Part Number #HBL5360SAUNSPSC39121610UPC00783585060231
