Part #:HBL5362WR
SKU #: 2172101
Key Features
Part #:HBL5362WR
SKU #: 2172101
Brand: Hubbell
Amperage Rating: 15, 20 A
Dimensions: 1.65 in W x 1.19 in D, 3.28 x 1.65 x 1.19 in
Horsepower: 1, 1 hp
NEMA Rating: 5-20R, NEMA 5-20R
Number of Poles: 2
- Finder groove face style
- One piece brass integral ground strap
- Deep body design with circuit inside diameter face
- Traditional face shape
- #10-32 silicon bronze terminal screw and ground screw
- Nylon top and reinforced PET base
- 0.05 in brass mounting strap
- Stainless steel auto ground clip and brass clamp
- Steel, zinc plated mounting screws
- Withstand 2000 VAC minimum dielectric voltage
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150 Percent of rated current at a power factor of 75 Percent
- Terminals identified in accordance with UL498
- 14 to 10 AWG copper stranded or solid conductor only terminal accommodation
- Ratings are a permanent part of the device product identification
- UL 94V-2 top, UL 94V-0 base flammability

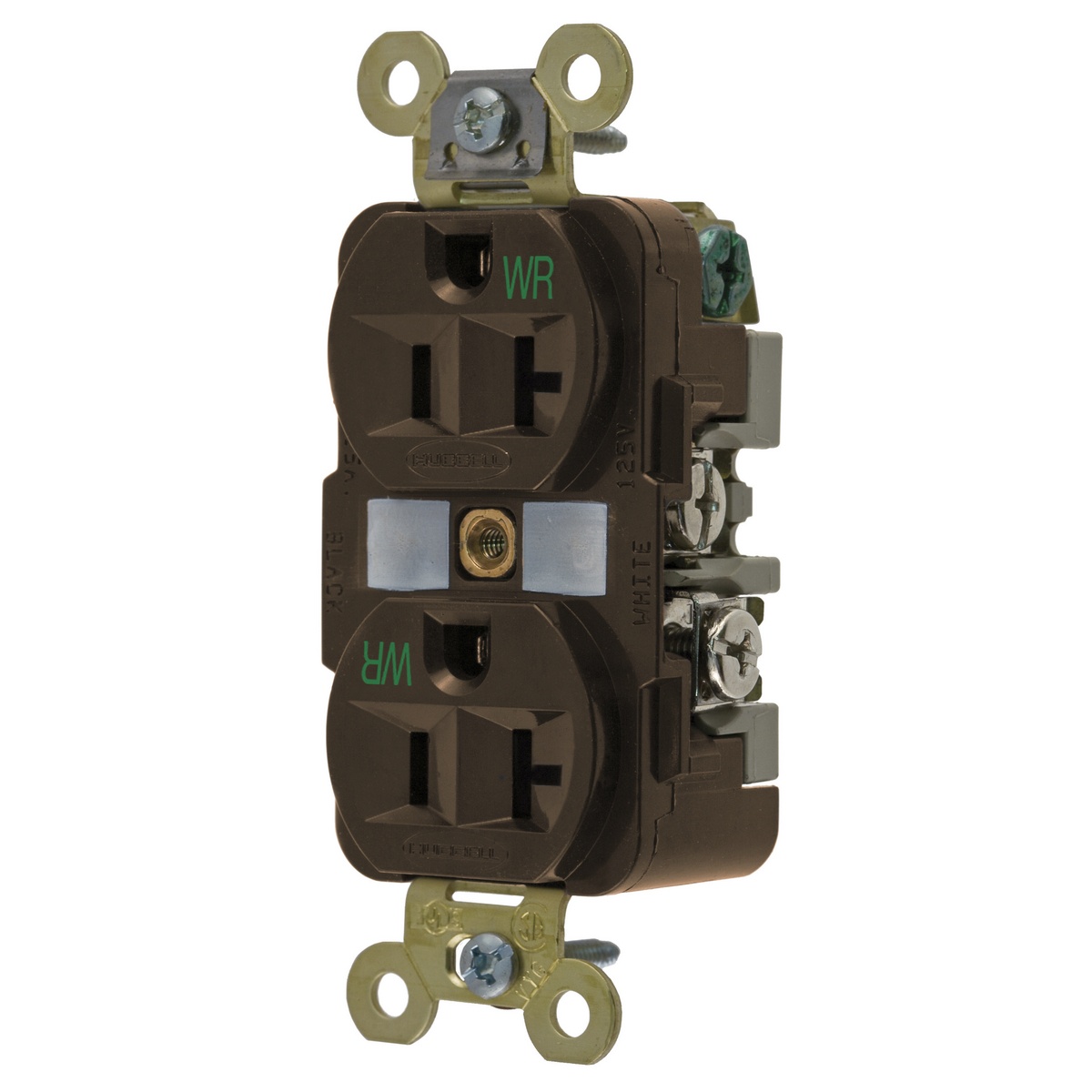

Hubbell HBL5362WR Straight Blade Duplex Receptacle
Wiring Device-Kellems Straight Blade Duplex Receptacle, 1-Phase Grounding Extra Heavy Duty Screw Mount Weather Resistant, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Specification Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic/Composite, Brown, 3.28 x 1.65 x 1.19 in
Additional Description: HUBW-HBL5362WR WR RCPT, DUP, SB, HD SPEC, 20A 125V, BR 125V, BROWN
Catalog Description: Straight Blade Receptacle, Weather-Resistant Duplex, Industrial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R
