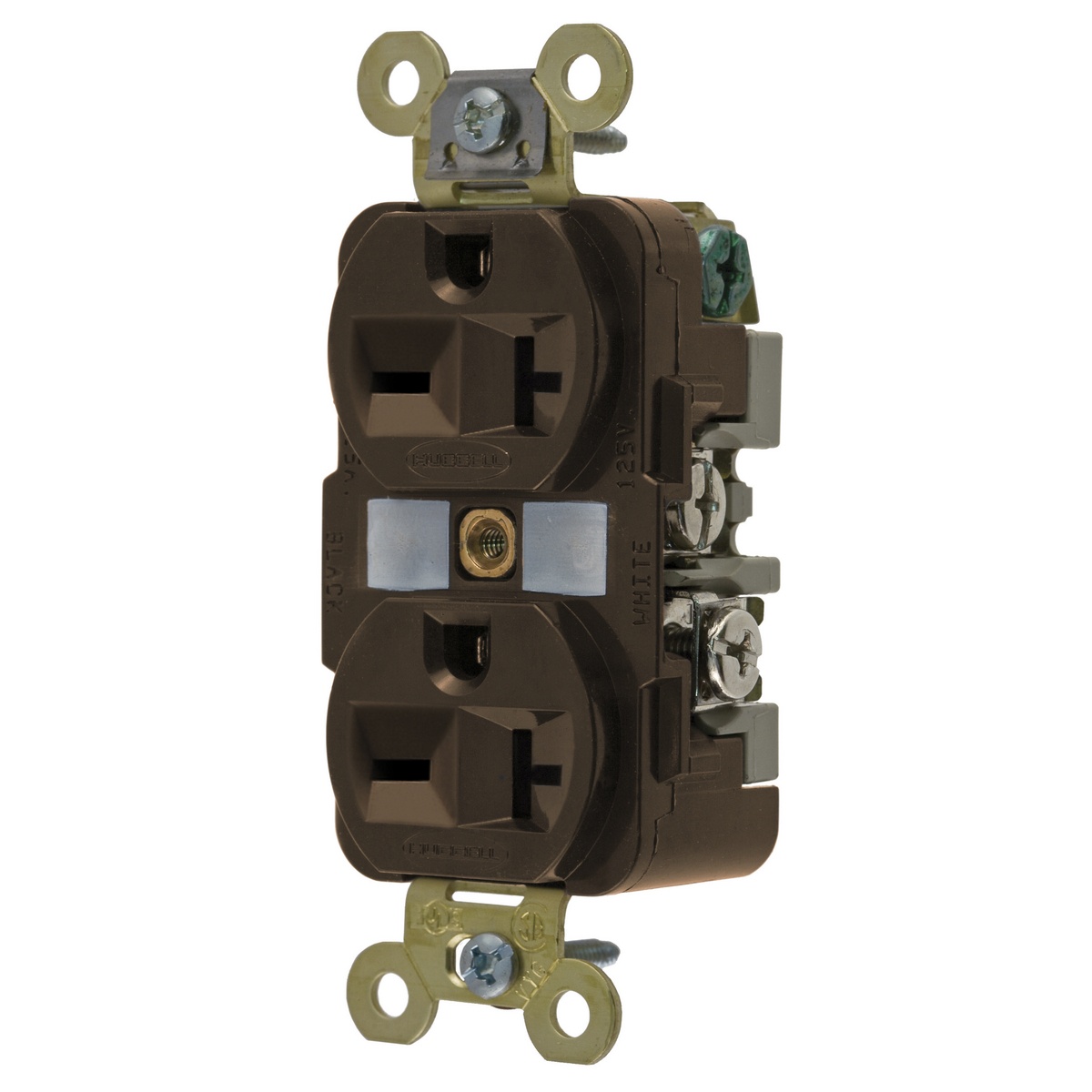

Hubbell HBL5462 Straight Blade Receptacle
Hubbell HBL5462 Straight Blade Receptacle
Part #:HBL5462
SKU #: 152311
Key Features
Part #:HBL5462
SKU #: 152311
Brand: Hubbell
Amperage Rating: 20, 20 A
Dimensions: 3.28 in H x 1.65 in W x 1.19 in D, 3.28 x 1.65 x 1.19 in
Horsepower: 2, 2 hp
NEMA Rating: 6-20R, NEMA 6-20R
Number of Poles: 2
- Traditional face shape
- Withstands 2000 VAC dielectric voltage
- 14 to 10 AWG solid or stranded copper conductor terminal accommodation
- Finder groove face style
- 1 piece brass integral ground strap
- Deep nylon body design delivers increased impact resistance
- PBT base, 0.036 in by pass brass power contacts
- 0.031 in brass ground contact
- Nickel plated steel clamping plate
- Certified for current interrupting at full rated current
- Plated brass terminal screws
- 0.05 in brass mounting strap
- Deep body design with circuit ID face
- Traditional duplex receptacle
- Indoor dry unless protected by additional means
Hubbell HBL5462 Straight Blade Receptacle
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Self-Grounding Screw Mount, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, 6-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic/Composite, Brown, 3.28 x 1.65 x 1.19 in
Additional Description: HUBW-HBL5462 DUP RCPT, HD IND GRD, 20A 250V,6-20R,BR
Catalog Description: Straight Blade Devices, Receptacles, Duplex, Specification Grade, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, Brown, Single Pack
