Part Number # HBL560B6W
SKU # 2374631
HBL560B6W

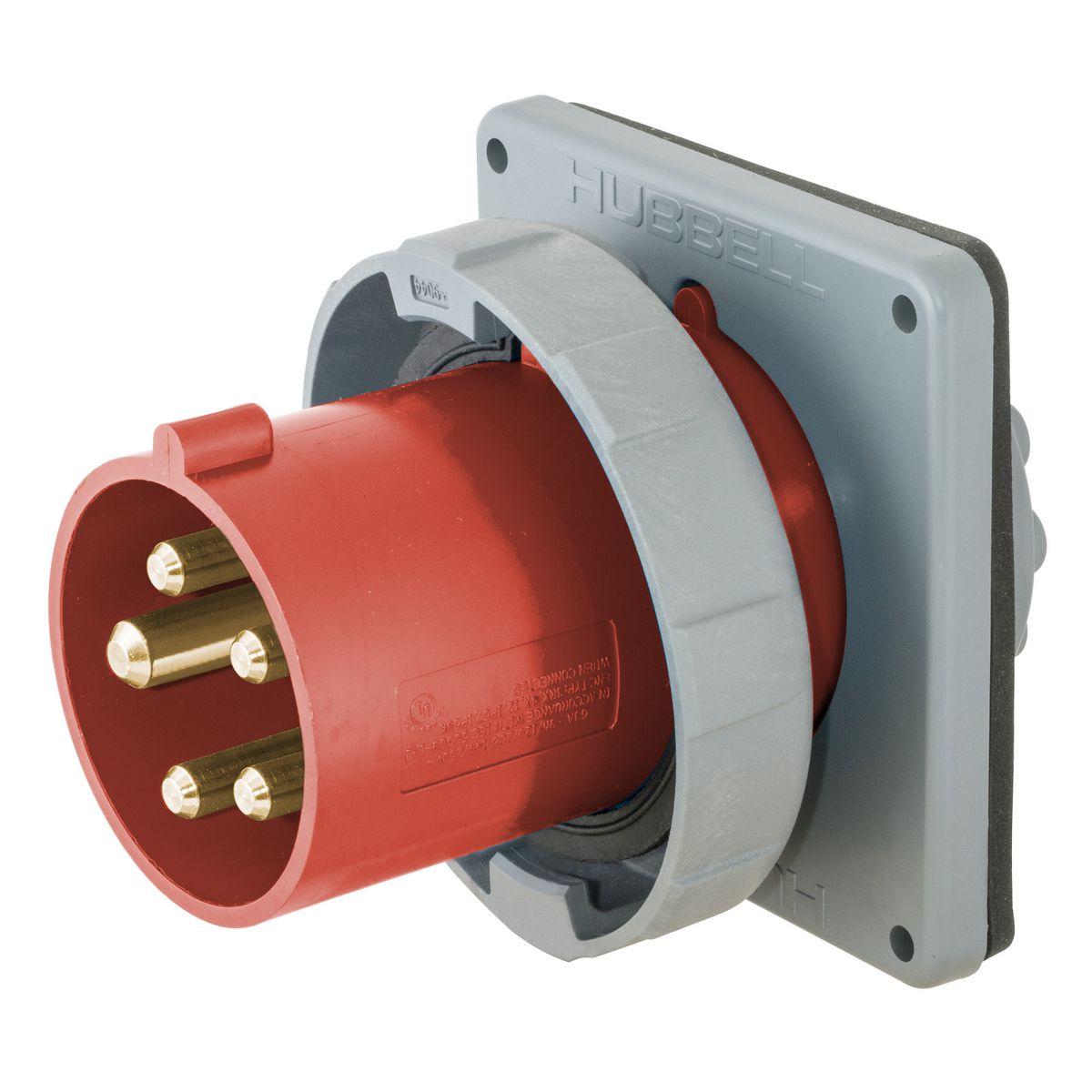

Hubbell HBL560B6W Grounding Heavy Duty Male Multi-Phase Watertight Pin and Sleeve Inlet
Part Number # HBL560B6W
SKU # 2374631
Hubbell HBL560B6W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL560B6W |
| SKU #: | 2374631 |
| Amperage Rating: | 60/63 A |
| Dimensions: | 4-1/2 in L x 4-1/2 in W |
| Enclosure: | IP68/IP69K |
| NEMA Rating: | 3R/3RX/4X/12 |
| Number of Poles: | 4 |
| Number of Wires: | 5 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | Grounding Heavy Duty Male Multi-Phase Watertight |
| Country of origin: | PR |
| Material: | Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585365657 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL560B6W Grounding Heavy Duty Male Multi-Phase Watertight Pin and Sleeve Inlet
Brand: Hubbell
Part Number: HBL560B6W
Wiring Device-Kellems Pin and Sleeve Inlet, Grounding Heavy Duty Male Multi-Phase Watertight, 200 to 415 VAC, 60/63 A, 4 Pole, 5 Wires, 3R/3RX/4X/12 NEMA Rating, Industrial Grade, IP68/IP69K Enclosure, -40 to 75 deg C, Screw Terminal, Thermoplastic, Red, 4-1/2 in L x 4-1/2 in W
Additional Description: HUBW-HBL560B6W (N) INLET,4P5W,60/63A 200-415V, 4X/69K 4X/69K NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Inlet, 60/63 A, 200/346-240/415 V;220/380-240/415 V, 4-Pole 5-Wire Wire Grounding, Terminal Screws, Red, 4X and IP69k
HBL560B6W Application
For high ampacity watertight connectionsHBL560B6W Item Features
- Rugged one-piece housing
- Thermoset polyester contact carrier
- Solid one-piece pins for reliable electrical contact
HBL560B6W Standards
CSA C22.2 No.182.1 File No. LR280C|UL Classified to IEC 60309-1|IEC 60309-2|UL 1682|UL File No. E146032|UL V-0 Flammability RatingSKU #2374631Part Number #HBL560B6WUNSPSC39121406UPC00783585365657
Image provided may only be a representation of final product and may include optional equipment
