Part Number # HBL560B6WP
SKU # 2396858
Image Disclaimers Message
Brand: Hubbell
HBL560B6WP

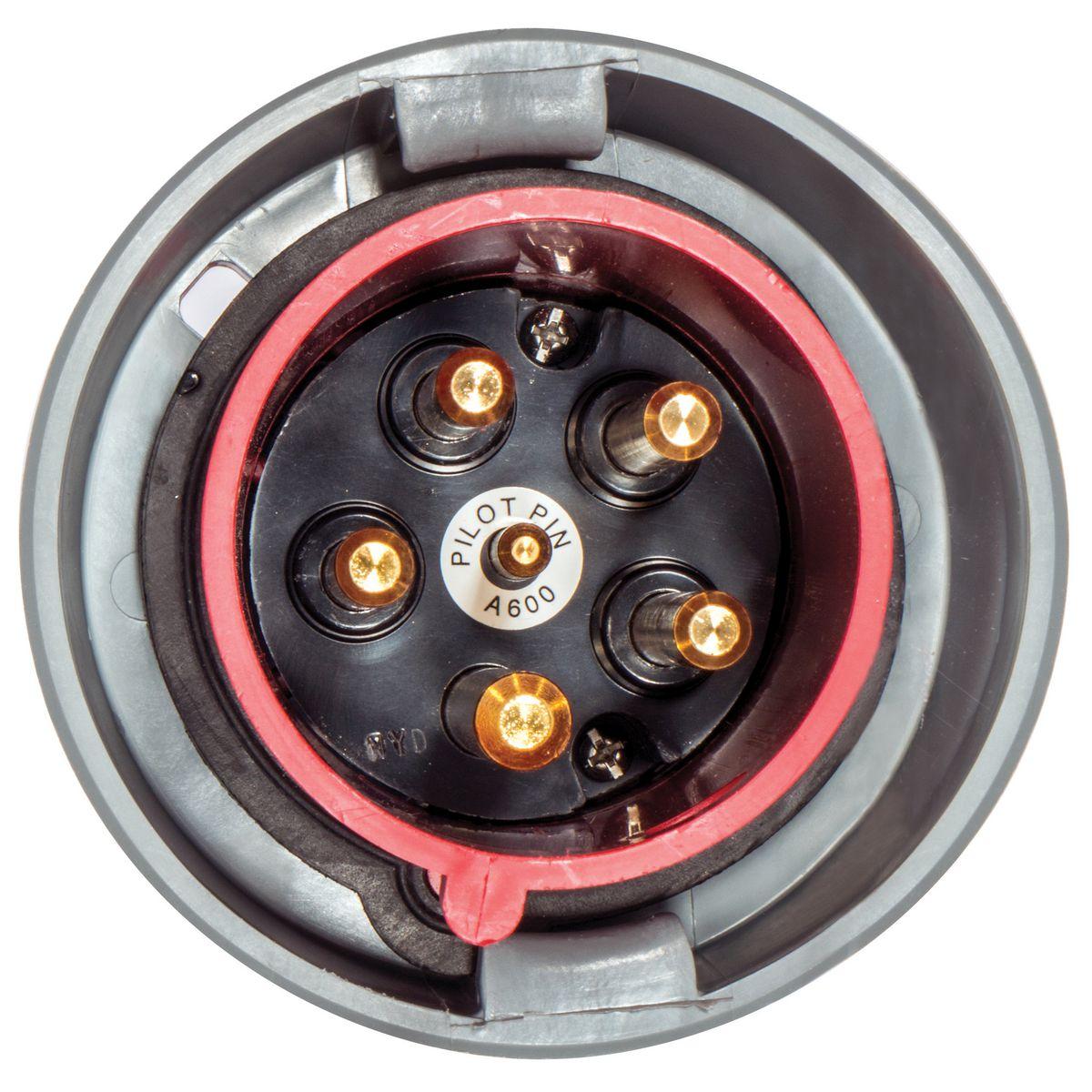

Hubbell HBL560B6WP Pin And Sleeve Inlet
Part Number # HBL560B6WP
SKU # 2396858
$670.00 / Each
Typical price:$1271.00 / Each
Hubbell HBL560B6WP Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL560B6WP |
| SKU #: | 2396858 |
| Amperage Rating: | 60/63, 60/63 A |
| Dimensions: | 4-1/2 in W |
| Enclosure: | IP69K |
| NEMA Rating: | 4X |
| Number of Poles: | 4 |
| Number of Wires: | 5 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | Multi-Phase Grounding Heavy Duty Single Flanged Male Standard Watertight |
| Country of origin: | PR, US |
| Material: | Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585365664 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$670.00 / Each
Typical price:$1271.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems Pin and Sleeve Inlet, Multi-Phase Grounding Heavy Duty Single Flanged Male Standard Watertight, 200 to 415 VAC, 60/63 A, 4 Pole, 5 Wires, 4X NEMA Rating, Industrial Grade, IP69K Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Red, 4-1/2 in W
HBL560B6WP Application
High Ampacity Connection ApplicationsHBL560B6WP Item Features
- Rugged one-piece housing
- Thermoset polyester contact carrier
- Solid one-piece pins for reliable electrical contact
HBL560B6WP Standards
UL File No. E146032|UL 1682|CSA File No. LR280C|IEC 60309-1|IEC 60309-2|CSA C22.2 File No. 0.17|UL94HB Flammability RatingSKU #2396858Part Number #HBL560B6WPUNSPSC39121406UPC00783585365664
