HBL5652I

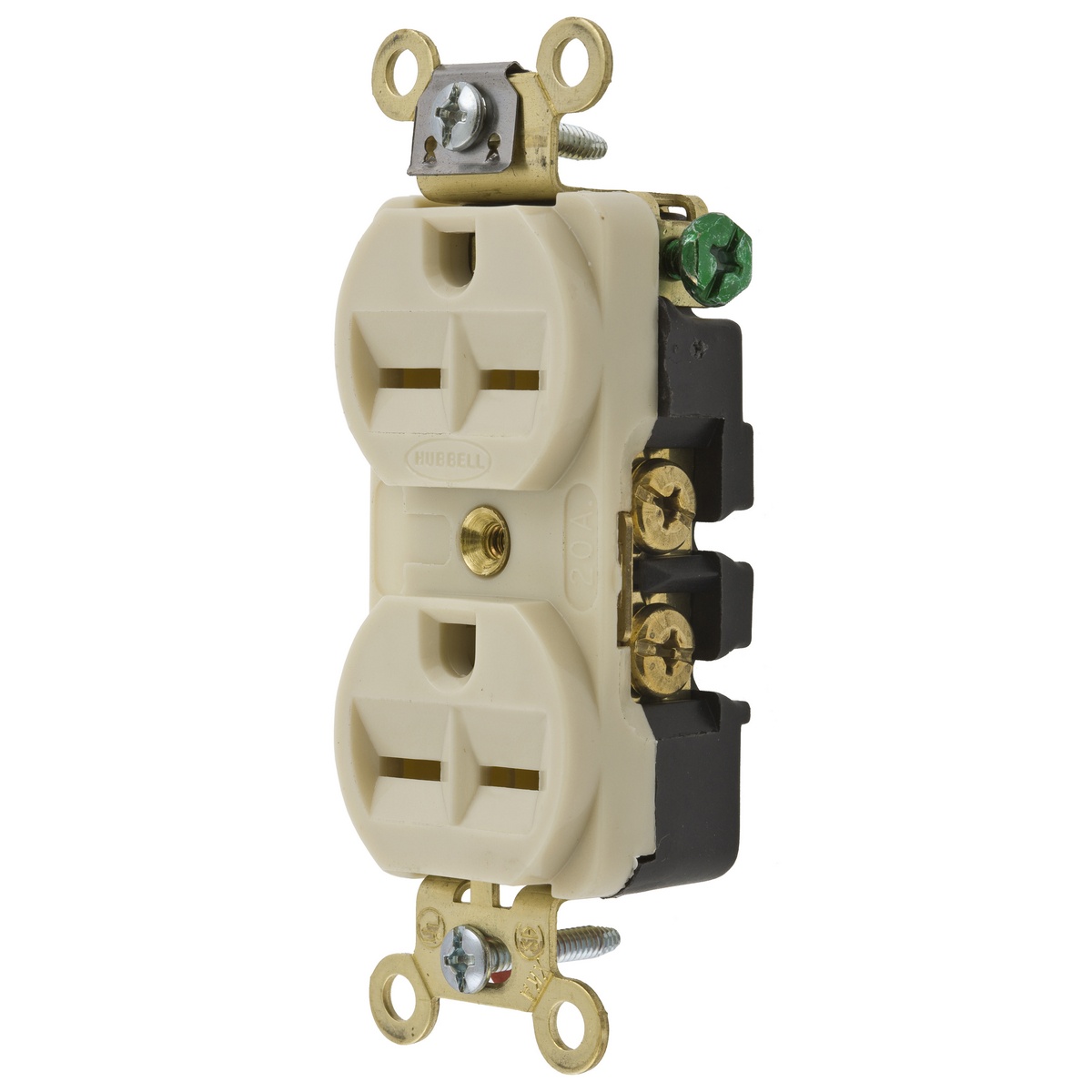

Hubbell HBL5652I Straight Blade Duplex Receptacle
Part Number # HBL5652I
SKU # 2135308
Hubbell HBL5652I Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL5652I |
| SKU #: | 2135308 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 1-21/64 in W x 1-3/64 in D |
| Horsepower: | 1-1/2, 1.5 hp |
| NEMA Rating: | 6-15R, NEMA 6-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Back/Side Wired Screw, Side Wire |
| Type: | 1-Phase Grounding Heavy Duty Screw Mount, Grounding Heavy Duty |
| Country of origin: | PR |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585435381 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL5652I Straight Blade Duplex Receptacle
Brand: Hubbell
Part Number: HBL5652I
Wiring Device-Kellems Straight Blade Duplex Receptacle, 1-Phase Grounding Heavy Duty Screw Mount, 250 VAC, 15 A, 1.5 hp, 2 Pole, 3 Wires, 6-15R NEMA Rating, Specification Grade, -40 to 75 deg C, Side Wire Terminal, Nylon, Ivory, 1-21/64 in W x 1-3/64 in D
Additional Description: HUBW-HBL5652I (N) DUP RCPT, IND GRD, 15A 250V, 6-15R, IV NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Straight Blade Devices, Receptacles, Duplex, Specification Grade, 2-Pole 3-Wire Grounding, 15A 250V, 6-15R, Ivory, Single Pack
HBL5652I Application
Indoor Dry EnvironmentHBL5652I Item Features
- Traditional face shape
- 0.037 in phosphor bronze power contact
- One-piece brass integral ground strap
- #8-32 brass terminal screw and ground screw
- Stainless steel auto ground clip
- Terminals identified in accordance with UL498
- 14 to 10 AWG copper stranded or solid conductor only terminal accommodation
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150 Percent of rated current at a power factor of 75 Percent
- 0.05 in brass mounting strap
- Steel, zinc plated mounting screws
- Unique bypass contact design
- Nylon top and reinforced PET base
- Ratings are a permanent part of the device product identification
- Finder groove face
- Withstand 2000 VAC minimum dielectric voltage
- UL 94V-2 flammability
HBL5652I Standards
NEMA WD1/WD5/WD6|UL 498 File No. E2186|Federal Specification W-C-596|CSA C22.2 No. 42 File No. 285|Meets NEMA WD-6 Requirements|RoHS CompliantSKU #2135308Part Number #HBL5652IUNSPSC39121406UPC00783585435381
Image provided may only be a representation of final product and may include optional equipment
