Part Number # HBL5656
SKU # 2334954
HBL5656

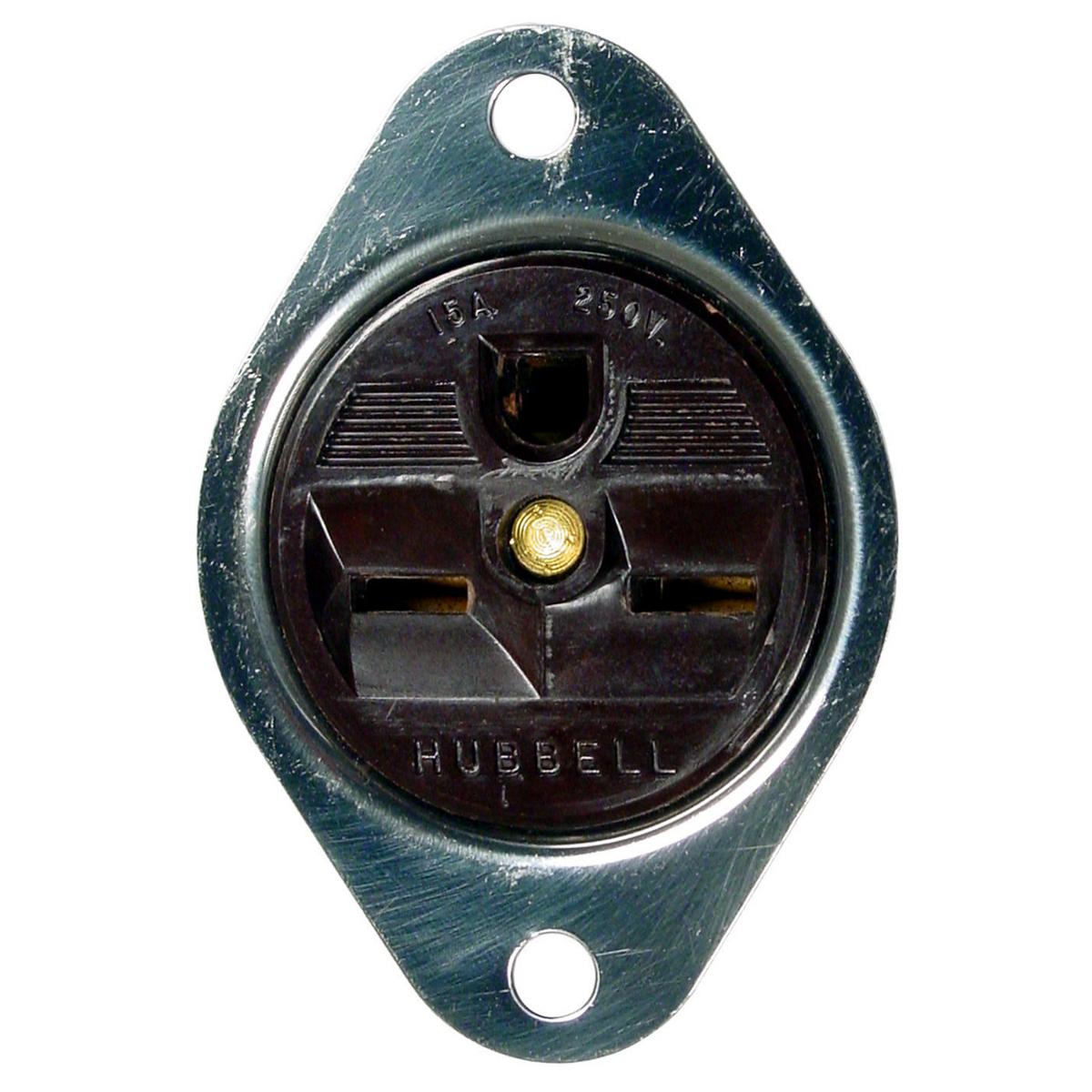

Hubbell HBL5656 Flanged Receptacle
Part Number # HBL5656
SKU # 2334954
$322.90 / 10Each
Typical price:$492.50 / Each
Hubbell HBL5656 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL5656 |
| SKU #: | 2334954 |
| Amperage Rating: | 15 A |
| Dimensions: | 1.09 x 1.47 x 2.06 in |
| Frequency Rating: | 50/60 Hz |
| Horsepower: | 1-1/2 hp |
| NEMA Rating: | 6-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Side Wire |
| Type: | 1-Phase Grounding Heavy Duty Standard Sized Screw Mount |
| Country of origin: | US |
| Material: | Thermoplastic/Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585013206 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$322.90 / 10Each
Typical price:$492.50 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL5656, Flanged Receptacle, 1-Phase Grounding Heavy Duty Standard Sized Screw Mount, 250 V AC, 15 A, 1-1/2 hp, 50/60 Hz Frequency, 2 Pole, 3 Wires, 6-15R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Side Wire Terminal, Thermoplastic/Composite, Brown, 1.09 x 1.47 x 2.06 in Dimensions
HBL5656 Application
Indoor Dry EnvironmentHBL5656 Item Features
- Stainless steel flange
- https://youtu.be/1DnPJu3QNw0
HBL5656 Standards
UL94 V-2 Flammability Rating|RoHS Compliant|UL 498 File No. E2186|CSA C22.2 No. 42|NEMA WD1/WD5/WD6SKU #2334954Part Number #HBL5656UNSPSC39121406UPC00783585013206
Image provided may only be a representation of final product and may include optional equipment
