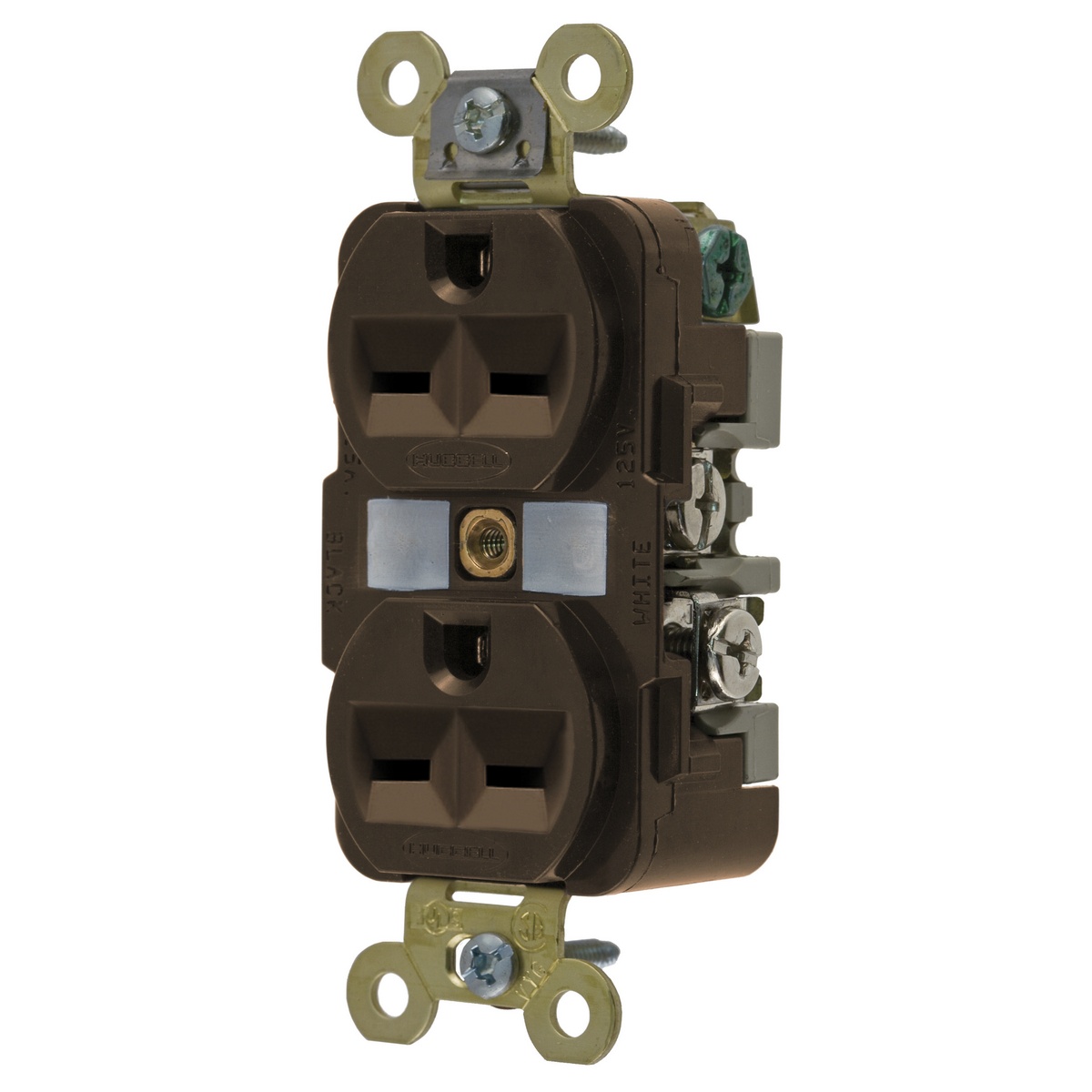

Hubbell HBL5662 Straight Blade Receptacle
Image Disclaimers Message
Hubbell HBL5662 Straight Blade Receptacle
Hubbell HBL5662 Straight Blade Receptacle
Part #:HBL5662
SKU #: 141645
Key Features
Part #:HBL5662
SKU #: 141645
Brand: Hubbell
Amperage Rating: 15, 15 A
Dimensions: 3.28 in H x 1.65 in W x 1.19 in D, 3.28 x 1.65 x 1.19 in
Horsepower: 1-1/2, 1.5 hp
NEMA Rating: 6-15R, NEMA 6-15R
Number of Poles: 2
- Withstands 2000 VAC dielectric voltage
- Certified for current interrupting at full rated current
- 1-piece brass integral ground strap
- Deep nylon body design delivers increased impact resistance
- Finder groove face style
- 14 to 10 AWG solid or stranded copper conductor terminal accommodation
- #8-32 brass/nickel plated for neutral terminal screw
- #8-32 brass multiple drive (green) ground screw
- Nylon top material
- 0.037 in brass power contact
- 0.05 in brass mounting strap
- Stainless steel auto ground clip
- Steel zinc plated mounting screw
- Traditional face
- Made of reinforced PET
- Traditional duplex receptacle
- Indoor dry unless protected by additional means
Hubbell HBL5662 Straight Blade Receptacle
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Grounding Screw Mount, 250 VAC, 15 A, 1.5 hp, 2 Pole, 3 Wires, 6-15R NEMA Rating, Industrial Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Brown, 3.28 x 1.65 x 1.19 in
Additional Description: HUBW-HBL5662 DUP RCPT, HD IND GRD, 15A 250V, 6-15R,BR
Catalog Description: Straight Blade Devices, Receptacles, Duplex, Specification Grade, 2-Pole 3-Wire Grounding, 15A 250V, 6-15R, Brown, Single Pack
