Brand: Hubbell
HBL5662I

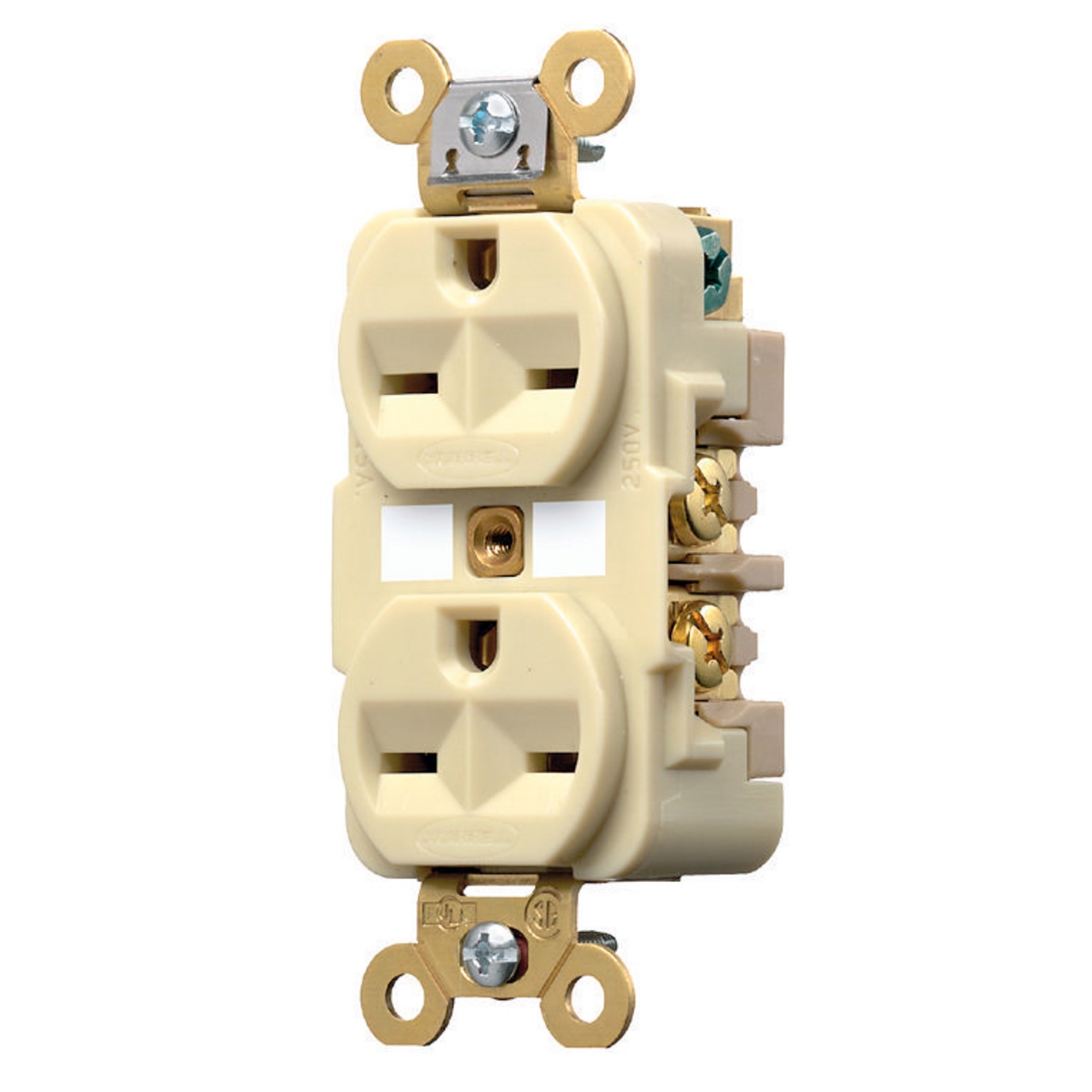

Hubbell HBL5662I Straight Blade Receptacle
Part Number # HBL5662I
SKU # 141299
$35.21 / Each
Typical price:$45.50 / Each
Hubbell HBL5662I Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL5662I |
| SKU #: | 141299 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 3.28 in H x 1.65 in W x 1.19 in D, 3.28 x 1.65 x 1.19 in |
| Horsepower: | 1-1/2, 1.5 hp |
| NEMA Rating: | 6-15R, NEMA 6-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Back/Side Wired Screw, Side Wired |
| Type: | 1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Screw Mount, Duplex Extra Heavy Duty Grounding Standard Traditional |
| Color: | Ivory |
| Country of origin: | PR, US |
| Material: | Nylon, Thermoplastic/Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585435589 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$35.21 / Each
Typical price:$45.50 / Each
Quantity:
- Hubbell Wiring Device-Kellems HBL Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Screw Mount, 250 V AC, 15 A, 1.5 hp, 2 Pole, 3 Wires, 6-15R NEMA Rating, Industrial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Thermoplastic/Composite, Ivory, 3.28 x 1.65 x 1.19 in
HBL5662I Item Features
- Deep nylon body design delivers increased impact resistance
- One-piece brass integral ground strap
HBL5662I Standards
RoHS Compliant|CSA C22.2 No. 42 File No. 285|Federal Specification WC596|NEMA WD1/WD5/WD6|UL 498 File No. E2186SKU #141299Part Number #HBL5662IUNSPSC39121406UPC00783585435589
