Part Number # HBL5865VY
SKU # 18667
Image Disclaimers Message
Brand: Hubbell
HBL5865VY

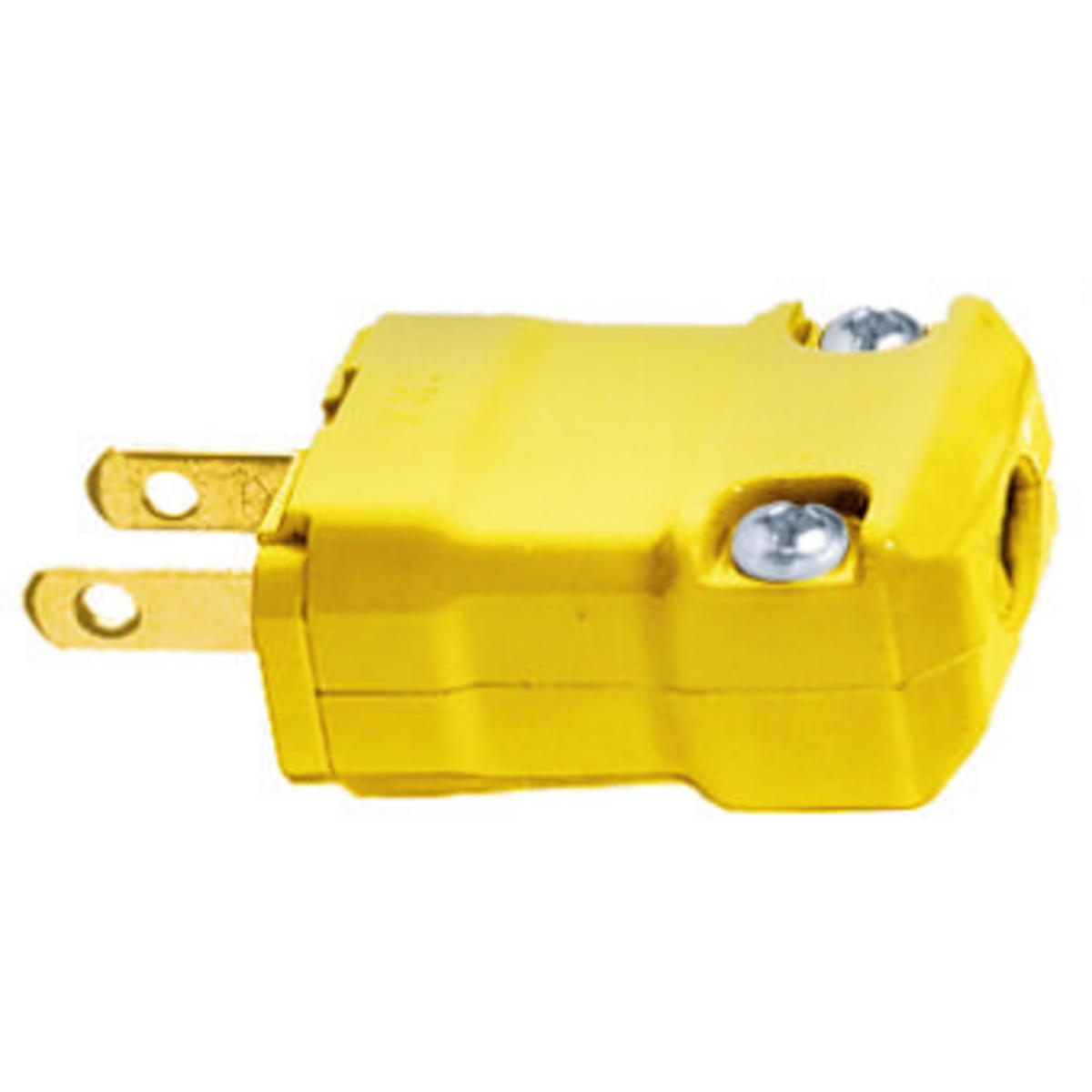

Hubbell HBL5865VY Straight Blade Plug
Part Number # HBL5865VY
SKU # 18667
$12.07 / Each
Typical price:$15.60 / Each
Hubbell HBL5865VY Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL5865VY |
| SKU #: | 18667 |
| Amperage Rating: | 15, 15 A |
| Cord Diameter: | 0.218 to 0.385, 0.218 to 0.385 in |
| Dimensions: | 1-11/16 in L x 1-1/4 in W x 7/8 in H, 1.68 x 1.25 x 0.88, 1.68 x 1.25 x 0.88 in |
| Enclosure: | IP20 |
| Horsepower: | 1/2, 1/2 hp |
| NEMA Rating: | 1-15P, NEMA 1-15P |
| Number of Poles: | 2 |
| Number of Wires: | 2, 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Grounding Male Portable Standard, 1-Phase Grounding Male Portable Standard Cord Mount |
| Color: | Yellow |
| Country of origin: | PR, US |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585013060 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$12.07 / Each
Typical price:$15.60 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL5865VY, Straight Blade Plug, 1-Phase Grounding Male Portable Standard Cord Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 2 Wires, 1-15P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.218 to 0.385 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Yellow, 1.68 x 1.25 x 0.88 in Dimensions
HBL5865VY Application
Dry Location and Indoor ApplicationsHBL5865VY Item Features
- Hinged one piece body design for easy assembly
- Two captive multiple drive assembly screws
- Powerful cord grips prevent conductor slippage and strain
- Non-polarized blades
HBL5865VY Standards
UL 498 File No. E1706 Listed|UL 94 V-2 Flammability Rating|CSA C22.2 File No. 42, 280|NEMA WD1/WD5/WD6|RoHS CompliantSKU #18667Part Number #HBL5865VYUNSPSC39121402UPC00783585013060
