HBL5869VY

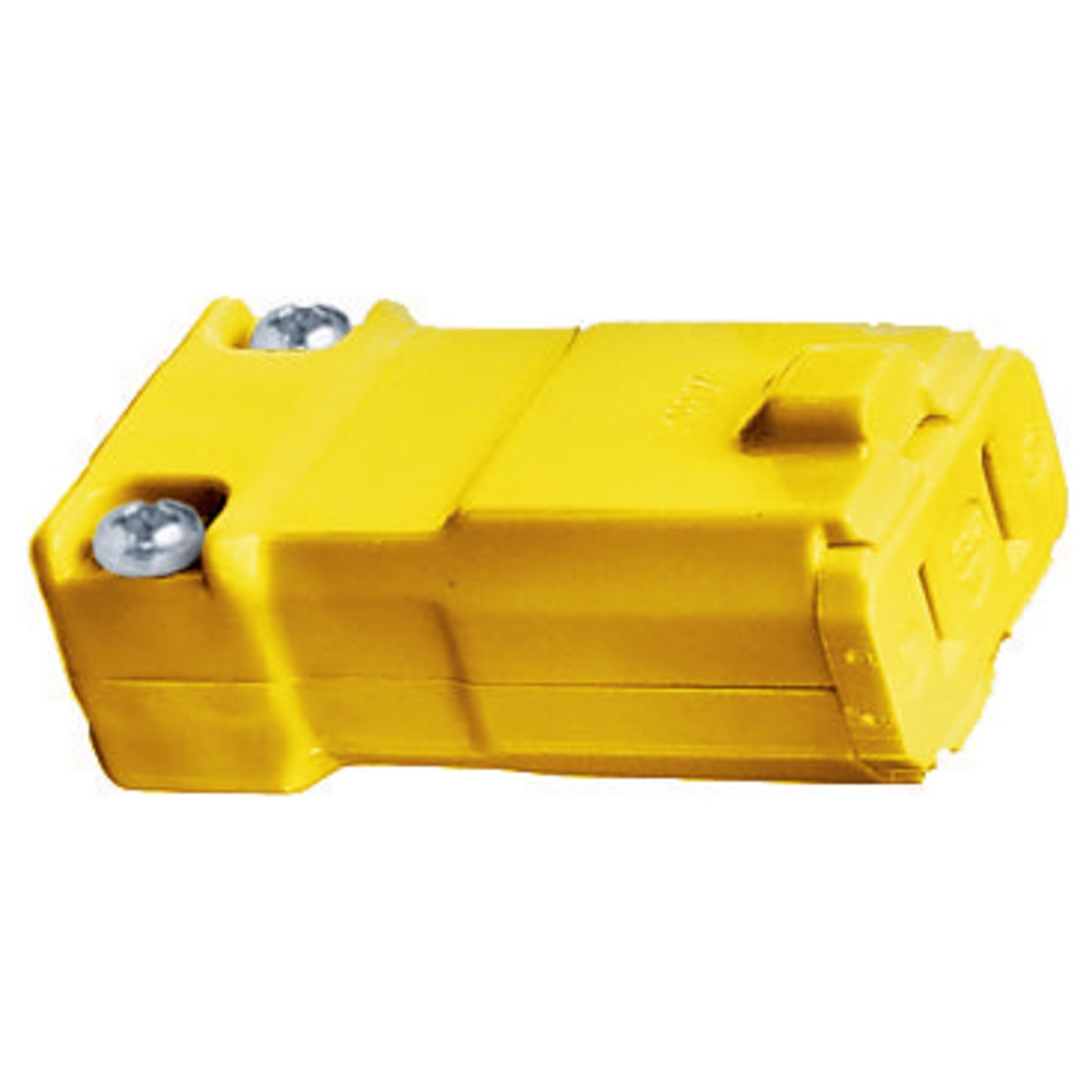

Hubbell HBL5869VY Valise Straight Blade Connector
Part Number # HBL5869VY
SKU # 2424401
$19.71 / Each
Typical price:$25.50 / Each
Hubbell HBL5869VY Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL5869VY |
| SKU #: | 2424401 |
| Amperage Rating: | 15 A |
| Cord Diameter: | 0.218 to 0.385 in |
| Dimensions: | 2.38 x 1.25 x 0.88 in |
| Enclosure: | IP20 |
| Horsepower: | 1/2 hp |
| NEMA Rating: | 1-15R |
| Number of Poles: | 2 |
| Number of Wires: | 2 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | Female Insulated Non-Grounding Cord Mount |
| Color: | Yellow |
| Country of origin: | PR, US |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585013237 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$19.71 / Each
Typical price:$25.50 / Each
Quantity:
- Hubbell Wiring Device-Kellems Valise Straight Blade Connector, Female Insulated Non-Grounding Cord Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 2 Wires, 1-15R NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.218 to 0.385 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Yellow, 2.38 x 1.25 x 0.88 in
HBL5869VY Item Features
- Hinged one piece body design for easy assembly
- Two captive multiple drive assembly screws
- Powerful cord grips prevent conductor slippage and strain
HBL5869VY Standards
UL 498, File No. E1706 Listed|UL 94-HB Flammability Rating|CSA C22.2 No. 42, 280|NEMA WD1/WD5|RoHS CompliantSKU #2424401Part Number #HBL5869VYUNSPSC39121421UPC00783585013237
