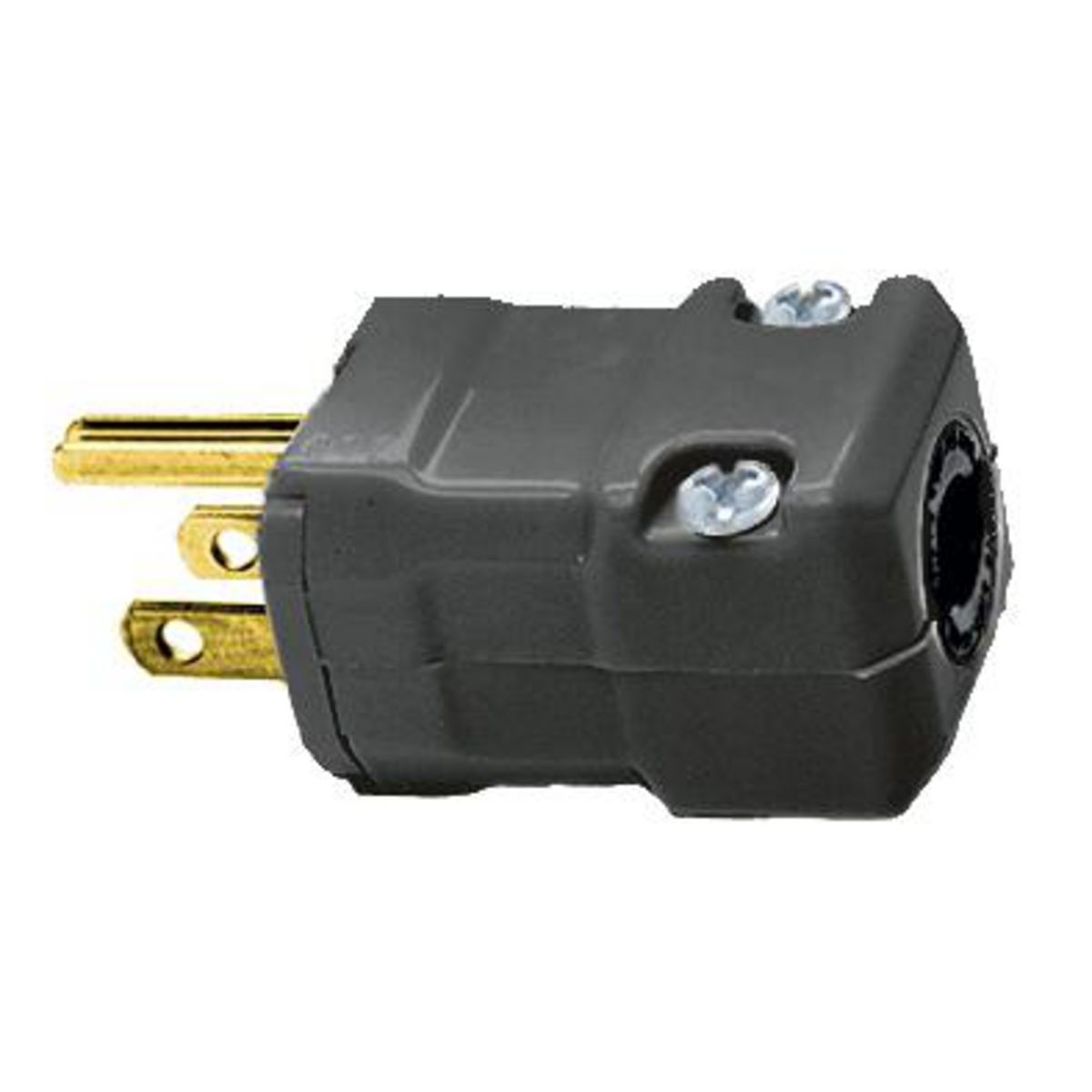

Hubbell HBL5965VBLK Straight Blade Plug
Image Disclaimers Message
Hubbell HBL5965VBLK Straight Blade Plug
Hubbell HBL5965VBLK Straight Blade Plug
Part #:HBL5965VBLK
SKU #: 1947781
Key Features
Part #:HBL5965VBLK
SKU #: 1947781
Brand: Hubbell
Amperage Rating: 15, 15 A
Cord Diameter: 0.22 to 0.66, 0.22 to 0.66 in
Dimensions: 1-7/8 in L x 1-1/4 in W x 1-1/8 in H, 1.87 x 1.12 x 1.87 in
Enclosure: IP20
Horsepower: 2, 2 hp
- Hinged one piece body design for easy assembly
- Powerful, off setting cord grips clamp on individual conductors
- Assembly screws are captive and will not fall OUT while wiring
- Noryl (polyphenylene oxide) cord clamp material
- 0.06 in brass contact blades
- 0.04 in brass ground contact blade
- Steel (copper finish) terminal screw
- Steel (green finish) ground screw
- Withstands 2000 VAC dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Terminals identified in accordance with UL 498 (brass, white, green)
- 18 to 14 AWG solid or stranded copper conductor terminal accommodation
- Ratings are a permanent part of the device product identification
- UL 94 V-2 flammability rating
Hubbell HBL5965VBLK Straight Blade Plug
Wiring Device-Kellems Valise Straight Blade Plug, 1-Phase Grounding Male Portable Standard Cord Mount, 125 VAC, 15 A, 2 hp, 2 Pole, 3 Wires, 5-15P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.22 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Black, 1.87 x 1.12 x 1.87 in
Additional Description: HUBW-HBL5965VBLK VALISE PLUG, 15A 125V, 5-15P, BK 5-15P
Catalog Description: Straight Blade Devices, Male Plug, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Black, Single Pack.
